ZJR-350 Cosmetics Emulsifying Small Cosmetic Electric Hand Paint Mixer

ZJR-350 Cosmetics Emulsifying Small Cosmetic Electric Hand Paint Mixer

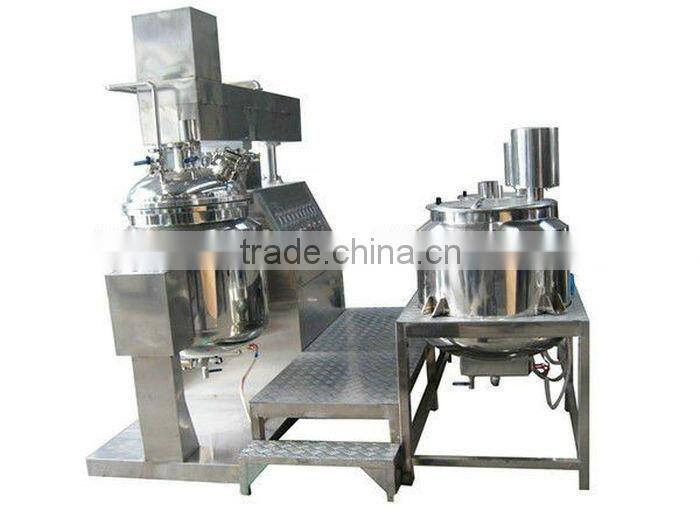

Introduction

The pot cover takes the form of auto-move-up-and-down. The material in water pot and oil pot is sucked into emulsifying pot in vacuum by transmission pipes. The emulsifying pot is designed to be titted over in case to dump products. The material can be heated by electrical heater with help of heat-conductive medium it can also heated bygasi. The heat temp, can be set and automatically controlled.Material cooling is available. It is easy to operate. There is temperature- keeping sheet betweer inner and out sheath Different stirring modes can be used simultaneously or individually. All the processes of crushing, emulsifying, mixing,stirring and dispersing can be accomplished within a short time. The area touching working material is made of stainless steel (Commonly used 304, medical 316L ) , With innter surface polished, the vacuum stirring equipment meets the need of hygiene and are manufactured in accordance with GMP standard. It is best for the production of ointment,cream,etc.lotion making machine

Working Process

The materials are heated and mixed in water pot and oil pot to be fully reacted. Sucked into emulsifying pot by vacuum pump, the materials are stirred by both the center blade and side scraper, which works on the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, folded. Then, the materials are sent to the cut-off mixing until where they are finally crushed into small pellets of 200μm~2μm. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from materiallotion making machine.

Feature

• Mixing oil and water phases materials in high speed to get perfect emulsion product of good quality.
• Machine consists of vacuum-resistant vessel with jacket for heating and cooling. Equipped with high speed homogenizer, scraping agitator, vacuum pump, and hydraulic pump for lifting, heating & cooling system.
• With vacuum pump to take the air bubbles out of mixed product, and extend the time of storage.
• Scraping unit is with moveable teflon scrapers to scrape off the materials on the tank wall and the anchor to move the materials to the center area to get better blending and mixing. The teflon scrapers are maintained manually and easily without any tool.
• Our vacuum emulsifying equipment equipped with heating & cooling system which simplifies the processing. Within this same equipment, you can do from heating-melting-emulsifying-air bubble reduction(by vacuum)-cooling without changing vessels, it saves lot of labor and time for your production.
• All contacted parts of equipments are SUS316L,the product homogenized in vacuum and close vessel can be sanitary and high quality.
• The measuring of raw materials, the recording of temperature for heating, melting, emulsifying, cooling, and the change of mixing speed, and the vacuum suction can be controlled.

Application

• Cosmetic Industry: Cream, Lotion, Lipstick, Shampoo;
• Pharmaceutical Industry: Ointment, Syrup, Injection;
• Food Industry: Mayonnaise, Dressing, Jam, Butter, Margarine;
• Chemical Industry: Polyester, Synthetic Fiber.

Technial parameters

Emulsifying Rack (Length X Width X Height ) :2000 X 1335 X 27500M

Water boiler and Oil boiler Rack (Length X Width X Height) : 2000 X 868 X 1650M

Table (Length X Width X Height ) : 1800 X 700M/2000 X 750M

Overall ( Length X Width X Height) :2950 X 2720 X (2850-3850) M

Components

Vacuum Emulsifying Mixer Series that is include: Emulsification boiler (fluctuating nanhead, overturn boiler) , water boiler, oil water, vacuum set, heating and temperature control systems, cooling systems, electric machinery control systems, ect.

Pictures

Trade

MOQ: 1 set

Packaging: Wooden cases or container for sea freight or according to the clients’ requirements.

Shipping: By sea, by air, express, according to customer's requirement.

Payment Term: L/C, T/T

Lead Time: 30 days after payment

Our Service

Product Service

1. The machines' quality that we sold will be guaranteed for 1 year.
2. We will give you a long time technology supply.
3. We can also supply you training process, so your engineers can fit and debug machines by themselves.

Company Service

Our company has a long history for almost 10 years, the engineers in our factory have excellent skills for making the machines, all the machines are made of high-quality parts, the after-sale services are perfectly.

Company

Our company is a professional mechanical equipment manufacturer,is located in the mechanical base-- Wuxi.The transportation is very convenient,environment and location are richly endowed. Our company based on the technology development,adopt international advanced technology,accumulate rich technical force,use scientific management system,advanced production facility,detection means of perfection,fine after-service,making our products spread all over China and have opened up the worldwide market.

Our products including Vacuum Emulsifying Mixer,Reactor, Water Treatment Equipment,Storage Tank, Silica Gel Filling and Sealing Machine, Filling and Capping Machine,all kinds of metal, plastic, composite tube Filing and Stealing Machine, Lipstick Machine and others automatic production lines. Machinery and Equipment mainly use in chemical,pharmaceutical,cosmetic and food industries.
