Plastic Soft Cosmatic Tube Filling And Sealing Machine

Plastic Soft Cosmatic Tube Filling And Sealing Machine

Introduction

Tube filling and sealing machine made of stainless steel, the working process control: On the tube, 10-station automatic rotation, quantitative filling, automatic standard, cutting, heat sealing, cut tail, finished exit. All work using the full cylinder stroke control, easy to adjust filling volume, the filling speed can be adjusted. It applies to all kinds of composite hose filling, sealing, date printing, cut the tail, sealing neat appearance, sealing strong, high accuracy, good stability. Depending on the material optional: Hopper heating systems, anti-drawing filing head.

Advantage

The machine can automatically feed tube, orientate eye marks and is used for filling cream (paste)-like and liquid-like materials into plastic tube or plastic aluminum laminated tube and then sealing them, pressing date or producing numbers on the end of the tube and cutting the end. This machine is widely used in cosmetic, medicine and food industries.

The Main Technical Parameters

• Filling volume : 5-60ml, 30-120ml, 40-300ml, 60-250ml (optionally )
• Filling accuracy : ± 1.5%
• Production capacity : 45 pcs/min (according to the material )
• Gas source > 0.5Mpa> 0. 14M ³/min
• Voltage : 220V 50HZ
• Power : 3.5KW
• Counter : 0-999999PCS
• Dimension : 1200 * 930 * 1600mm
• Weight : 450KG

Application

• Soft tube filling sealing machine for cream and ointment
• Can filling capping machine for cream and ointment
• Glasses liquid filling sealing machine
• Plastic bag filling sealing machine
• Box  packing machine
• Cookeries cup filling sealing machine
• Coffee cup, sugar cup, tea cup filling sealing machine
• Many other packing equipment for cosmetics, foods, cigarette, chemical, medical industries are available

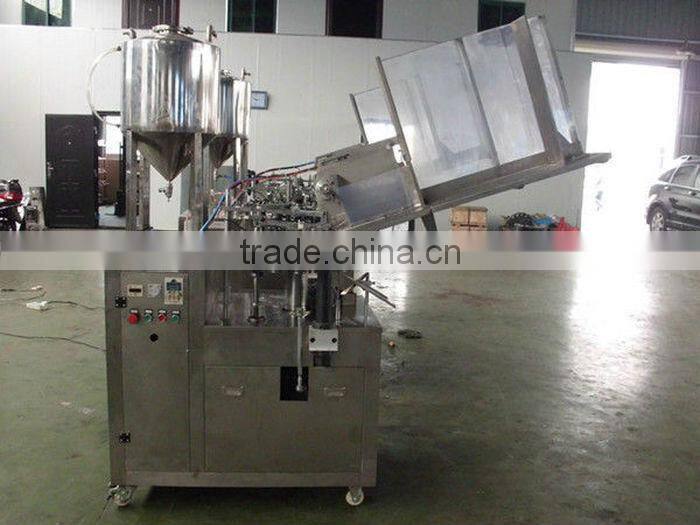

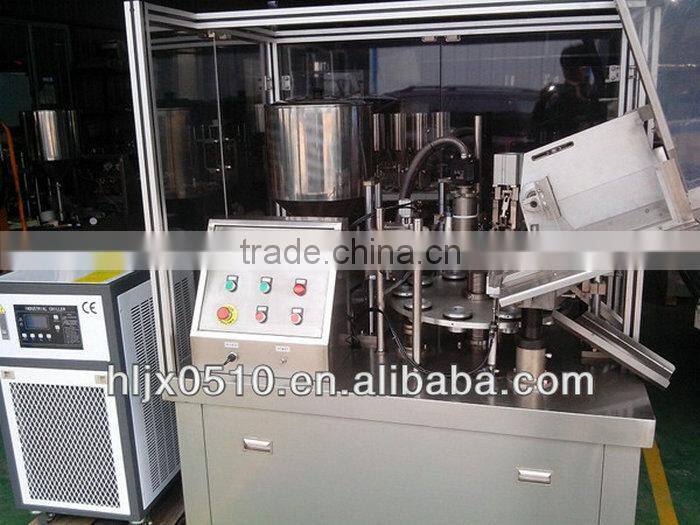

Pictures

Trade

MOQ: 1 set  Cosmetic Tube Sealing Machine

Packaging: Wooden cases or container for sea freight or according to the clients’ requirements.

Shipping: By sea, by air, express, according to customer's requirement.

Payment Term: L/C, T/T

Lead Time: 30 days after payment

Our Service

• One year guarantee for whole machine except wearing parts
• 24 hours technical supply by e-mail
• Calling or door-to-door service
• Long time replace the machine parts
• Use-friendly English software, operation manual and detail videos
• Supply for training process, so your engineers can fit and debug machines by themselves.

Company

Our company is a professional mechanical equipment manufacturer,is located in the mechanical base-- Wuxi.The transportation is very convenient,environment and location are richly endowed. Our company based on the technology development,adopt international advanced technology,accumulate rich technical force,use scientific management system,advanced production facility,detection means of perfection,fine after-service,making our products spread all over China and have opened up the worldwide market.

Our products including Vacuum Emulsifying Mixer,Reactor, Water Treatment Equipment,Storage Tank, Silica Gel Filling and Sealing Machine, Filling and Capping Machine,all kinds of metal, plastic, composite tube Filing and Stealing Machine, Lipstick Machine and others automatic production lines. Machinery and Equipment mainly use in chemical,pharmaceutical,cosmetic and food industries.
