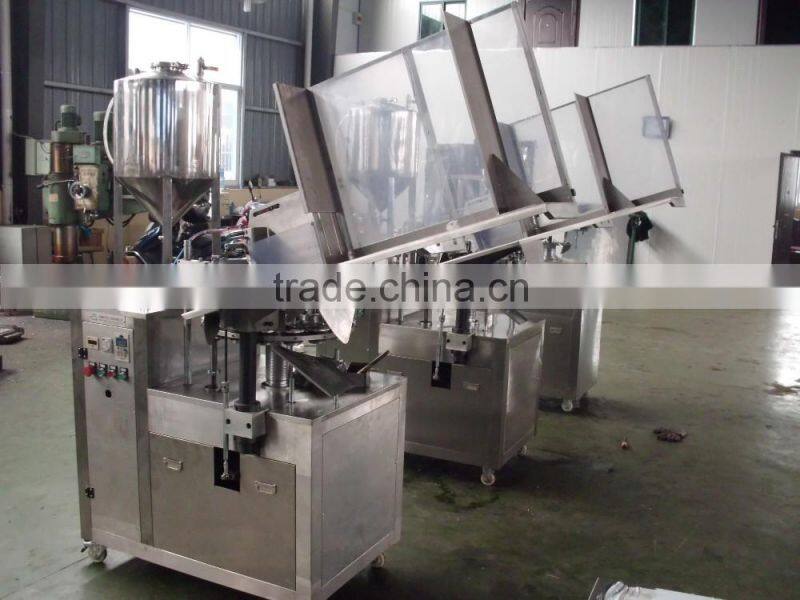

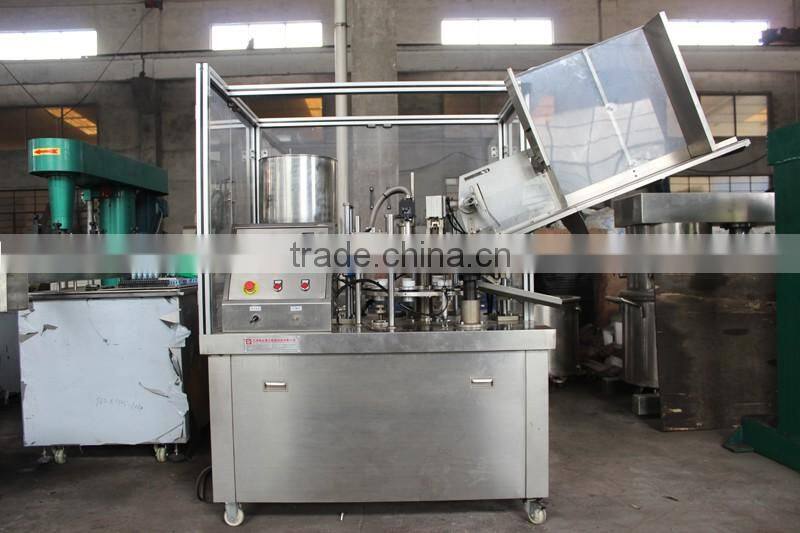

Automatic Tube Filling and Sealing Machine

Specification

Automatic soft tube filling and sealing machine

This machine is suitable for plastic tube, aluminum-plastic composite tube ,

Automatically loading the tubes,beach color marking, filling, sealing, printing batch number ( date ) , cut the tail , out tubes , counting.

The computer program operated by the switch button (or touch screen), PLC control. Sealing Swiss imported hot air and hot air heating system meter high stable form, blowing hot air from the hose wall, thereby melting plastic hose from the outside with a loop water cooling (optional chiller or water cycle), to ensure a beautiful appearance without distortion, beating tooth pattern (stripes, twill) and batch (1-4 group). has sealed a solid, fast, does not damage the sealing portion of the appearance, sealing appearance, neat. filling material contact parts made of all stainless steel processing, can be widely used in cosmetics, medicine, toothpaste, food, oil, chemical and other industries.

Main technical parameters:

Filling volume :  5-60ml ,30-120ml ,40-300ml ,60-250ml ( optionally )

Filling accuracy :  ± 1.5%

Production capacity : 45 pcs/min ( according to the material )

Gas source > 0.5Mpa> 0. 14M ³/min

Voltage :  220V 50HZ

Power :  3.5KW

Counter :  0-999999PCS

Dimension :  1200 × 930 × 1600mm

Weight :  450KG

1:Warranty time: 1year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.

2:Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.

3:Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.

4:Maintenance services: any malfunction happened, once you contact us, we will reply you within 24 hours except the special reasons.

5:Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.

6:Certificate services: we can provide related certificates to customers freely according to the request of customers.

7:Inspection services: you can ask the third party inspection company or your inspector to inspect the products before shipment.
