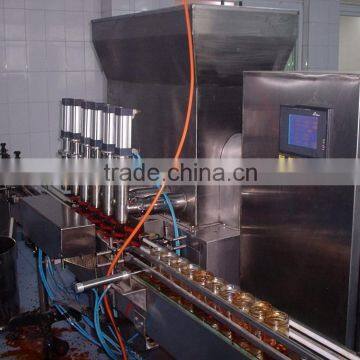

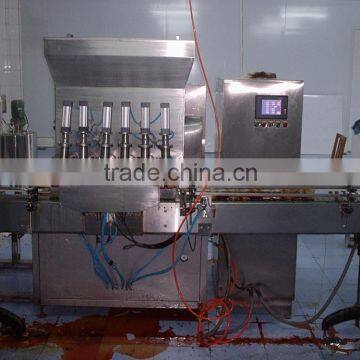

Automatic Liquid filling line
product description:
The system is composed of Filling Machine, Screw-cap Machine, Transportation Line, Labeling Machine and Auto-control System.
It adopts the cylinder axis for fast and accurate filling volume.
Conveyer belt and panel made of stainless steel are durable and clean.
It's easy to change and clean the bottles that have different sizes.
Bottle feeding and positioning are air-controlled.
Speed adjustable motor can change the speed freely.
It is suitable for individual operation and connecting with the production line.
It is noiseless and easy for maintaining.
Bottles that have different sizes can be changed very fast without changing spare parts.
No-bottle-no-filling devices easy for operation.
The volume can be adjusted at one time. This machine has the features of micro-adjustment, exact capacity and few errors.
Parts which will contact with the liquid materials are all made of stainless steel #316.
Simple installation and disassembly, easy cleaning,in compliance with GMP standard.
product features: 1.Colorful touch screen is convenient to control and the operation condition is clear at a glance.
2.During the mechanical tube feeding, the tube is pressed into the holes of working dishes which are stable and reliable. You only need to adjust the accessory when the product is changed for another size.
3.Simultaneous positive pressure and negative pressure dust absorption system with longer cleaning time ensures a thorough cleaning result.
4.The precision of mechanical link system is within 0.2mm.
5.With unique service control, the filling can be adjusted freely by the touch screen.
6.Plug-in type trailing feeding starts from the bottom of the tube to prevent air from mixing with cream and reduce the possibility of product oxidation. Thus the quality of product can be ensured.
7.The machine can be rapidly heated.
8.Quick-replace type multi-function nip may perform vertical, circular and abnormal end sealing. The number of batch can be printed on both single and double sides and is convenient to change.
9.The smooth surface of machine has no dead angle and is easy to clean. The materials completely contact with the stainless steel and comply with GMP standard.
main technical parameter:
Filling volume :5-500ml
Filling speed:10-100 bottles/min
Filling error:≤±1%
Power:about 10KW
Air-pressure:4-5kg/cm³
Bottle Dia:Φ30-100mm
application:
wooden cases or container for sea freight or accoding to the clients requirements.
1:Warranty time: 1year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
2:Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3:Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4:Maintenance services: any malfunction happened, once you contact us, we will reply you within 24 hours except the special reasons.
5:Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
6:Certificate services: we can provide related certificates to customers freely according to the request of customers.
7:Inspection services: you can ask the third party inspection company or your inspector to inspect the products before shipment.
1.The warranty is one year.
2. Long time technology supply and replace the machine parts.
3. Supply for training process, so your engineers can fit and debug machines by themselves.
