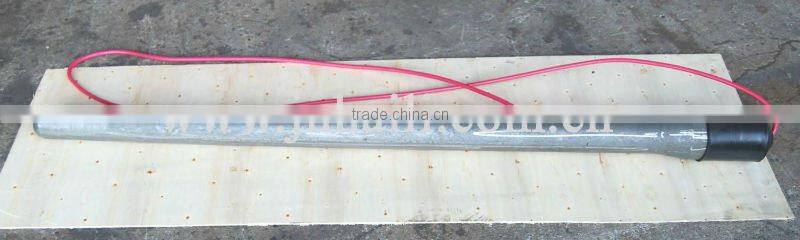

Help Center2''X60'' HSCI Solid Anode for Cathodic Protection
Related Products
-
Cost Effective High Silicon Cast Iron Anode for Cathodic ProtectionNegotiableMOQ: 50 Pieces -
High Silicon Cast Iron Rodlik Solid AnodeNegotiableMOQ: 50 Pieces
-
High Silicon Casting Iron Sacrificial Anode Cathodic Protection SystemsUS$ 40 - 200MOQ: 50 Pieces
-
Cost Effective 2''x60'' Single-end HSCI Cathodic Protection AnodeUS$ 30 - 200MOQ: 1 Piece
-
2''x60'' Double-ended HSCI Solid ElectrodeUS$ 10 - 200MOQ: 50 Pieces
Specifications
HSCI Solid Anode for Cathodic Protection1.By chill cast
2.Compact crystal structure
3.Conform to ASTM A518 & BS 1591
HSCI Solid Anode for Cathodic Protection
1.By chill cast in metal mould
2.Compact crystal structure and high density
3.Conform to ASTM A518 & BS 1591
HSCI Solid Cathodic Protection Anode
1/Specification:
Model |
Anode Dia. mm (in) |
Head Dia. mm (in)
|
Length mm (in) |
Nominal Area m2 (ft2) |
Nominal Weight kg (lb) |
HL-SSP-20303 |
50.8.0 (2.0) |
75.0 (3.0) |
1524 (60) |
0.267(2.87) |
21.4 (47.18) |
The dimensions above are nominal. HSCI solid anodes can be customized in accordance with client's drawings and requirements.
2/Chemical Composition(ASTM A 518M Gr3):
| Element | Content % |
| Silicon | 14.20-14.75 |
| Chromium | 3.25-5.00 |
| Manganese | 1.50 max |
| Carbon | 0.70-1.10 |
| Copper | 0.50 max |
| Molybdenum | 0.20 max |
| Iron | Remainder |
The chemical composition of HSCI solid anodes can also be made as per ASTM A 518M Gr1, BS 1591:1975 Si 14 or SiCr 14 4, etc.
3/Application:
HSCI solid rod stick anodes work well as deep well anodes for cathodic protection of offshore platforms, underground steel oil tubes, underground cables, subsea pipelines, etc. They have high corrosion resistant capacity and high electrical conductivity, fully conforming to American standard ASTM A 518M-99 and Chinese national standard GB/T 8491-2009.
