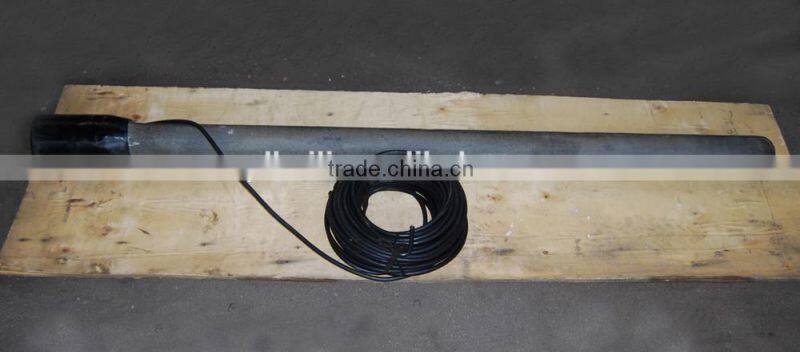

Help CenterAnotec Type 1.5''x60'' High Silicon Iron Solid Anode
Related Products
-
HSCI Solid Rod Stick AnodeNegotiableMOQ: 50 Pieces -
Double-ended HSCI Solid AnodeUS$ 38 - 160MOQ: 50 Pieces
-
High Silicon Cast Iron Double-ended Rodlike AnodeNegotiableMOQ: 50 Pieces
-
3''X60'' HSCI Rod Stick Anode - Double EndsNegotiableMOQ: 30 Pieces
-
1.5''X60'' HSCI Solid Rod Stick AnodeNegotiableMOQ: 50 Pieces
1. HSI Anodes Specification:
1) Anodes Dimensions:
Model |
Anode Dia. mm (in) |
Head Dia. mm (in) |
Length mm (in) |
Nominal Area m2 (ft2) |
Nominal Weight kg (lb) |
HL-SSP-15253 |
38.1 (1.5) |
63.5 (2.5) |
1524 (60) |
0.204(2.20) |
13.00(28.66) |
The HSI Anode Products can also be customized in accordance with your drawings and requirements.
2) Anodes Chemical Composition:
ASTM A 518M Gr3
| Element | Weight% |
| Carbon | 0.70-1.10 |
| Manganese | 1.50,Max |
| Silicon | 14.20-14.75 |
| Chromium | 3.25-5.00 |
| Molybdenum | 0.20,Max |
| Copper | 0.50,Max |
2. Anodes' Application:
HSCI Solid Stick Anode works well for Impressed Current Cathodic Protection of offshore platform, underground steel oil tube, underground cables, subsea pipelines, etc. The chemistry of HSCI for impressed current anodes is well established in Standards, and it results in superior corrosion resistant capacity for mechanical properties.
3.HSI Rod Anodes Introduction:

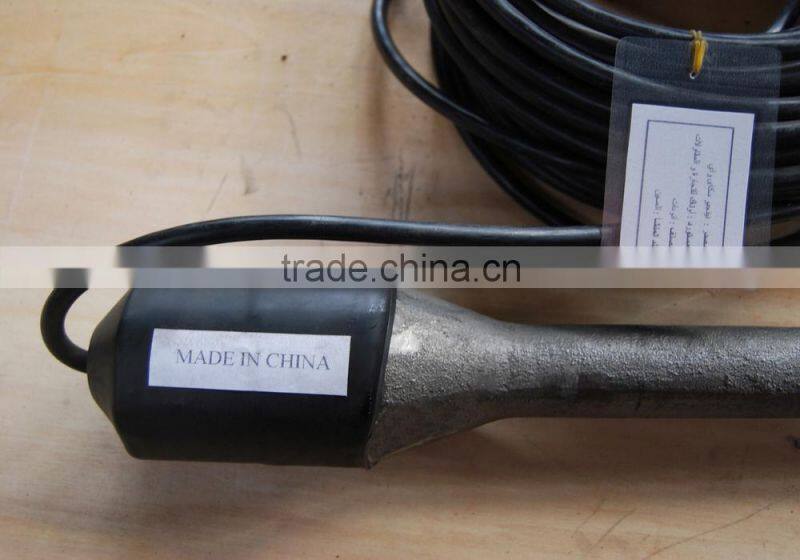

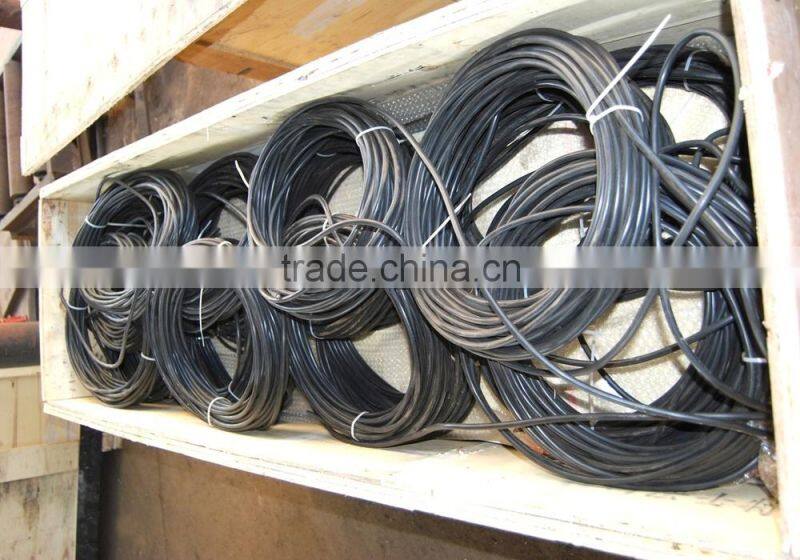

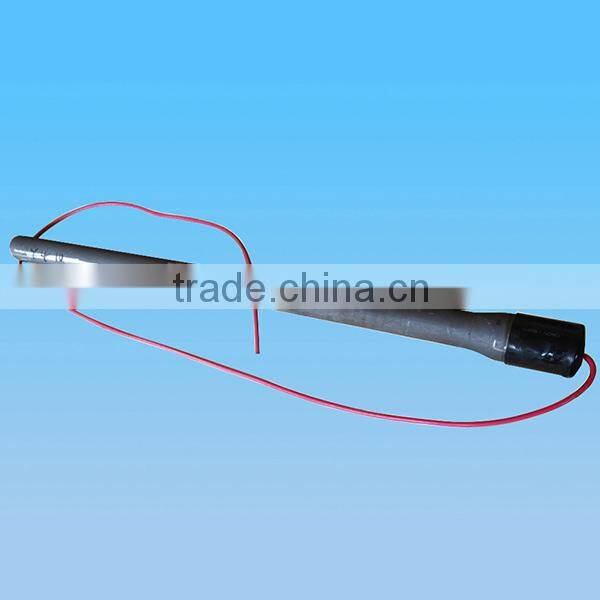

Jiaonan Haili Valve Casting Co., Ltd. supplies Single-ended HSCI Stick Anode and Double-ended HSCI Stick Anode, based upon the shape of our stick anode. For cable connection means, we have Stick Anode with embedded seamless pipe, with embedded bolt and with caulking lead. Depending on customer's requirements, we can supply HSCI Anode installed with cable or otherwise.

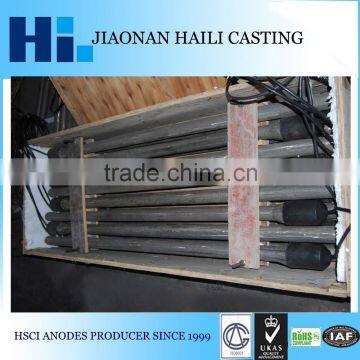

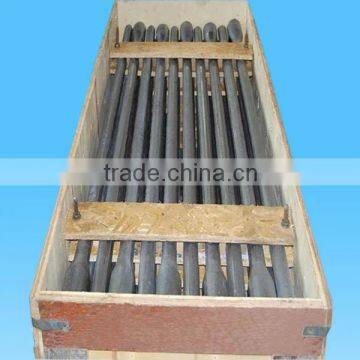

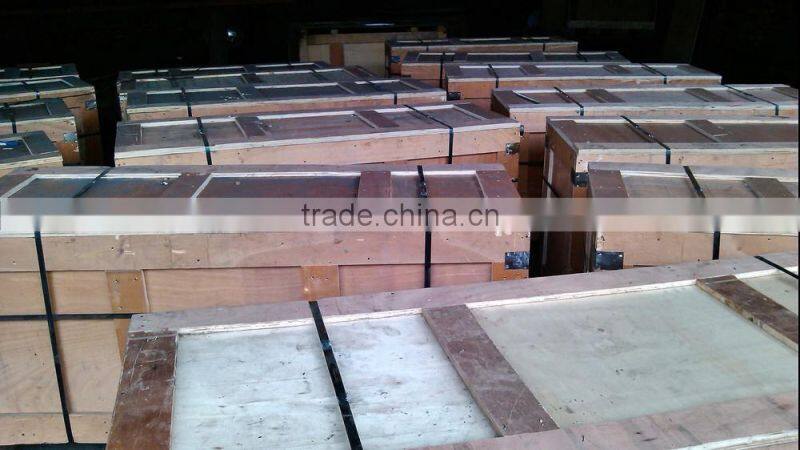

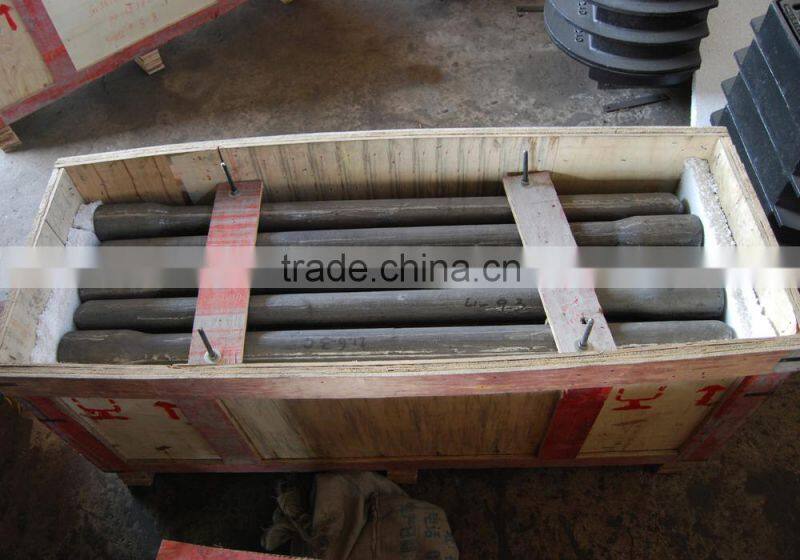

With export experience of over 14 years, we provide our customers with the most suitable seaworthy plywooden crates with best quality and reasonable price.
For conventional high silicon cast iron anodes, we can offer sample to our client for free. Since we have our own R&D department, we can customize irregular high silicon cast iron anodes as per client's specific requirements and drawings. We have Warranty Certificate for each batch of your ordered HSCI anodes. Our After-sale team is always at the service for the questions after our customer clear the anodes.
Jiaonan Haili Valve Casting Co., Ltd. (Haili) established in 2000, is an export-oriented machinery manufacturer. Haili was certified by ISO9001:2008 in 2011. The company is located in a beautiful seaside city - Huangdao district of Qingdao City with convenient transport. The main products include high silicon casting iron anodes, machine parts, train parts and so on. Its annual output is beyond 1500 tons, and 90% of the products are exported to America, Europe, Africa, Middle East and all around Asia. The company has almost 100 employees, including 10 senior technicians and 2 senior engineers. Haili sincerely expects to cooperate with customers from all around the world to achieve mutual benefits and create a glorious future together.
