suction hose
- 500000 Meter / Meters per Month
- Tianjin(China)
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | PISKER | Model Number: | din sae r1 r2 4sp 4sh |
Product Description
Expansion Rubber Hose---Jizhou Parker
Structure of Expansion Rubber Hose
Inner tube: Oil resistant synthetic rubber
Reinforcement: Two braided high tensile steel wire
Cover : Oil and weather resistant synthetic rubber
Temperature: From-40°C to +100°C
Application of Expansion Rubber Hose
water (heat, cold)
oil (fuel, diesel, kerosene, oil, etc.)
gases (vapors, toxic gases)
chemicals (acid and other chemical solution) delivery program.
Expansion Rubber Hose specification :
ID | OD | WP | BP | ||||
mm | inch | mm | inch | Mpa | bar | Mpa | bar |
152 | 6" | 182 | 7-1/4" | 1.2 | 12 | 2.4 | 24 |
203 | 8" | 233 | 9-1/5" | 1.2 | 12 | 2.4 | 24 |
254 | 10" | 284 | 11-1/5" | 1 | 10 | 2 | 20 |
304 | 12" | 340 | 13-2/5" | 1 | 10 | 2 | 20 |
350 | 14" | 390 | 15-2/5" | 1 | 10 | 2 | 20 |
450 | 18" | 486 | 19-1/5" | 0.7 | 7 | 1.5 | 15 |
550 | 22" | 590 | 23-3/5" | 0.7 | 7 | 1.5 | 15 |
600 | 24" | 640 | 25-3/5" | 0.7 | 7 | 1.5 | 15 |
700 | 28" | 750 | 29-3/5" | 0.7 | 7 | 1.5 | 15 |
800 | 32" | 850 | 33-1/2" | 0.5 | 5 | 1 | 10 |
1000 | 40" | 1050 | 41-1/2" | 0.5 | 5 | 1 | 10 |
1200 | 48" | 1250 | 49-1/5" | 0.5 | 5 | 1 | 10 |
1300 | 52" | 1350 | 53-1/5" | 0.5 | 5 | 1 | 10 |
Main hydraulic hose products

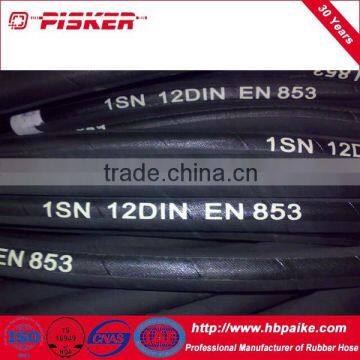

Wire braided hydraulic hose | 1.SAE 100R1AT/ DIN EN853 1SN 2.SAE 100R2AT/ DIN EN853 2SN 3.SAE R5 4.SAE R16 |
Wire spiraled hydraulic hose | 1.DIN 20023 EN856 4SP 2.DIN 20023 EN856 4SH 3.SAE 100 R12 4.SAE 100 R13 |
Fibre braided hydraulic hose | 1.SAE 100R7/EN855 R7 2.SAE 100R8/EN855 R8 3.SAE 100 R3 4.SAE 100 R6 |
Other Rubber hose | 1.SAE 100R14 (Teflon hose) 2.METAL FLEXIBLE HOSE 3.KNITTED ARE HOSE |

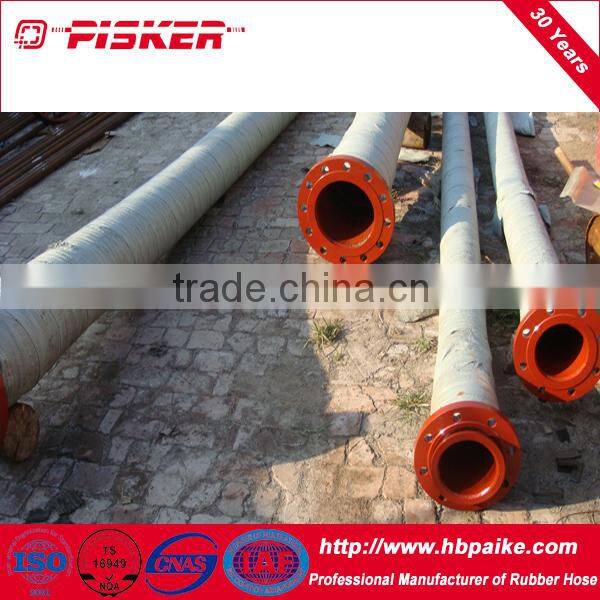

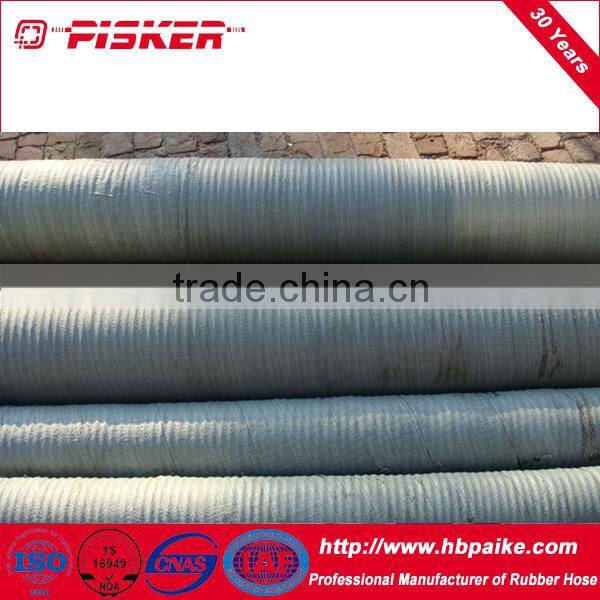

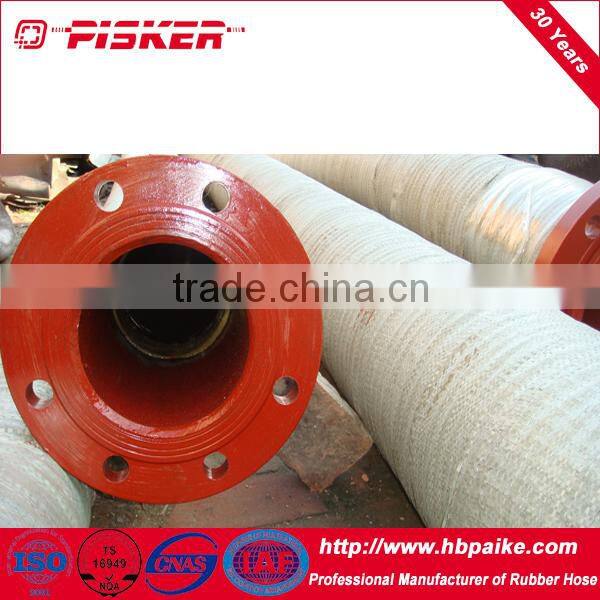

Din Rubber Suction Hose pictues:
Din Rubber Suction Hose test machine
Din Rubber Suction Hose Customers
Din Rubber Suction Hose certification
Din Rubber Suction Hose waiting for shipments
What's more,OEM is availible. We could design hydraulic hoses with different pressures
and temperatures.
Thanks very much, Hope have chance to cooperate with you, Welcome to visit our factory!
Contact me freely!
