314 Stainless Steel Braied PTFE Lined Hose for American market
Construction:
Standard: SAE100 R14
Inner tube: Imported F-205 of Japan Daikin
Cover: SS304 or SS316
Temperature: -60 dgree to +230 degree
Packing: woven bags
PTFE High Pressure Hose Series
Features: These hoses can be covered by various clad materials according to
customersdifferent anti-pressure require ments, so as to satisfy their demand on anti-pressure.
Construction : Extruded PTFE tube with a stainless steel single wire braid cover.
Temperature : -73° C to +260° C
Application : Brake and Clutch hoses. Instrument hoses. Fuel injection hoses. Fire extinguisher lines. Turbocharger oil feed and boost hoses. Any application subjected to high temperatures.
Flexible ptfe hose braided with stainless steel
ptfe hose braided with stainless steel
Tube:PTFE(polytetrafluorethylene)
Reinforcement:one stainless steel braid
Application range:average pressure application with hydraulic fluids within a high temperature
as well as aggressive media
PTFE pipe wrapped stainless steel wire and connection methods:
Operating Instructions
Users shall select types of quick couplings appropriately according to operating requirements and features of joints (including work pressure, medium properties, and flow, temperature, corrosiveness and ambient temperature, quantities and connecting
types of pipes etc.)
ptfe hose braided with stainless steel
PARAMETER OF PEFT HOSE
Size |
ID |
OD |
Operation pressure |
Burst pressure |
Bend radius |
|||||
DN |
INCH |
mm |
mm |
bar |
mpa |
psi |
bar |
mpa |
psi |
mm |
4 |
3/16 |
4.7 |
7.8 |
276 |
27.6 |
4002 |
828 |
82.8 |
12006 |
51 |
6 |
1/4 |
6.3 |
9.5 |
224 |
22.4 |
3248 |
672 |
67.2 |
9744 |
76 |
8 |
5/16 |
7.9 |
11.0 |
207 |
20.7 |
3002 |
621 |
62.1 |
9005 |
101 |
10 |
3/8 |
9.5 |
12.5 |
183 |
18.3 |
2654 |
552 |
55.2 |
8004 |
127 |
13 |
1/2 |
12.8 |
15.8 |
161 |
16.1 |
2335 |
483 |
48.3 |
7004 |
152 |
16 |
5/8 |
16 |
18.9 |
110 |
11.0 |
1595 |
345 |
34.5 |
5003 |
178 |
20 |
3/4 |
19.1 |
23.4 |
103 |
10.3 |
1494 |
310 |
31.0 |
4495 |
203 |
25 |
1 |
25.4 |
29.7 |
80 |
8.0 |
1160 |
241 |
24.1 |
3495 |
305 |

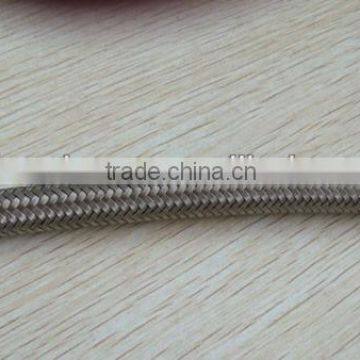

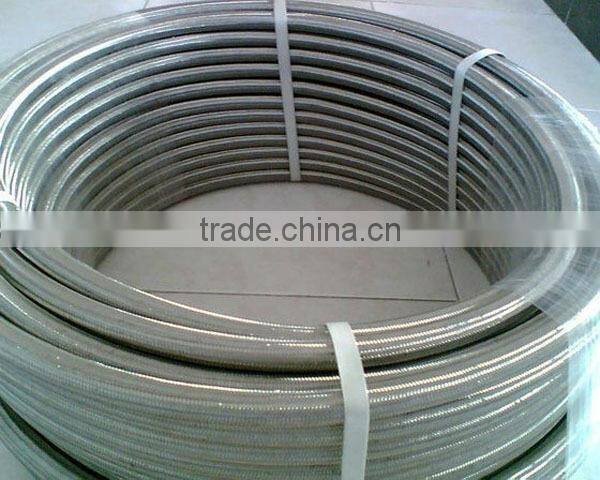

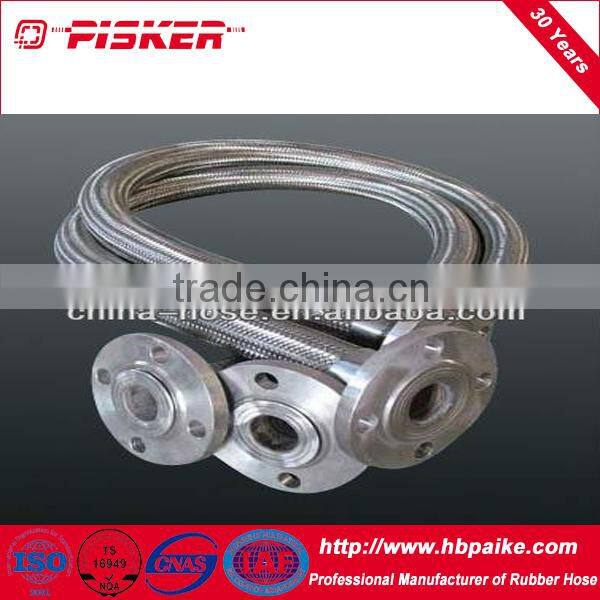

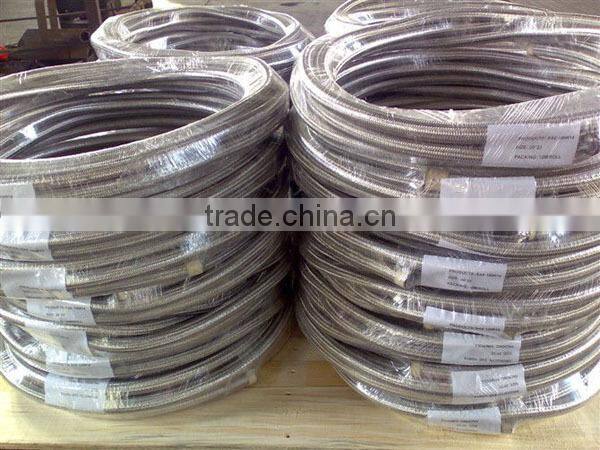

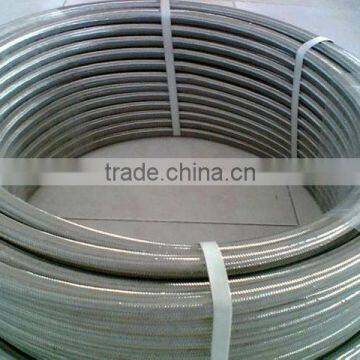

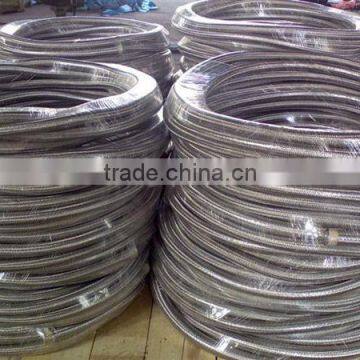

Pictures of PTFE hose
