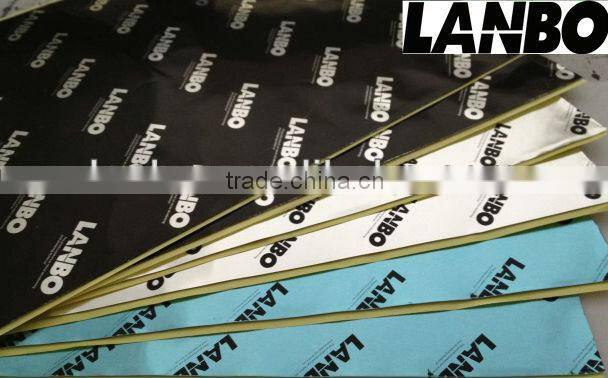

Help CenterBest Car Sound Damping Mat- ZZ-07-can Reduce the Road/engin/wind Noise
Related Products
-
Best Car Sound Damping Mat- ZZ-05W-can Reduce the Road/engin/wind NoiseUS$ 5 - 8MOQ: 1000 Sheets -
Multi Foil Color Choices Car Acoustic Insulation MatUS$ 5 - 8MOQ: 2000 Sheets
-
Noise Liquidator Vibrodamping MasticUS$ 3 - 7MOQ: 480 Barrels
-
High Performance Logo Print Aluminum Pure Butyl Best Self Adhesive Car Sound Deadening MatUS$ 5 - 8MOQ: 2000 Sheets
-
RED-HOT White Butyl +Silver Aluminum Self Adhesive Auto Sound Damping MatUS$ 5 - 8MOQ: 2000 Sheets
Specifications
Excellent Self-Adhesive propertyEnvironmental Protection
Good Early Sticky
Flexible And Conformable
OEM service
Description
The Model ZZ- 07 is made of polymer layer based on butyl rubber and aluminum foil outer surface . This material is equipped with self-adhesive glue layer. We are a professional manufacture of the car sound deadening . our products will elimate the bad raw material,and all material are required to pass a quality inspection before warehouse-entry.
Function
The superb flexibility of this material allows for use on complex surfaces while providing the maximum vibration damping for material of this kind and doubles up as a sealant. This material is best suited for areas with low amounts of vibrations. This material is water-proof and once applied provides good defense against corrosion preventing any water and oxygen from coming in contact with chassis.
MORE 23%MUSIC
1, Increase your audio sound pressure level (SPL),Let you get the audio compete
2,Stop rattles and vibrations from speaker and car body.
3,Stop fighting engine rumble,road and exhaust noise and buzzing vehicle parts
4,Stop the heat from engine.
Applications
Cut the material into desired shape with a graver or a scissor.
Remove the release liner from the back and stick it on to the surface of the object, like partitions, ducts, doors, bins, panels
It is also used for building construction, electronic industry, machinery, steel furniture, home appliances noise.
Installation
1.Clean up the mounting surface, like the hood, trunk, floor, (for door and roof , need to remove the door panel, roof panel) with a quick-drying and residue-free solvent. Remove all dust, dirt, oil, moisture etc.
2.Use scissors, knife or die to cut the mat to the desired size and shape before removing the release liner.
Storage Period
Above 500 Days. (The non-flammable materials goods, but not near heat sources to prevent the direct sunlight, so as to avoid deformation. )
Technical specifications
Material Structure: 90% butyl+0.1Aluminum | ||
Size: 460mm*800mm*1.6mm(accept OEM) | ||
Weight: 1.15Kg/pc (weight of double layer bubble ) | ||
PROPERTIES |
Tested Data |
Unit |
Thickness |
1.6 |
M M |
Weight |
1.15 |
KG/pc |
Density |
1.5 |
G/cm3 |
Evaporation |
<=1.5 |
% |
Flammability |
75-80 |
Millimeters/minute |
Heat resistance |
-45°C to +180°C |
°C |
Water Vapour Transmission |
0.012 |
G/M2 KPA |
Smell |
Tasteless |
|
Tensile Strength |
>=21 |
Kpa |
Shear strength |
>=0.5 |
Mpa |
Company Strength
1. We are the manufacturer in the car sound deadener material for over 10 years .
2. We are mainly offer OEM services to the all over world and we have many brands in the world.
3. Our products are exported to Europe Market,South-Asia Area and so on .
4. Supply ability: 10000pc/week
5. Quality control and development department can control the quality and develop new products.
6. Manufacturer can give you a best price and control the quality easily, earlier delivery time!
7.It is our responsibility to meet your needs and efficiently serve you .Your satisfaction is our best reward!Your success is our business!
