Home > Products > LED Panel Light > round/square led flat panel light surface 300mm(Height:20mm)
round/square led flat panel light surface 300mm(Height:20mm)
- 20000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
-
Linear Downlight
-
LED Downlight
-
A Anti-glare Waterproof IP65 led downlight project waterproof spots light 5w 7w 9w 12w downlight
-
A Surface Mounted Led Downlight AC LED Bulb Outdoor Adjustable Led Downlight Lamp Spot Light
-
Dimmable IP65 LED Down Lights (30-300W)
-
Emergency IP65 LED Down Lights (30-300W)
Product Details
| LED Light Source: | SMD 2835 | Warranty(Years): | 3 | Input Voltage(V): | AC110V/220-2040V |
| Lamp Power(W): | 20 | Lamp Luminous Flux(lm): | 1800 | Lamp Luminous Efficiency(lm/w): | 90 |
| Color Temperature(CCT): | Cool White | Working Temperature(℃): | -20, 55 | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum Alloy | IP Rating: | IP65 | Certification: | CCC, CE |
| Model Number: | TD-THA22-20W-220R | Place of Origin: | Guangdong, China | Brand Name: | TD |
Product Description
20w super thin Led Panel downlight Round
Item No | TD-THA22-20W-220R |
Input Voltage | AC110V/200-240V |
Lighting source | SMD 2835 |
Power | 20W |
LED Qty’s | 100 pcs |
Color Temperature | 2700-6500K |
Luminous Flux | 1750-1850LM |
Color | WW,PW/NW, CW |
Material | High Quality Aluminum+PC cover |
Size |
D240MMXH20MM Cutout Size:220MM |
more size and power comsumption available
Power Size
4w Ø105MM XHeight 20MM Cutout Size:90MM
6w Ø120MM XHeight 20MM Cutout Size:105MM
9w Ø145MM XHeight 20MM Cutout Size:130MM
12w Ø175MM XHeight 20MM Cutout Size:165MM
15w Ø200MM XHeight 20MM Cutout Size:180MM
18w Ø220MM XHeight 20MM Cutout Size:205MM
20w 21w Ø240MM XHeight 20MM Cutout Size:220MM
25w -30W Ø300MM XHeight 20MM Cutout Size:280MM
Product Details
Application

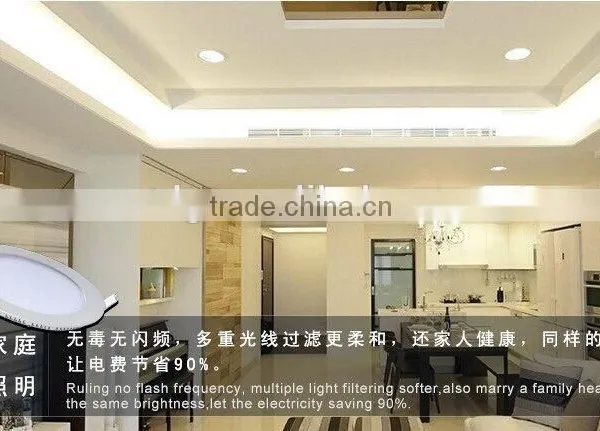

Widely used in home indoor lighting, and building decorative lighting projects.
Such as : kitchen, corridor, hotels, clubs, meeting rooms, offices, hospitals, schools, commercial lighting, shopping malls, exhibition stands, museum, library, super markets and so on.
