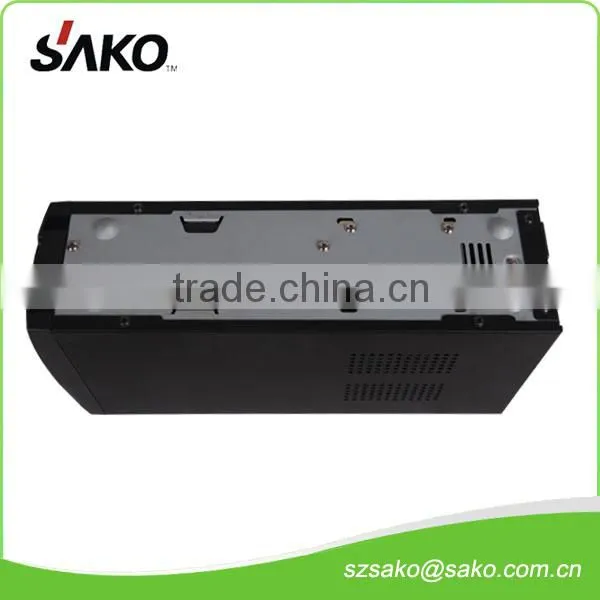

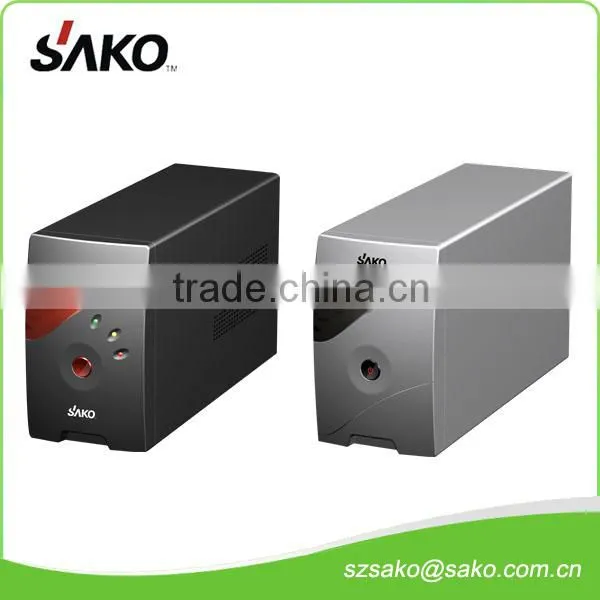

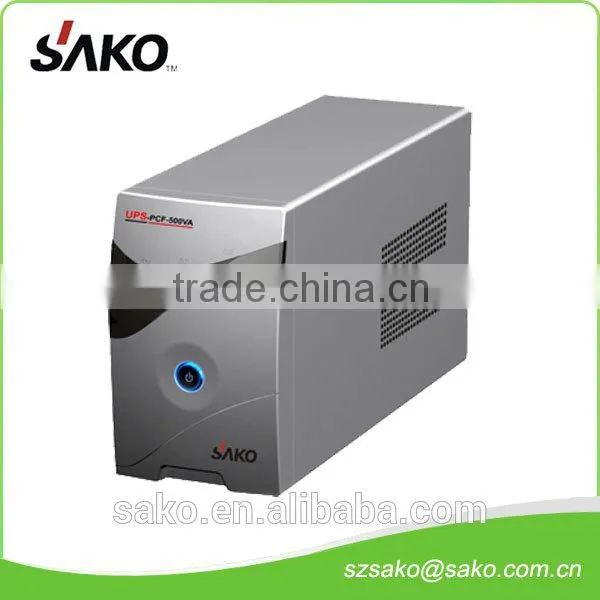

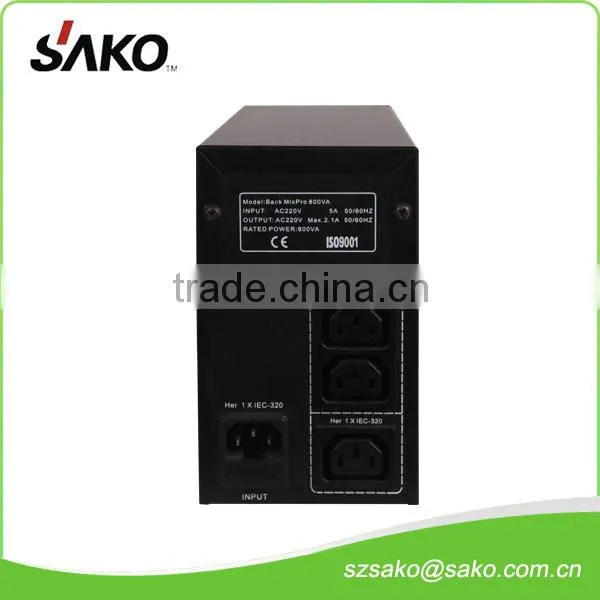

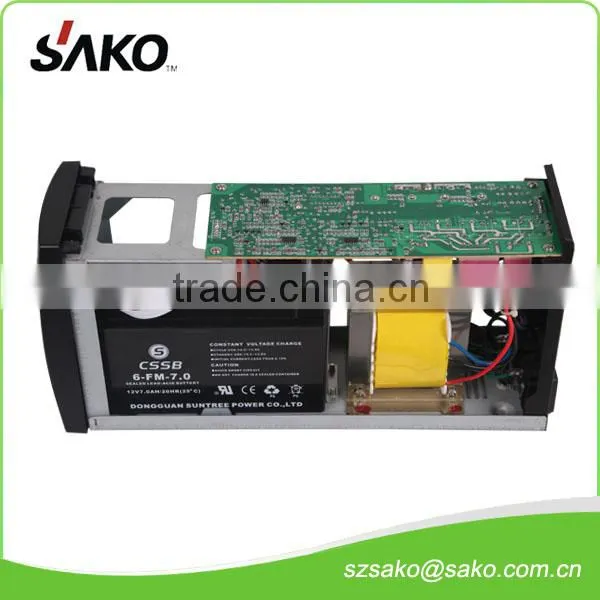

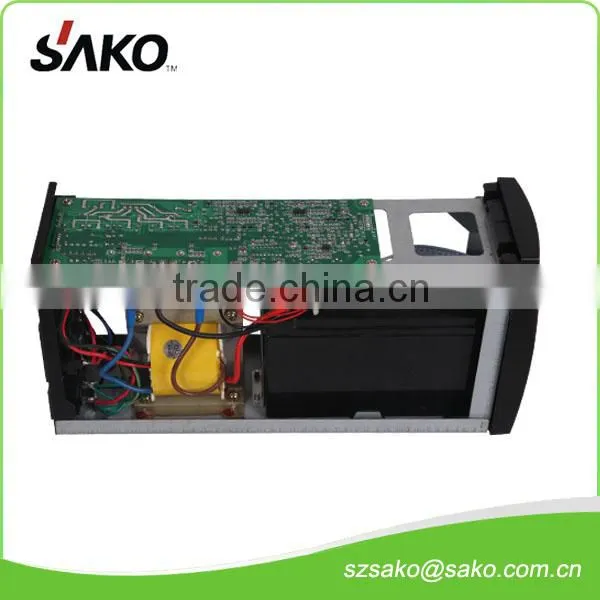

Help CenterSAKO Standby/offline UPS
US$ 19 - 90
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAKO or OEM brand
Model Number:
500-1500VA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai Hongkong Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
SAKO or OEM brand
Model Number
500-1500VA
Phase
Single Phase
Protection
Other, Short Circuit, High/Low Voltage Protection
Weight
7KG-15KG
Output Voltage
220V/110V
Type
Standby
Application
Other, Computer, Compatibility With Generators
Specifications
1.With AVR function2.Wide input voltage range 145-280V
3.Intelligent Battery Management
4.Smart RS232 & RJ11 Option
| SAKO PCF Series TECHNICAL PARAMETER | |||||||
| Product | Requirements | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 | Model 6 |
| Power (VA) | PCF-500 | PCF-650 | PCF-800 | PCF-1000 | PCF-1200 | PCF-1500 | |
| Input | Voltage (VAC) | 220/230/240VAC ± 25% (145-280VAC ± 5VAC or 75V-145V ± 5VAC) | |||||
| Frequency (Hz) | 50/60Hz ± 10% | ||||||
| Output | Voltage (Inverter Mode) | 110/120VAC or 220/230/240VAC ± 10% | |||||
| Capacity (W) | 500VA/300W | 650VA/360W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/880W | |
| Frequency (Inverter Mode) | 50/60Hz ± 10% | ||||||
| Transfer Time (ms) | ≤6ms Typical | ||||||
| Waveform | Modified-Sinewave | ||||||
| Protection | Spike & Surge Suppression | Yes | |||||
| Over/Under Voltage | Switch To Bat. O/P When Mains Over Regulation Range | ||||||
| Over Load /Short Circuit | Fuse & Current Limited For Both Mains And Battery Modes | ||||||
| Function | Cool Start | Cool Start Computer Even There Is No Main Power | |||||
| Automatic Recharge | Automatic Charge When UPS Is Off | ||||||
| Battery | Type | Lead-Acid Miantenance-Free | |||||
| DC Bus | 12V7.0Ah | 12V9.0Ah | 12V7.0Ah | 12V9.0Ah | |||
| Number | 1 PC | 2 PCS | |||||
| Recharge Time | 8 Hours ≥ 90% | ||||||
| Back Up Time(One PC) | 8-15mins | 10-18mins | 15-25mins | 15-25mins | 20-30mins | 25-45mins | |
| Physical | Weight (KGs) | 5 | 5.5 | 6.5 | 8.5 | 11 | 12 |
| Shipping Wt. (KGs) | 5.6 | 6 | 7 | 9 | 11.5 | 12.5 | |
| Product Dimensions (mm) | 335*95*160 mm | 355*120*195 mm | |||||
| Packing Dimensions (mm) | 375*170*200 mm | 420*190*250 mm | |||||
| Software | Windows & NT | Auto Save & Shut Down | |||||
| Efficiency | AC-AC | 1 | |||||
| DC-AC | 0.6 | ||||||
| Acoustic | Noise Level (dB) | ≤ 45 dB | |||||
| Environmental | Temperature | -5°C ~ 45°C Degree | |||||
| Humidity | 20% to 90% | ||||||
| Power Outlets | No. And Types | 2 SOCKETS | 3 SOCKETS | ||||
