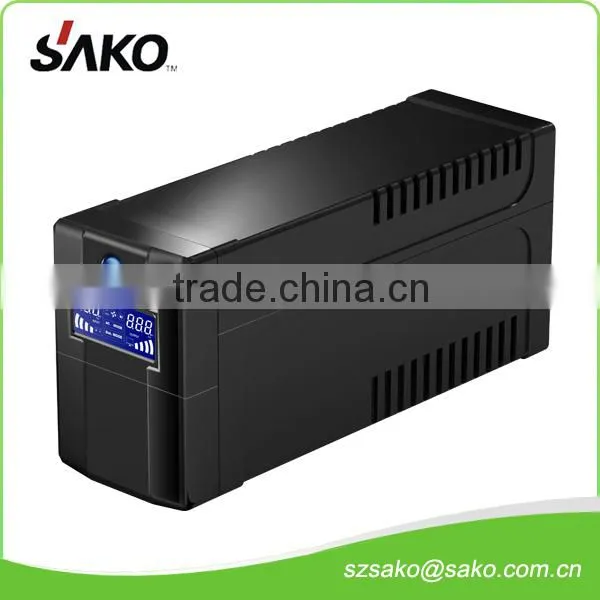

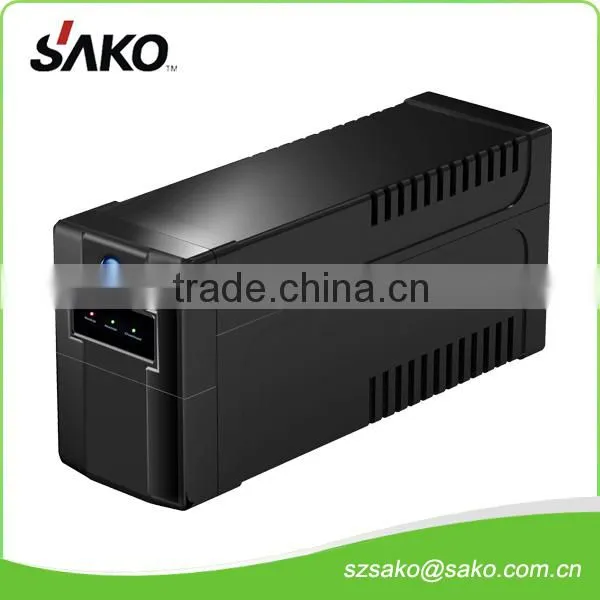

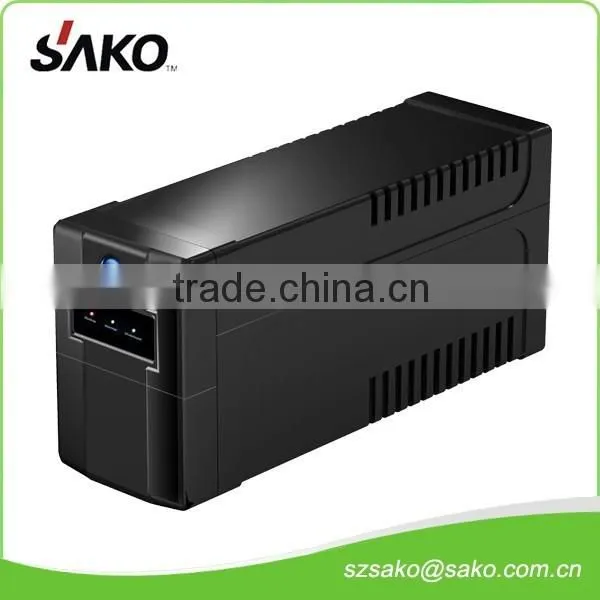

VPE Series Off-Line UPS

Name: VPE Series Off-Line UPS
Brand: SAKO
SKU: 120334337
Availability: InStock

Negotiable MOQ: 500 Units (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SAKO

Model Number:

VPE-500VA-1500VA

Sako Electrical Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SAKO

Model Number VPE-500VA-1500VA

Phase Single Phase

Protection Short Circuit

Weight 5-12

Output Voltage 110/120 VAC or 220/230/240VAC ±10%

Application Security / Monitoring / Alarm

Specifications

1.Overload/Short Protection
2.High/Low Voltage Protection
3.Wide Input Voltage Range Option
4.Colored LED display

Line interactive UPS (PWM output)-Plastic case
Model #	VPE-500	VPE-600	VPE-800	VPE-1000	VPE-1200	VPE-1500
Capacity	500VA/300W	600VA/360W	800VA/480W	1000VA/600W	1200VA/720W	1500VA/900W
AVR	No	3 steps of AVR, CPU controlled
INPUT
Input voltage range	110V: 90~132±5Vac	110V: 85~150Vac±5Vac
	220V:175~265±5Vac	220V:145~290Vac±5Vac
Input frequency range	50Hz / 60Hz (Auto sensing)
OUTPUT
Output voltage range	110V: 90~132±5Vac	110V: 102~132Vac
	220V: 175~265±5Vac	220V:200~255Vac
Output frequency (DC mode)	50±0.5Hz / 60±0.5Hz
Wave form	PWM (DC Mode)
Transfer time	Typical 2~6ms, Max.10ms.
BATTERY
QTY & capacity of battery	1 pc*12V4.5Ah	1 pc*12V7Ah	1 pc*12V9Ah	2 pcs*12V7Ah	2 pcs*12V7Ah	2 pcs*12V9Ah
Charging period	4~6 hours recover to 90% capacity
PROTECTION & FUNCTION
PROTECTION	1. Battery low voltage protection 2. Overload protection 3. Short circuit protection
FUNCTION	1. Auto re-starts when AC recovers 2. Silence setup 3. Automatic charging (offline charging)
MANAGEMENT
RJ45/11 & USB	Optional
PHYSICAL
Unit dimension (mm)	31497143			345146162
Color box dimension (mm)	370145230			435223242
Master box dimension (mm)	380312485			466450264
Pcs in one master carton	4			2
Gross weight (1pc, kg)	4.2	4.9	6.2	11.2	13.0	15.0
Net weight (1pc, kg)	4.0	4.6	5.8	11.0	12.8	14.8
Loading capacity (20' ctrn)	2160 pcs			960 pcs
Loading capacity (40' GP)	4440 pcs			1920 pcs
