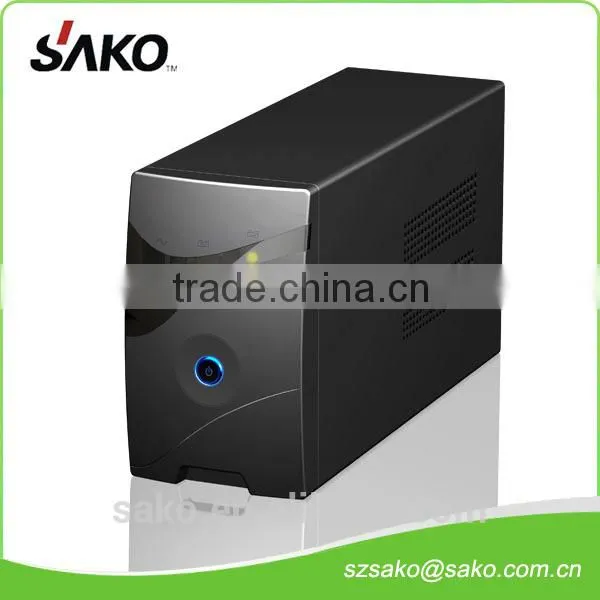

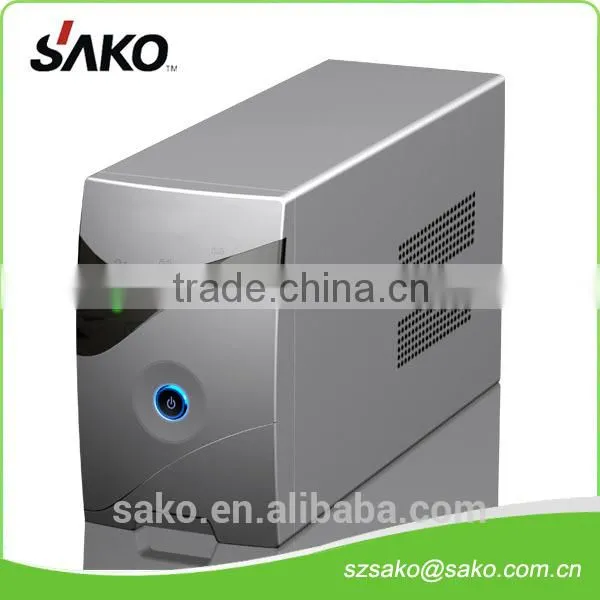

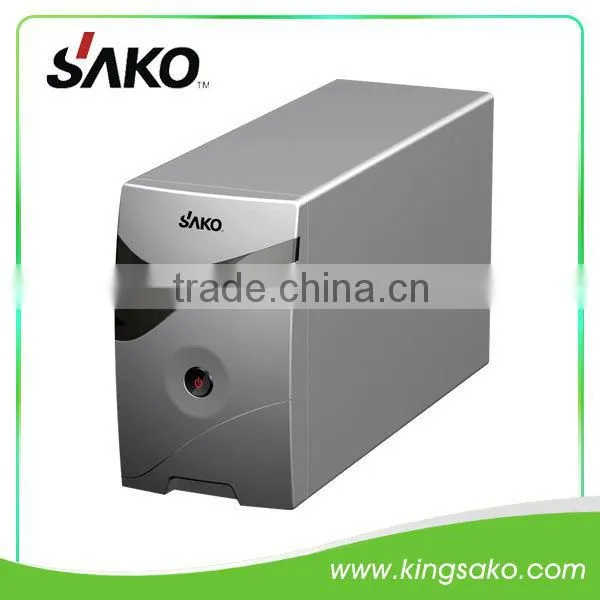

Help CenterSAKO PCF SERIES OFF-LINE UPS
Negotiable
MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAKO
Model Number:
PCF-500
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
SAKO
Model Number
PCF-500
Phase
Single Phase
Protection
Overvoltage
Output Voltage
220V
Type
Standby
Application
Computer
Specifications
1.Overload/Short Protection2.Cool start computer even there is no main power
3.Automatic recharge even UPS is off
| Product | Requirements | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 | Model 6 |
| Power (VA) | PCF-500 | PCF-650 | PCF-800 | PCF-1000 | PCF-1200 | PCF-1500 | |
| Input | Voltage | 220/230/240VAC ±25%(145-280V±5V or/ 75V-145V+/-5V) | |||||
| Frequency | 50Hz/60Hz+/-10% | ||||||
| Output | Voltage (Inverter Mode) | 110/120 VAC or 220/230/240VAC ±10% | |||||
| Capacity | 500VA/300W | 650VA/360W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/880W | |
| Frequency (Inverter Mode) | 50/60Hz+/-10% | ||||||
| Transfer Time | 6MS typical | ||||||
| Waveform | modified-Sinewave | ||||||
| Protection | Spike & Surge Suppression | yes | |||||
| Over/Under Volt. | Switch to Bat. O / P when Mains over regulation range | ||||||
| Over load /short Circuit | Fuse & current linited for both Mains and Battery modes | ||||||
| Function | Cool start | Cool start computer even there is no main power | |||||
| Automatic recharge | Automatic recharge even UPS is off | ||||||
| Battery | Type | Lead-Acid miantenance-free | |||||
| Dc Bus | 12V7.0Ah | 12V9.0Ah | 12V7.0Ah | 12V9.0Ah | |||
| Number | 1 PC | 2 PCS | |||||
| Recharge time | 8hours≥90% | ||||||
| Back up time(one PC) | 8-15mins | 10-18mins | 15-25mins | 15-25mins | 20-30mins | 25-45mins | |
| Physical | Weight (KGs) | 5 | 5.5 | 6.5 | 8.5 | 11 | 12 |
| Shipping Wt. | 5.6 | 6 | 7 | 9 | 11.5 | 12.5 | |
| Product Dimensions (mm) | 335*95*160 | 355*120*195 | |||||
| Package Dimensions (mm) | 375*170*200 | 420*190*250 | |||||
| Soft ware | Windows & NT | Auto save & shut down | |||||
| Efficiency | AC-AC | 1 | |||||
| DC-AC | 0.6 | ||||||
| Acoustic | Noise level | ≤45dB | |||||
| Environmental | Temperature | -5-45 DegreeC | |||||
| Humidity | 20% to 90% | ||||||
| Power Outlets | No. and types | 2 SOCKETS | 3 SOCKETS | ||||
