waste tyre recycling machine
MARKED ADVANTAGES
1. Without any pollution , low consumption, small floor space,high productivity with unit price.
2. Wide range of raw materials, it can produce all waste tires small than 1.2mm, and crush all kinds of elastomer rubber products, such as waste sole ,waste rubber leftovers, etc.
3. High automation, few operators, reduce the production price efficiently.
4. Separate the fiber ,steel wire, rubber powder completely from waste tire, without any waste water, waste gas, waste residue,and achieve clean production.
5. Stable equipment performance, long service life of the wearing parts,convenience maintenance and overhaul.
MAINLY MACHINES LIST:

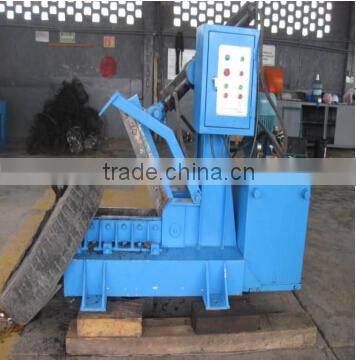

1. debeader :pull out the steel ring
Model No. | TD-1200 |
Feed size of tire(mm) | ≤φ1200 |
Capacity(tires/h) | 80-100 |
Power(KW) | 7.5 |
Overall dimensions(m) | 4.7*0.9*1.7 |
Equipment weight (T) | 2.8 |

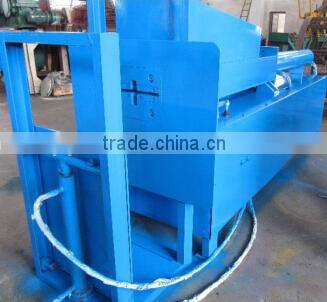

2. cutter :cut the whole tyres
Model No. | TC-1200 | TC-1400 |
Feed size of tire(mm) | ≤φ1200 | ≤φ1400 |
Capacity(tires/h) | 30-40 | 30-40 |
Power(KW) | 4 | 7.5 |
Overall dimensions(m) | 2.2*0.8*1.5 | 2.4*1.0*2.0 |
Equipment weight (T) | 1.2 | 2.2 |

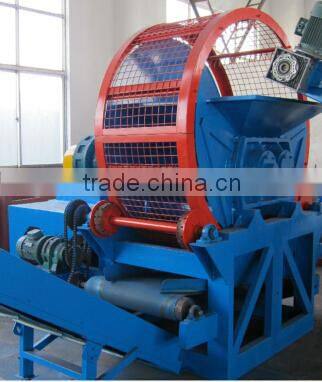

3. shredder: crush the tyres into block, its size less than 50*50mm
Model | ZPS-900 | ZPS-1200 |
Production capacity | 0.8-2ton/h | 1.5-3ton/h |
Size of feeding | ≤900mm whole tyre | ≤1200mm whole tyre |
Specification of the slice | ≤50*50mm | ≤60*60mm |
Motor power | 45kw | 55kw |
Cutter rotate speed | 16r/min | 31r/min |
Screener rotate speed | 6r/min | 8r/min |
Dimension | 2.8*2.1*2.4m | 5.2*2.8*3.5m |
Weight | 6.2T | 14.8T |

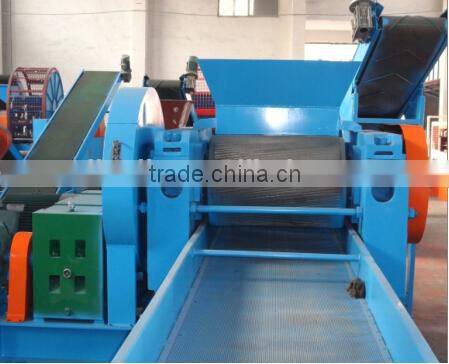

4. crushe the above rubber block into rubber crumb(rubber powder,), its size will be 5-30 mesh

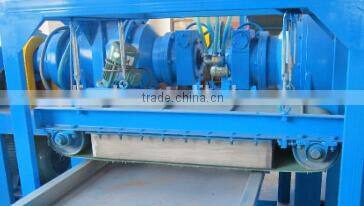

5. magnetic separator: separate the steel metal

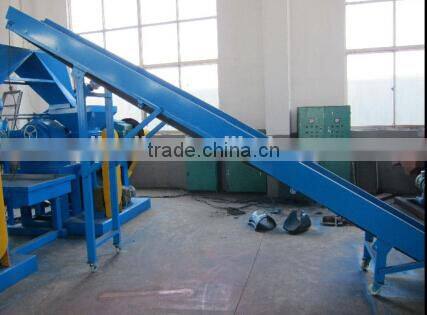

6. conveyor belt: conveyor the tire and rubber powder
This production line including the below:

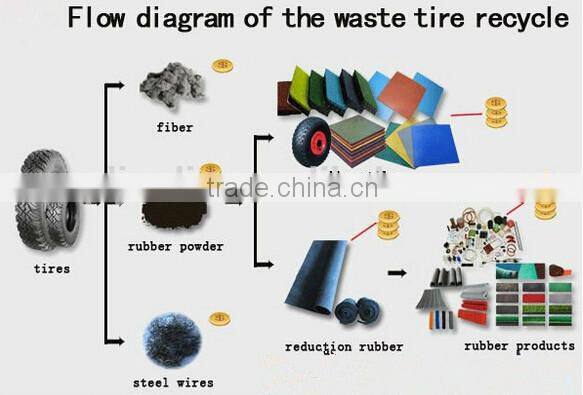

Waste tire---Tire debeader---Whole tire cutting---Tire shredding---Rubber crushing--- magnetic separating ---Rubber powder
Our processing workshop
After-sales service:
*We furnish the best pre-sale and after-sale service,no matter whether you buy products from our factory at last,it is our pleasure to furnish you any help during your purchase;
*Manufacture Factory with Rich Production Experience
*Superior Quality at Reasonable Price
*365 Days' Ongoing Service *Comprehensive Technical Support
