Please feel free to contact with my viber: +86-18561530469, i will show you all the details.
High-tech Automatic Jaw type Rubber Vulcanizer
Main characteristic:
1.unit treading working pressure is very high greater than 81kg/cm2.Ensure the tread density,improved wear-resisting performance.
2.Transform the hydraulic systerm process.Reducing the power. Save the energy,total power only 7.5kw.
3.Use PLC control,the automation control.
4.Can be easily recycled the overflow of rubber,reduce the cost.
5.Smooth operation,less easyworm parts.
Technical Parameters of Tyre Tread Making Machine:
Type | XLE-Q400×200 | XLE-Q400×400 | XLE-Q400×600 | XLE-Q400×600 | XLE-Q800×1100 | XLEQ1600×1500 |
Nominal Clamping power (MN) | 0.20 | 0.40 | 0.60 | 1.2 | 1.8 | 4.8 |
Hot Plate Specs mm | 400×200 | 400×400 | 400×600 | 400×1200 | 800×1100 | 1600×1500 |
Pressure of plate’s unit area (Mpa) | 2.5 | 2.5 | 2.5 | 2.5 | 2.0 | 2.0 |
Main motor’s power (KW) | 2.2 | 3 | 3 | 7.5 | 3 | 13 |
Inner Girth of Vulcanization Belt | 960-3500 | 1680-3600 | 1680-3700 | 5000-17000 | - | 4700 |
Overrall Size(LxWxH)mm | 3200x1050x1730 | 3200x1050x1730 | 3200x1050x1730 | 3200x1050xc1730 | 2400x1100x2330 | 4000x1500x3060 |
Product Weight (Kg) | 4000 | 45000 | 5000 | 8000 | 1400 | 2000 |

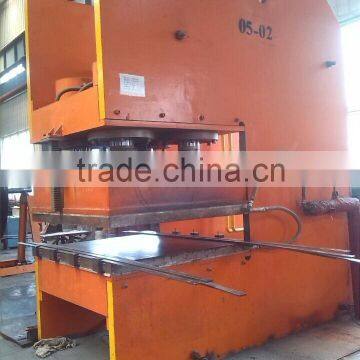

Picture as below:
Final products:
Processing workshop show;
After-sales service:
One year guarantee for whole machines
24 hours technical support by email
Calling or door - to -door service
Provide videos for each machine
we will send one engineer to your factory to guide installation and test running the production line, until you can operate the machine skilled.
Our customer:
Our certificate:
CE ISO9001 SGS
Welcome to send inquiry and visit us to check the quality!
