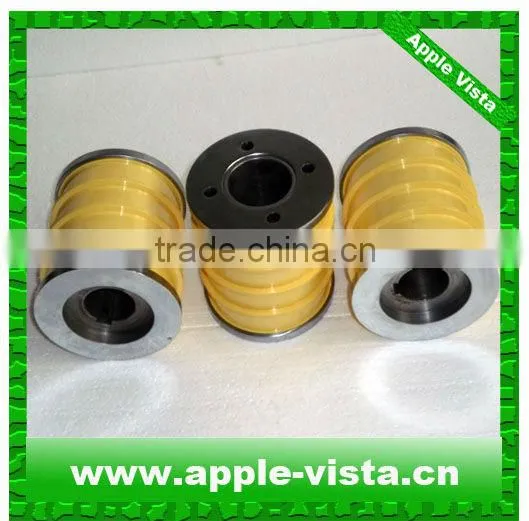

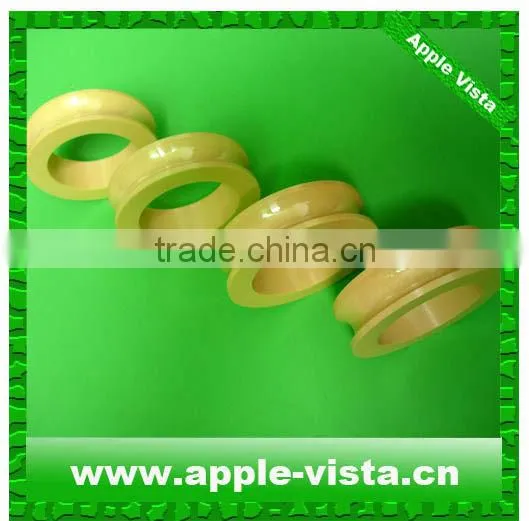

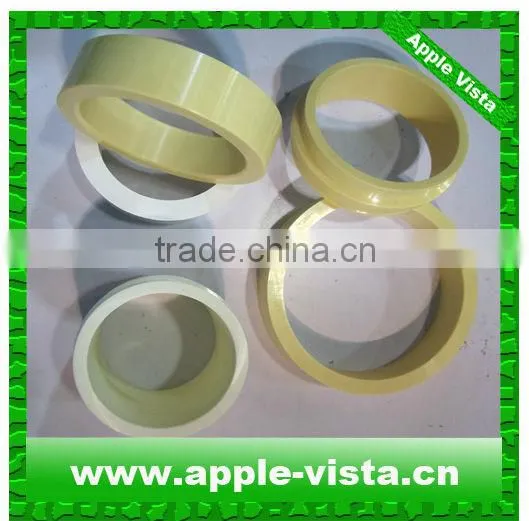

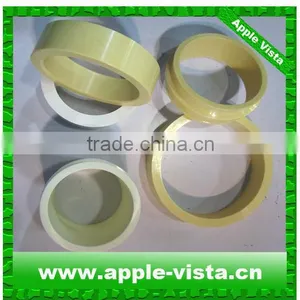

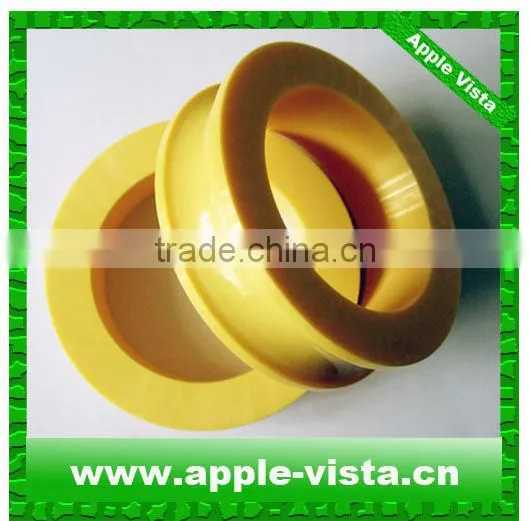

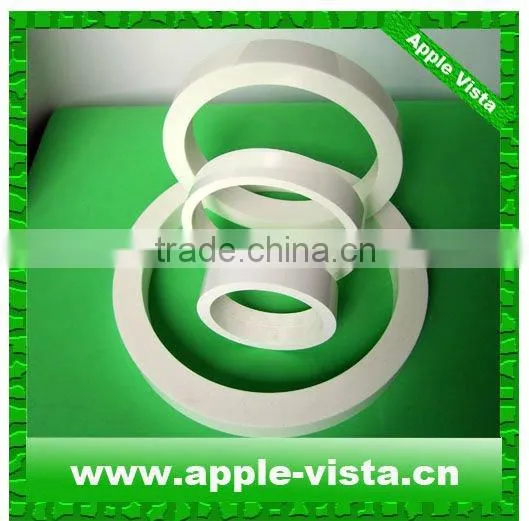

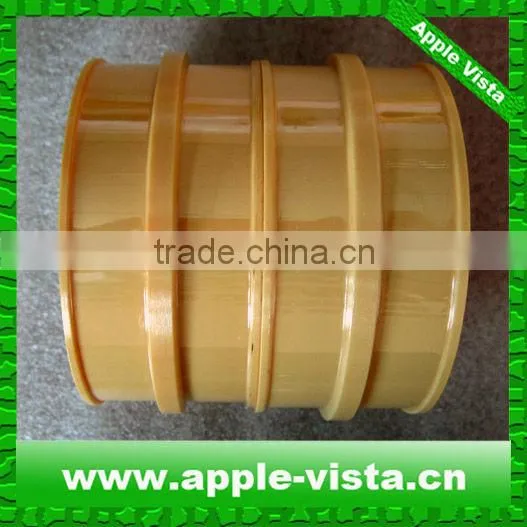

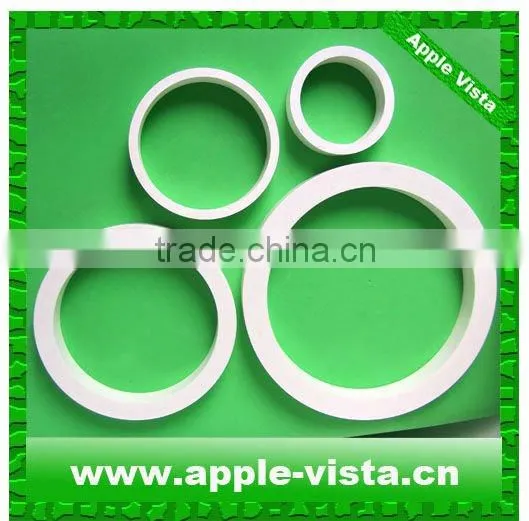

Wear resistance Zirconia / Alumina ceramic rings for wire
Features:
1.Use temperatures up to 2400°C
2. High density
3. High hardness
4. Low thermal conductivity
5. Chemical inertness
6. Resistance to molten metals
7. Good Wear resistance
8. High fracture toughness
We can supply the products according to customer's drawings, samples and performance requirement.
Zirconia ceramic are used in shaft , plunger, sealing structure, auto mobile Industrial, oil drilling equipment, Insulation parts in electrical equipment , ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.
| Performance | ||||
| Item | Unit | 99 Al2O3 | Zirconia | |
| Physical Characteristics | Bulk density | g/cm3 | 3.9 | 6.05 |
| Water absorption | % | 0 | 0 | |
| Mechanical Characteristics |
Flexural strength |
Mpa | 360 | 1000 |
| Hardness Vickers | Gpa | 15.6 | 89 | |
| Elastic modulus | Gpa | 370 | 200 | |
| Poisson’s ratio | - | 0.23 | 0.31 | |
| Thermal Characteristics | Linear expansion coefficient | (20-5000C) 10-6/0C | 8 | 10 |
| Thermal conductivity | w/(m.k) | 32 | 2.5 | |
| Specific Heat |
*10-3J/(kg*K) | 0.9 | 0.5 | |
| Processing technology | ||||
| Process range (mm) | ||||
| Outside Diameter | 1---300 | |||
| Inside Diameter | 0.5---300 | |||
| Length | 0.5---600 | |||
| Accuracy of working (mm) | ||||
| Perpendicularity | 0.001 | |||
| Concentricity | 0.001 | |||
| Roundness | 0.0005 | |||
| Straightness | 0.005 | |||
| Parallelism | 0.01 | |||
| Planeness | 0.005 | |||
| Roughness | 0.005 | |||
| Fit clearance | 0.005 | |||
Apple Vista Limited has strong development ability for new products. Wehave own designers and tooling making factory as a strong back-up for several factories under control. We are absolutely qualified for OEM or ODM orders from our customers. We just need a sample, or even just an idea, then we can make your ideas into real productsin rational time.
Our various products make one-stop source easier for customers to mix different items into one container, which will make customers save purchasing cost quite a lot. Meanwhile, it is also very easy for customers to arrange payment to make inspection.
Here We supply
wire drawing pulley,cone ring , wire machine, wire machinery, wire drawing machinerywire drawing cone, wire machine, wire machinery, wire drawing machinery,wire drawing die,zirconia Ceramic,alumina ceramic,tungsten carbide rings,tungsten carbide product,zirconia ceramic ring,zirconia ceramic products
Specially formulated for wire drawing applications. This fine-grained zirconia ceramic
provides extreme Hardness, an exceptionally smooth wire drawing surface and
excellent corrosion resistance.
Deal flow chart
1. We are real manufacture with 8years experiences in this feild;
2.All parts produced according to your CAD and 3D drawings or sample. Please send the drawings firstly A full quotation as your required will be offered in 24 hours;
3. Advanced equipment, excellent R&D teams and strict quality control system
4.These kinds of parts were made by high precision CNC machines. All the dimension were made as per customer requests .
5. All parts was 100% inspected before shipment
1.How can we get the quote?
Of course,First send the detailed drawing to my my email.
2. How long will we arrange production?
Normally we need about 10-20days,according to your total quantities.
3.Do you have MOQ?
Of course we have our MOQ,but for our first cooperation,we would like to help you product at any quantities.
4.How to caculate the shipping charge?
When we make the official quotation,we will give our local charge for your referance.
If you have your own agent,that would be better.
5.How we can know that our products are in production?
After we received your payment,we will take photoes about the whole production process at any time if you need.
6.What's the trade terms and payment terms?
We usually quotated for FOB/Ex-work/CIF price.
Payment we can accept TT in advance/paypal account/wester union....
7.How to contact us?
If you trust us,pls send your detailed drawing sheet to the following email: sales1 at
I will provide our quotation within 24hours.
