Well Surface Polished Ceramic Roll for Wire Drawing Machine/ Niehoff

Well Surface Polished Ceramic Roll for Wire Drawing Machine/ Niehoff thumbnail-1
Well Surface Polished Ceramic Roll for Wire Drawing Machine/ Niehoff photo-1
US$ 198 - 1,980 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Wire drawing capstan
Material:
Other, Ceramic
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Apple Vista Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Wire drawing capstan
Material Other, Ceramic
Place of Origin Guangdong, China
Brand Name AV
Model Number AVWD01

Specifications

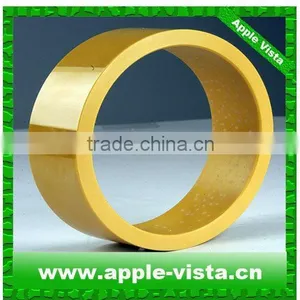

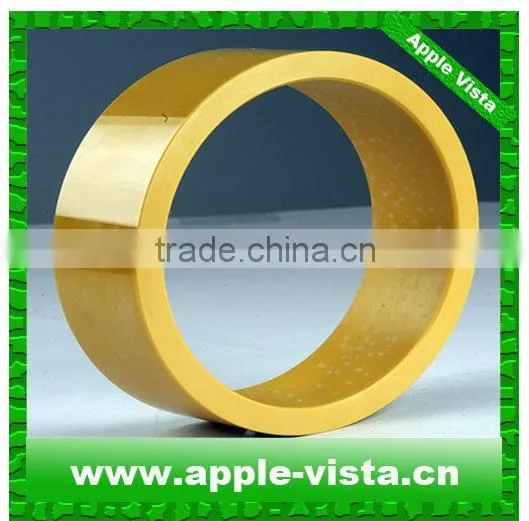

Well surface polished ceramic roll
1.Yellow zirconia ceramic
2.High hardness/strength
3.Above 3 Ys' life
4.Customized

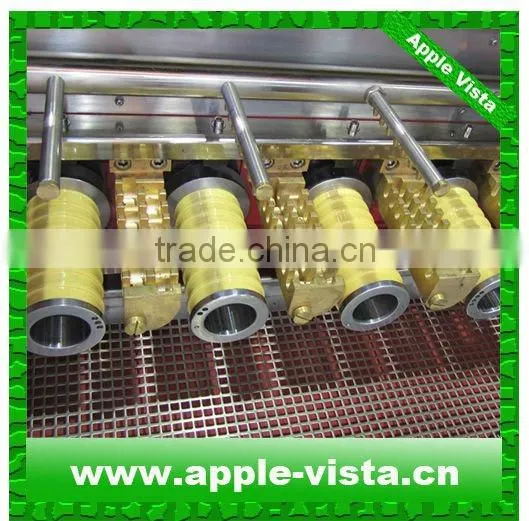

Well surface polished ceramic roll for wire drawing machine/ Niehoff

(Hard zirconia ceramic)



  • Pulley Material: Zirconia ceramic
  • Color: Yellow
  • Type: Rings for wire/cable drawing
  • Application: For ferrous/nonferrous/precious wire drawing, etc.
  • Size: Customized
  • Serve Life: Above 3 Years
  • Sample: Available and welcome
  • Place of Origin: China



  • CERAMIC PROPERTIES:
  • * Outstanding hardness/ strength
  • * Well Surface Finish
  • * High Corrosion Resistance
  • * High fracture toughness
  • * Low coefficient of thermal expansion
  • * Low heat conductivity



  • ZIRCONIA CERAMIC PERFORMANCE PARAMETER:
  • -Density: 5.5-6.05 g/cm3
  • -Bending strength: 1100 Mpa
  • -Fracture toughness: 12 Mpa.m1/2
  • -Hardness: 88-90 HRA
  • -Modulus of elasticity: 220 Gpa
  • -Coefficient of linear expansion: 6.5-11.2 x10-6/k
  • -Minimal residual unbalance of up to: ≤0.8 Gmm/kg
  • -Unbalance reduction rate: ≥85%

  • More Information Needed, Welcome To Contact Anytime !!

  • Well surface polished ceramic roll for wire drawing machine/ NiehoffWell surface polished ceramic roll for wire drawing machine/ NiehoffWell surface polished ceramic roll for wire drawing machine/ NiehoffWell surface polished ceramic roll for wire drawing machine/ Niehoff
