JSKN Solar Power Charger System With 10KVA Load Power
US$ 100 - 1,000
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAKO
Model Number:
JSKN
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SAKO Solar System JSKN 6000W Hybrid Inverter With ControllerUS$ 100 - 1,000MOQ: 1000 Pieces -
1000VA/800W Moveable Cart Solar System, With AC Charger, Solar Charger, UPS and AVR Function, All-in-one SystemUS$ 500 - 800MOQ: 100 Pieces
-
Solar Pure Sine Wave Inverter With Charger JSKN 5000VAUS$ 150 - 1,000MOQ: 10 Pieces
-
SAKO SKN-HDS Hy-brid Solar Inverter 1200W Portable Solar Power SystemUS$ 100 - 1,000MOQ: 10 Sets
-
Hot Sale Power Inverter Solar SKN-MDS 500VA To 3000VAUS$ 79.9 - 359.9MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
SAKO
Model Number
JSKN
Accessories
Other, battery,solar panel
Flexibility
Portable
Product Description
| SAKO JSKN 4000W SERIES TECHNICAL PARAMETER | |||
| JSKN-10KVA-4000W | |||
| Name Of Parts | Specifications | Parameters | Quantity (PCS) |
| Mono-Crystalline Solar Panels | The Maximum Power Of Solar Panels (W) | 200W | 20PCS |
| The Short Circuit Current Of Solar Panels (A) | 8.24A | ||
| The Maximum Power Current Of Solar Panels (A) | 7.51A | ||
| The Open Circuit Voltage Of Solar Panels (VDC) | 32.73VDC | ||
| The Maxium Power Voltage Of Solar Panels (VDC) | 36VDC | ||
| Battery | Maintenance Free Lead-Acid Battery | 12V/200AH | 8PCS |
| Solar Charge Controller | Rated Voltage (VDC) | 96VDC | 1PCS |
| Discharge Current (A) | 60A | ||
| Charge And Recover Voltage (VDC) | 106.4V/Lead-Acid | ||
| The Battery'S Overvoltage Protection And Recovery | 115.2V/105.6VDC | ||
| The Set Range Of Voltage When Low Voltage Off | 86.4V-92.8VDC | ||
| The Set Range Of Voltage When Low Voltage On | 96.8V-105.6VDC | ||
| Inverter | Rated Output Power (W) | 8000W | 1PCS |
| Rated Output Voltage (VAC) | 220VAC±5%, 50Hz±1Hz | ||
| Output Waveform | Pure Sine Wave | ||
| Rated Input Voltage (VDC) | 96VDC | ||
| Undervoltage Alarm (VDC) | 84±0.5VDC | ||
| Low Voltage Off (VDC) | ≤ 80.0VDC | ||
| Overvoltage Off (VDC) | ≥ 113.6VDC | ||
| Efficicency | ≥ 82% | ||
| Output | AC 220V Socket | 220V / 1A | 2PCS |
| Portable Box Dimension (mm) | Box:580*400*645 mm, Package: 720*470*715 mm, battery size:522*238*218mm*8pcs | ||
| Solar Panel Dimension (mm) | 1482*992*40 mm, | ||
| Weight (KG) | Box G.W.: 85Kg, Solar Panel: 17Kg*20PCS Battery: 60Kg*8PCS | ||
| DISCHARGE TIME (HOURS) | |||
| Item | Specifications | Quantity (PCS) | Lighting Time (Hours) |
| LED Lights | 3W | 10 | 666 |
| Electric Fan | DC 12V/30W | 10 | 66 |
| TV | AC220V (LCD 32Inch 60W) | 2 | 333 |
| Fridge | AC220V 120W | 1 | 160 |
| 1 HP AC | AC220V | 3 | 20 |

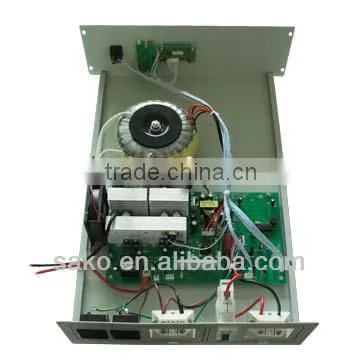

it can be built in two batteriesinner component
