Help CenterCXD Spiral Wire Drawing Dies for Steel Rod
Related Products
-
AV-NW001 Pc Spiral Wire Drawing Die With Good Quality and Best PriceUS$ 30 - 50MOQ: 20 Pieces -
Semi Finished Tungsten Carbide Die for Wire DrawingUS$ 10 - 1,000MOQ: 1 Piece
-
Prestressed Steel Spiral Wire for Twisted DieUS$ 39 - 9,999MOQ: 2 Pieces
-
Custom Shaped Wire Drawing Die for Steel or CopperUS$ 10 - 1,000MOQ: 1 Piece
-
Fine Polished Custom PCD Wire Drawing Dies for Copper, Steel and AluminumUS$ 19 - 149MOQ: 1 Piece
Specifications
spiral wire drawing dies1.surface finish
2.excellent wear resistance
3.long working life
4.Certification ISO9001

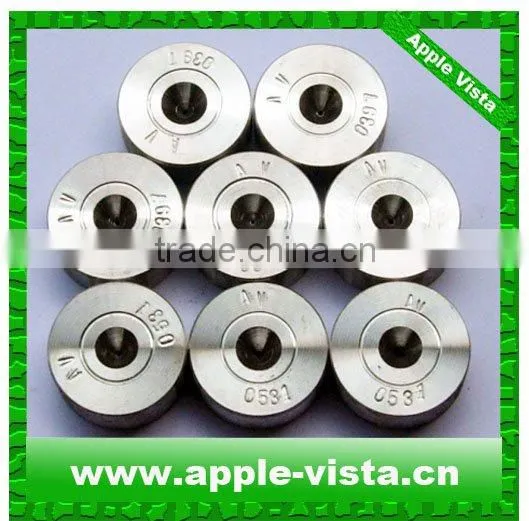

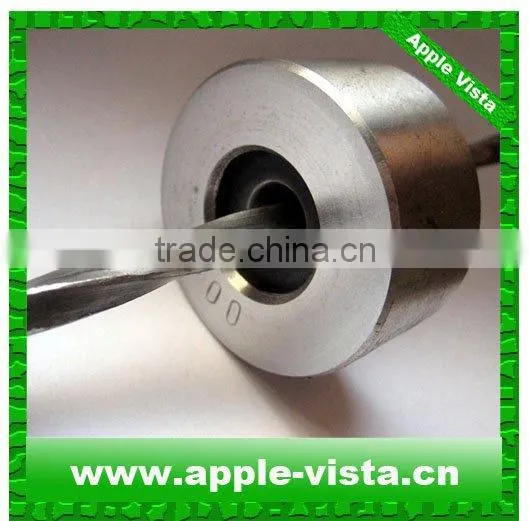

CXD spiral wire drawing dies for steel rod
1.Very high wear resistance ,hardness
2.Long life,shotr delivery time
3.Can offer OEM
4.Best price
5.Free shipping
6. 100% virgin powder.
7. can drawing copper, iron, steel , and other metals.
8. Can offer both blank and finishing with casting.
9. also offer unstandard size according to customer's requirment.
wire drawing dies
carbide drawing dies as supplied drawings
per MISUMI,HASCO standard
for mold,die manufacturer
high precision
We are producing carbide wire drawing dies, natrual diamond wire drawing dies, PCD wire drawing dies, CVD wire drawing dies, polycrystalline wire drawing die in a wide range of style and sizes ranging from 0.03-25mm, applicable for drawing copper wire, aluminum wire, steel wire, iron wire, tungsten wire, welding wire, etc.We welcome inquiries from buyers around the world.
----------------------------------------------------------------------------------------------------
1.Structure of dies:
The hole of the wire drawing dies is made up of four parts:
*Lubricating area of the entry: There is an arc to make the wires enters to the workaround conveniently.
*The workaround: The metals come about plastic deformation while drawing, the cross section of the metals is compressed and reduced.
*Diameter fixed district: to guarantee the size and form accurate and even, lengthen the service life of the die.
*Wire outlet area: wire outlet terminal can prevent scuffing and break-up when the machine is stopped.
2. Material source:
The die materials imported from U.S.A. GE company. Each one has trade marks and certificate of company. Granularities are 351025.
3. The production and delivery will take 3-25 days.
4. Usage time: the whole set of dies can guarantee drawing 30000tons of copper wires. It can reduce the copper powder in the course of drawing. The surface of finished wires is smooth without any defect. After the dies drawing copper wires of 30000 tons, it will not be damaged, but it needs to safeguard, maintain, and polish.
Draing Dies Parameters(unit: mm)
Hole SizeΦd |
Hole Size |
Ovality |
Casing |
Φ0.100~0.200 |
≤0.0015 |
≤0.0008 |
Φ25×8 |
Φ0.201~0.400 |
≤0.0020 |
≤0.0010 |
Φ25×8 |
Φ0.401~0.500 |
≤0.0025 |
≤0.0015 |
Φ30×10 |
Φ0.501~0.750 |
≤0.0030 |
≤0.0020 |
Φ30×10 |
Φ0.751~1.50 |
≤0.0035 |
≤0.0025 |
Φ37×12 |
1.501~2.00 |
≤0.0050 |
≤0.0030 |
Φ37×12 |
Φ2.001~3.00 |
≤0.0070 |
≤0.0050 |
Φ41×20 |
Φ3.001~4.60 |
≤0.010 |
≤0.0080 |
Φ41×20 |
Φ4.601~8.00 |
≤0.015 |
≤0.012 |
Φ41×24 |
Note: Specification only for reference. Special die blank and casing are available upon request.
