rubber refining mill,rubber refiner for reclaimed rubber production
- 50 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card
Product Details
Condition: | New | Type: | Open Mixing Mill | Place of Origin: | Shandong, China |
Brand Name: | Junlin | Model Number: | XKJ480 | Voltage: | 220,240,380,400v |
Power(W): | 55kw | Dimension(L*W*H): | 5500*2500*1900mm | Weight: | 7500 kgs |
Certification: | CE/ ISO 9001/ SGS | Warranty: | three years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Please feel free to contact with me, my mobile is 0086-18561530469, skype: janeglass126
rubber refining mill,rubber refiner for reclaimed rubber production
The function

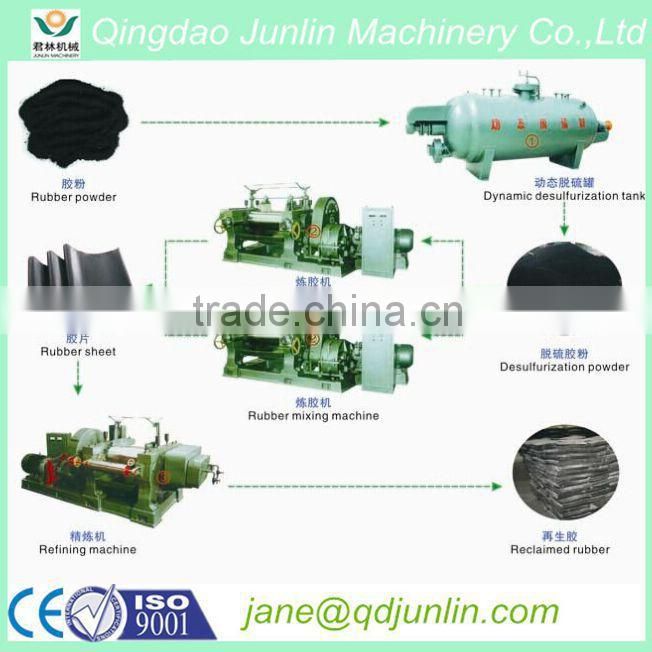

The Rubber Refiner is used for refining reclaimed rubber and rubber sheeting.
One another point different from the open mixing mill, the roller is of waist drum type and used for stripping away impurity substance of reclaimed rubber.
Major Construction Details
» Rolls :: Alloy Chilled Cast Iron rolls with grooved teeth with hardness 510 ~ 550 BHN. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling.
»Roll Clearance Adjusting Unit :NIP adjustment at two roller ends is done manually using two separate screws attached to the bearing housing body.
» Journal Bearing Housing : Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.
» Lubrication: Manual / Motorized Grease pump for lubrication of Anti Friction Roller Bearings fitted in dust sealed housing.
» Stand Frame & Apron (Cap) : Heavy Duty Steel Casting / Steel Fabricated.
» Base Frame : Common base frame, heavy duty Steel fabricated of Double Channel and MS plate accurately machined for fitment of auxiliary equipment.
» Gearbox : Helical Reduction Gearbox Greaves/ Shanti make direct coupled with Motor and Pinion Drive Shaft.
» Electric Control Panel : Star Delta Electric operating panel with Voltmeter, Ampere meter Overload protection relay, 3 Phase Indicator and Emergency Stop Switch
Technical parameter:
Type | XKJ-400 | XKJ-480 |
Working diameter of rolls (mm) | 400 | 480 |
Working length of rolls(mm) | 650 | 800 |
Working line speed of front roll(m/min) | 18.3 | 26.6 |
Friction ratio of front and rear roll(m/min) | 1:1.8 | 1:1.75 |
Capacity (Kg) | 300 | 500 |
Power(Kw) | 55 | 75 |
Overall dimensions (L×W×H)(mm) | 4750*2300*1835 | 5500*2500*1900 |
Weight(Kg) | 7500 | 15000 |

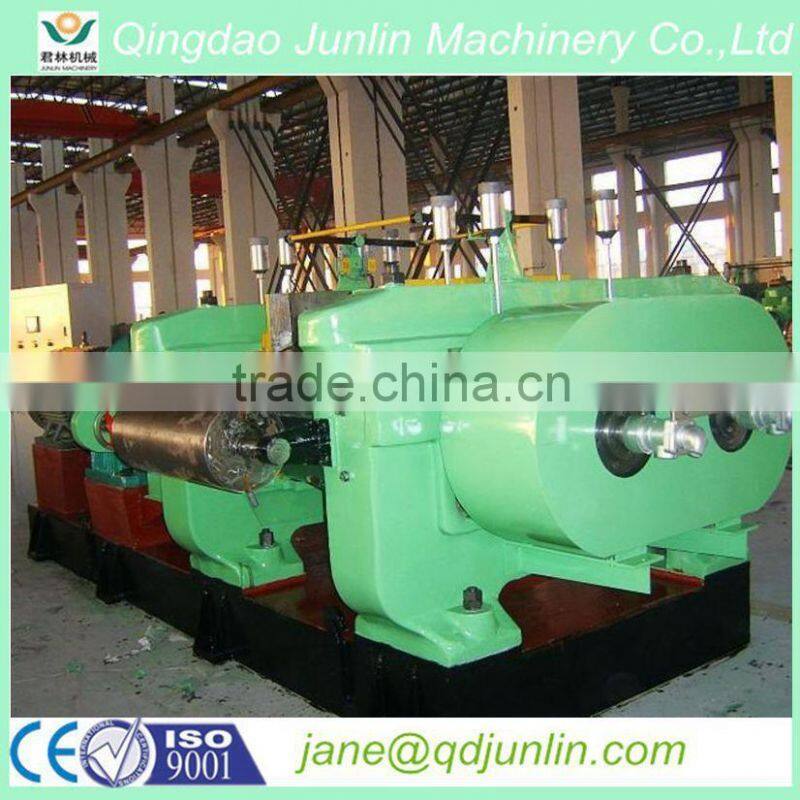

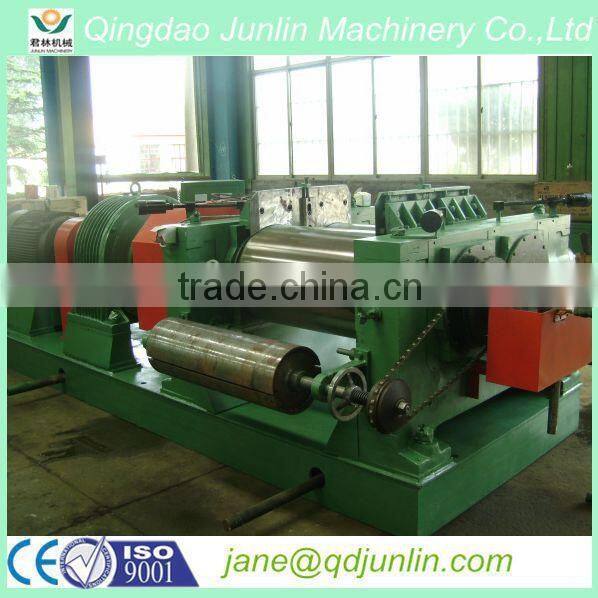

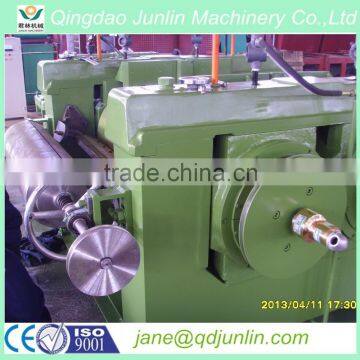

Pictures of our machine:

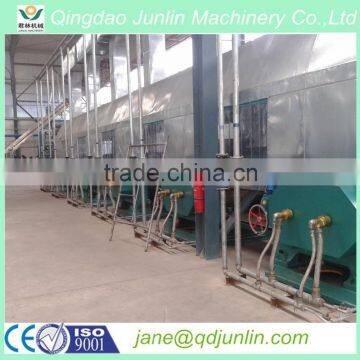

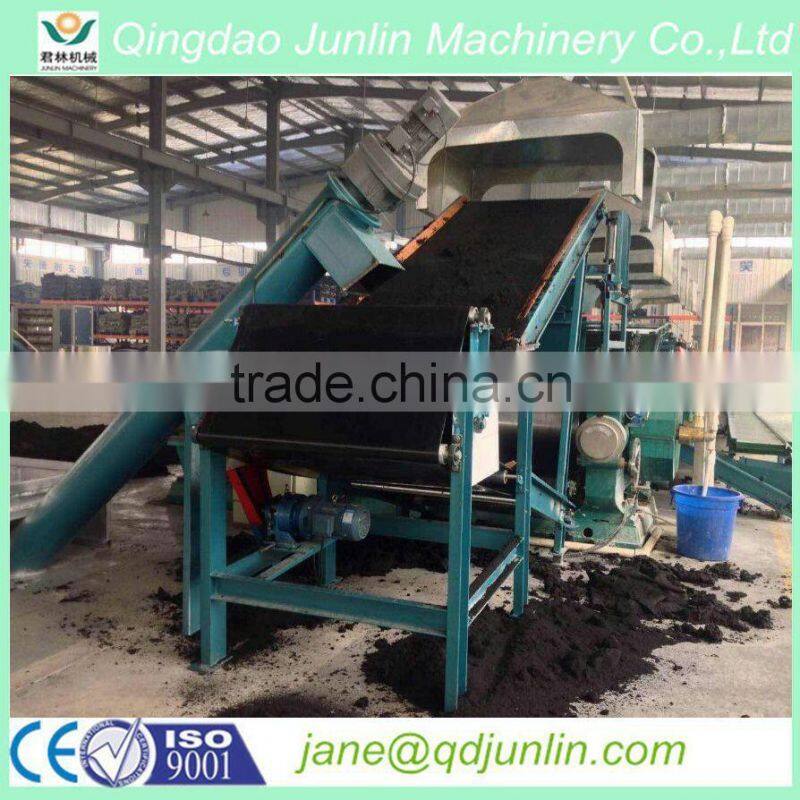

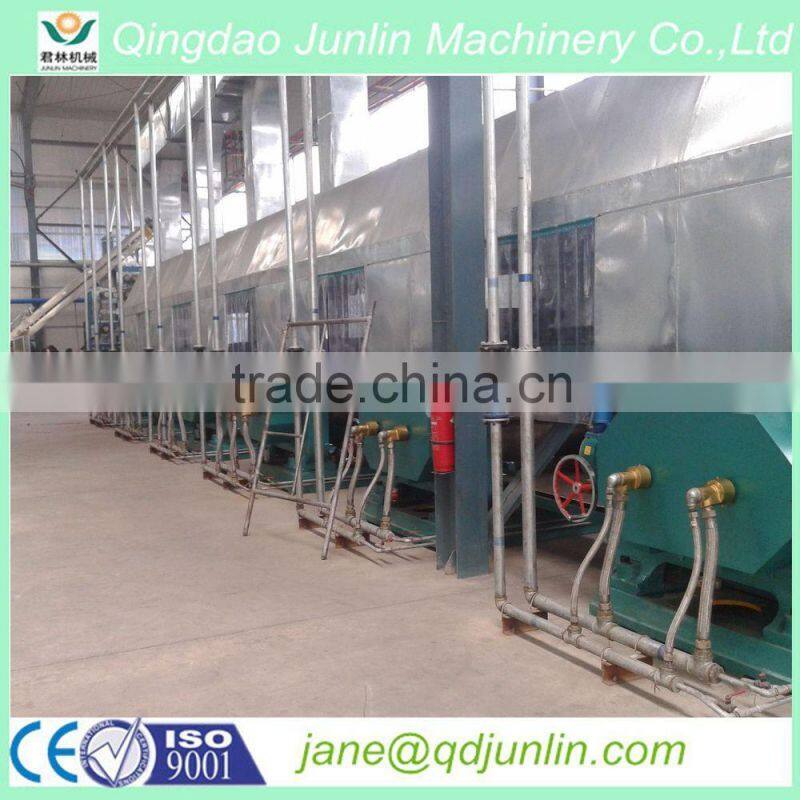

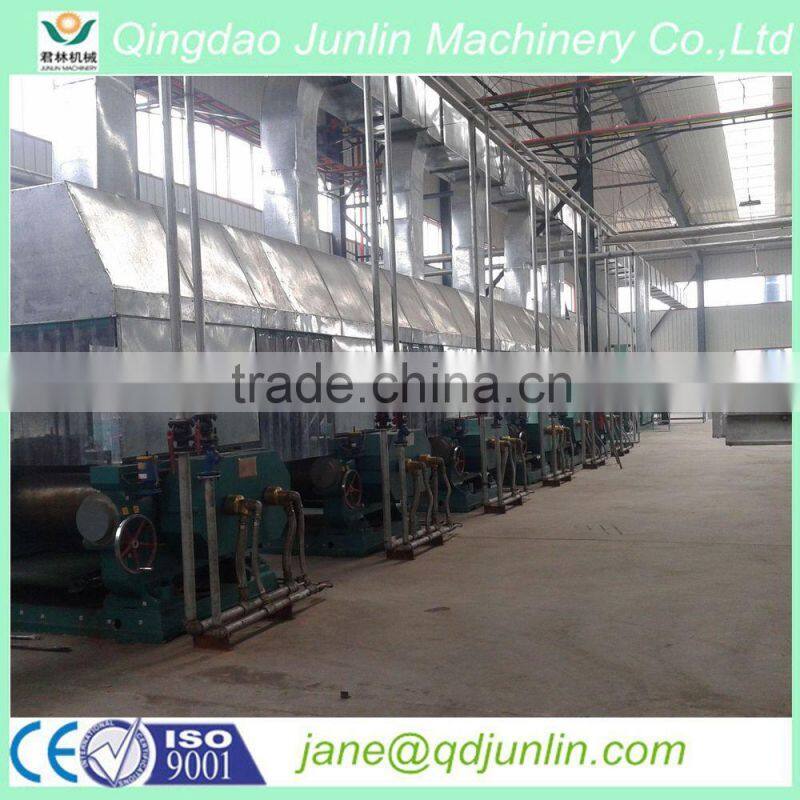

Customer workshop:

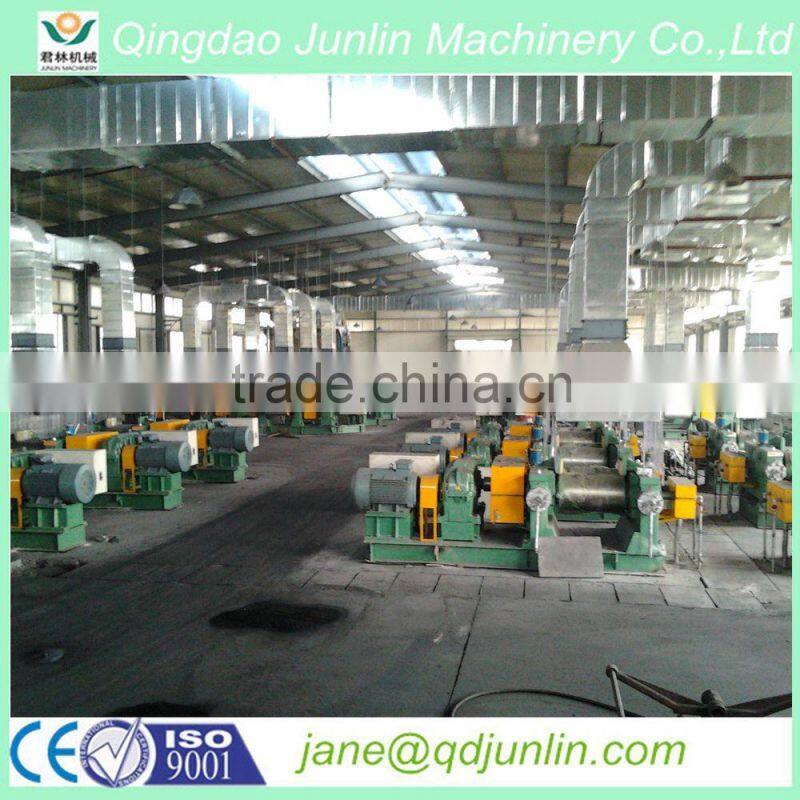

Our processing workshop
After-sales service:
*We furnish the best pre-sale and after-sale service,no matter whether you buy products from our factory at last,it is our pleasure to furnish you any help during your purchase;
*Manufacture Factory with Rich Production Experience
*Superior Quality at Reasonable Price
*365 Days' Ongoing Service *Comprehensive Technical Support
Our customer:
We have been exporting our products to many countries and regions,such as:South Korea,Indonesia, Malaysia,India,Thailand,Russia,Turkey,Romania,Poland,Egypt,South Africa,Algeria,Uruguay, Brazil, America and so on,getting trust and good feedbacks widely from our customers.
Good luck to you and wishing your business is booming.
Thanks & kindest regards.
