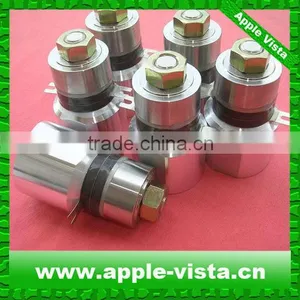

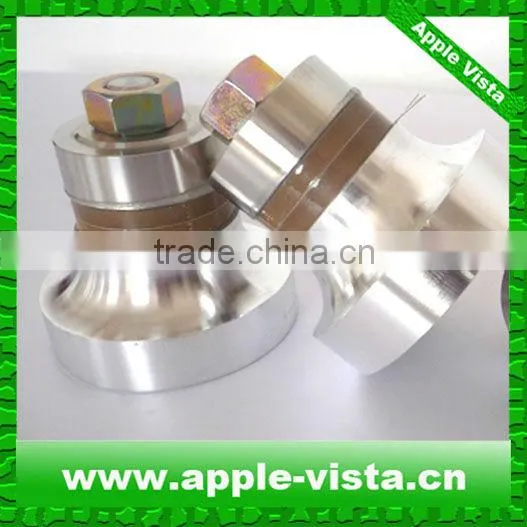

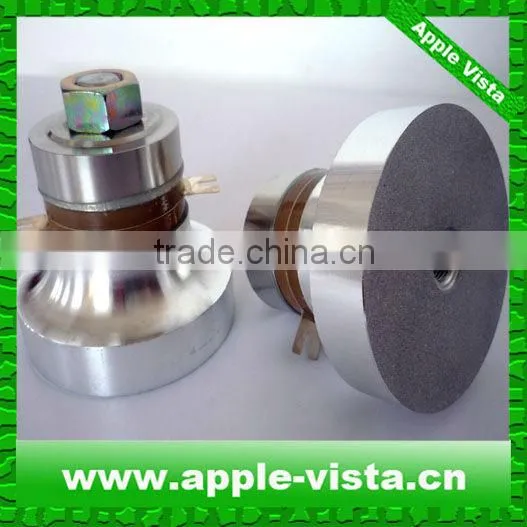

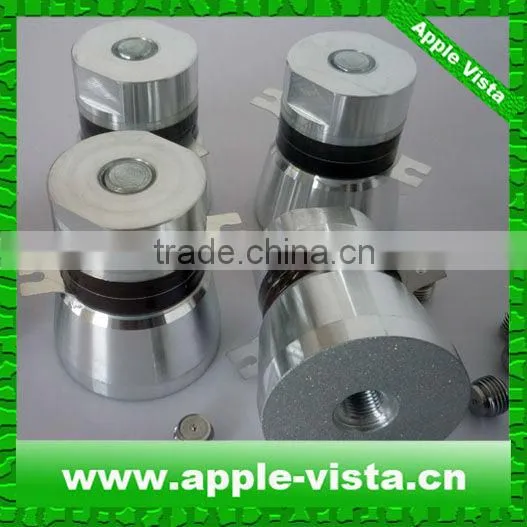

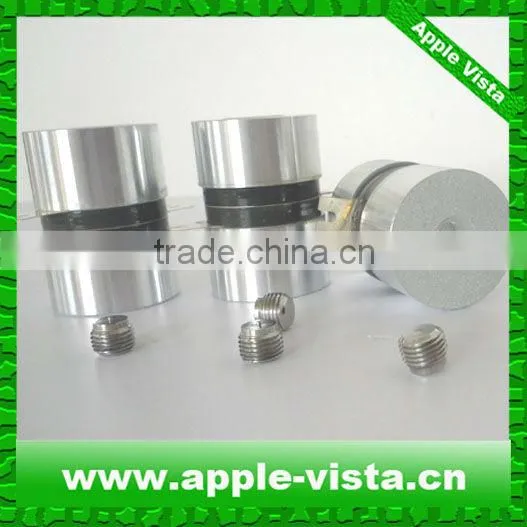

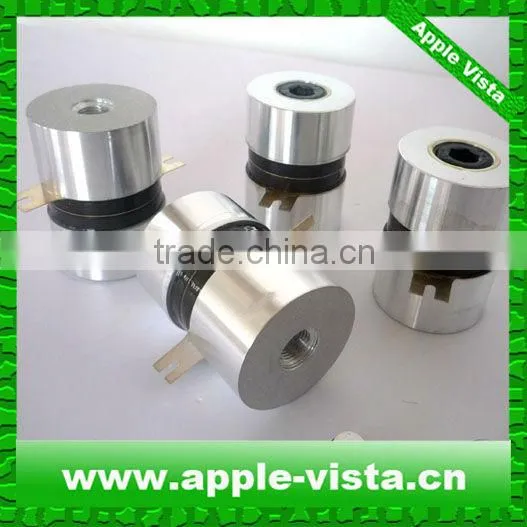

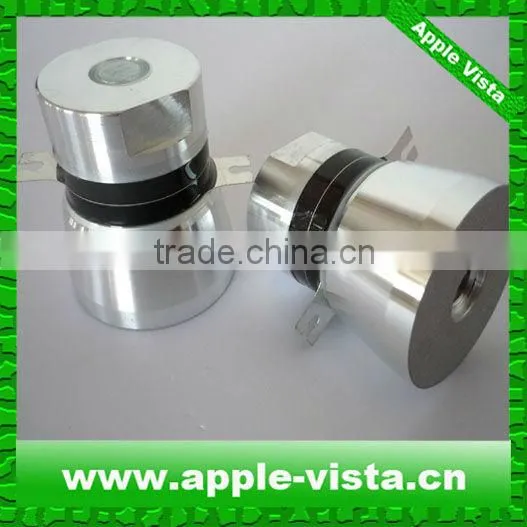

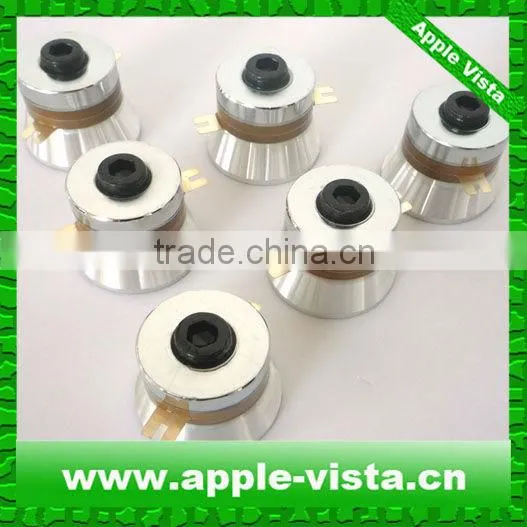

25khz 50mm Piezo Ultrasonic Transducer for Clearner
Piezoelectric ceramic Material
Piezoelectric ceramic materials are categorized as functional ceramics. In sensors they make it possible to convert forces, pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers and actuators they convert electric voltages into vibrations or deformations. Pizoceramic materials are classified according to their chemical composition on the one hand, and by the specific application conditions on the other. We distinguishes between the following material caegories:
Materials for power transducers (ultrasonic applications)
Materials for sensors (ultrasonic transmitters and receivers)
Materials for actuators (precision positioning or injection systems)
Materials for special applications
Contacting of the metalized Piezoelectric ceramic Materials can be made using conductive adhesives, conductive rubbers, spring contacts or via soldering.
Warm Tips:We can customize various piezoelectric ceramics as required.
1. Ultrasonic cleaning transducer
2. Ultrasonic welding transducer
3. Ultrasonic beauty transducer
4. Thickness gauges
5. Pressure sensors
6. Microphone
7. Ultrasonic cleaners
8. Ultrasonic atomizers
9. Level sensors
10. Underwater echo sounders
11. Vibratory motors
12. Ultrasonic mixing/dispersion
13. other ultrasonic products
Ultrasonic transducer for cleaner
Part No |
Static capacity |
Resonance frequency |
Resonance impedance |
Max input power(W) |
Diameter of radiating surface(mm) |
Diameter of ceramic elements(mm) |
Connecting tap |
AVT-7950D-20H |
5300 |
20 |
25 |
100 |
79 |
50 |
M10×1 |
AVT-6750D-25H |
5300 |
25 |
25 |
120 |
67 |
50 |
M10×1 |
AVT-6945D-25H |
4100 |
25 |
25 |
90 |
69 |
45 |
M10×1 |
AVT-5938D-25H |
3800 |
25 |
25 |
60 |
59 |
38 |
M10×1 |
AVT-5938D-28H |
3800 |
28 |
25 |
60 |
59 |
38 |
M10×1 |
AVT-4535D-28S |
3000 |
28 |
25 |
50 |
45 |
35 |
M10×1 |
AVT-4935D-40H |
3000 |
40 |
25 |
50 |
49 |
35 |
M10×1 |
