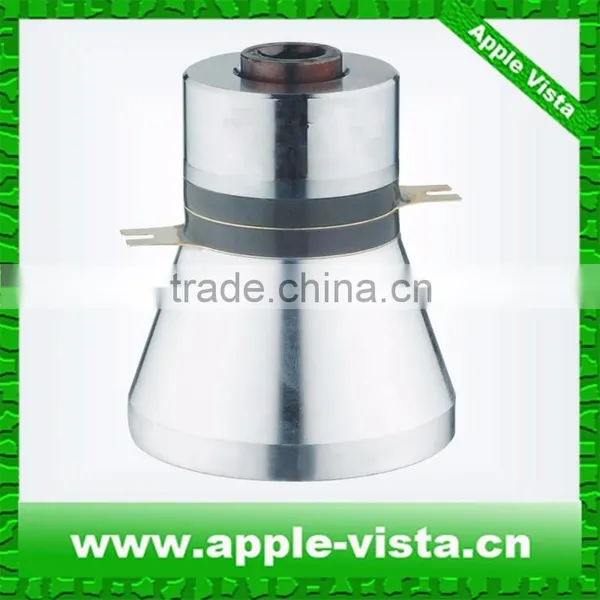

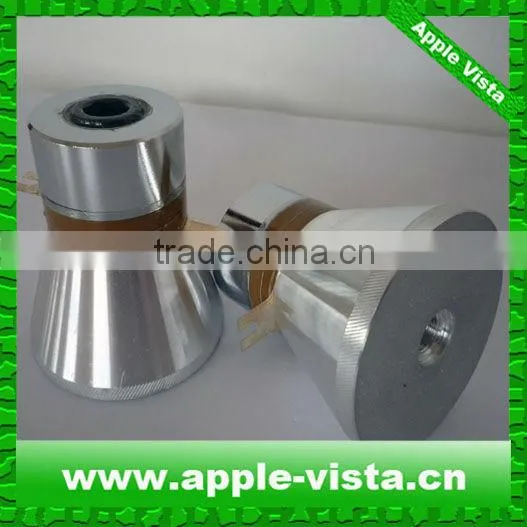

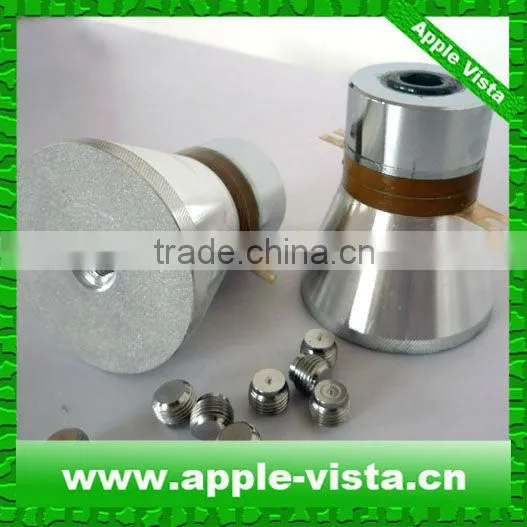

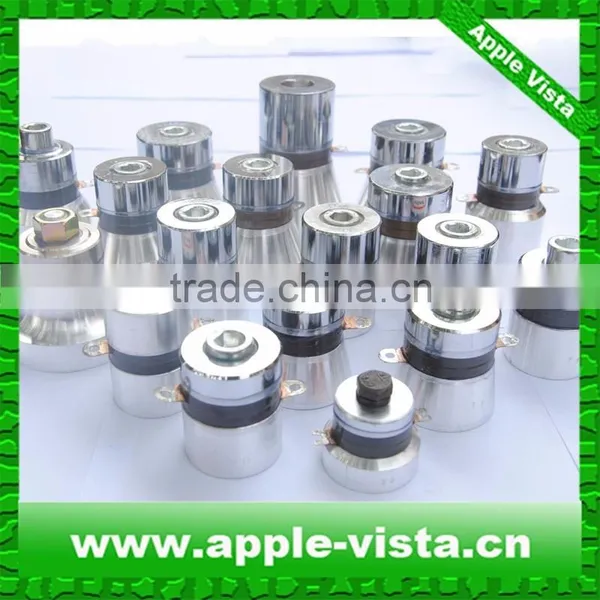

Piezoelectric Material Ceramic Ring for 80khz Ultrasonic Transducer
1.High Efficiency: of high mechanical factor. High transfer efficiency is obtained
when working in resonance frequency.
2.Big amplitude: designed and chosen by computer, high rate in oscillation speed and
big amplitude in front operculum.
3.Big Power: under the function of the pre-stressed force screw rod, the piezoelectricity
ceramics can work freely in the highest level of power.
4.In good heat resistance: of small resonance impedance, less heat produced, can be
used in a wide range of temperature with long life and high reliability
Ultrasonic Transducer Application
for Ultrasonic Cleaning,
for Ultrasonic Welding,
for Tooth-brushing,
Piezoceramic Vibrator
for beauty devices
Piezoceramic Vibrator for beauty devices
Ultrasonic transducer for cleaner
Part No |
Static capacity |
Resonance frequency |
Resonance impedance |
Max input power(W) |
Diameter of radiating surface(mm) |
Diameter of ceramic elements(mm) |
Connecting tap |
AVT-7950D-20H |
5300 |
20 |
25 |
100 |
79 |
50 |
M10×1 |
AVT-6750D-25H |
5300 |
25 |
25 |
120 |
67 |
50 |
M10×1 |
AVT-6945D-25H |
4100 |
25 |
25 |
90 |
69 |
45 |
M10×1 |
AVT-5938D-25H |
3800 |
25 |
25 |
60 |
59 |
38 |
M10×1 |
AVT-5938D-28H |
3800 |
28 |
25 |
60 |
59 |
38 |
M10×1 |
AVT-4535D-28S |
3000 |
28 |
25 |
50 |
45 |
35 |
M10×1 |
AVT-4935D-40H |
3000 |
40 |
25 |
50 |
49 |
35 |
M10×1 |
1.How can we get the quote?
Of course,First send the detailed drawing to my my email.
2. How long will we arrange production?
Normally we need about 10-20days,according to your total quantities.
3.Do you have MOQ?
Of course we have our MOQ,but for our first cooperation,we would like to help you product at any quantities.
4.How to calculate the shipping charge?
When we make the official quotation,we will give our local charge for your reference.
If you have your own agent,that would be better
.
5.How we can know that our products are in production?
After we received your payment,we will take photos about the whole production process at any time if you need.
6.What's the trade terms and payment terms?
We usually quoted for FOB/Ex-work/CIF price.
Payment we can accept TT in advance/Paypal account/western union....
7.How to contact us?
If you trust us,pls send your detailed drawing sheet to the following email: sales2 at
I will provide our quotation within 24hours.
