Specifications
1.Cheapest price2.Customize upon customer's enquiry
3.fast shipping
4.excellent quality
5.Wildy used in various field

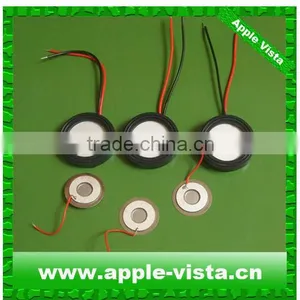

Piezoelectric ceramic ring
Specification :
piezo ceramics,piezoelectric ceramics, piezo ceramic,piezoelectric ceramic,piezoelectric ceramics,piezo ceramics,piezoelectric ceramic polymer glass ceramics,piezoelectric effect,
piezoelectric sensor,piezoelectric transducer,piezoelectric materials,piezo ceramic,piezoceramic,piezoelectric actuator,piezoelectric sensors,piezoelectric transducers,piezoelectric crystals,piezoelectric material
1) Resistance to cavitations erode:
a) Intensity of silver adhesion:
i) Horizontal: ≥500g
ii) Vertical: ≥250g
b) Stainless steel pellicle replaces traditional electroplating
2) Excellent electro-acoustic conversion:
a) Mechanical: ≥1,200qm
b) Conversion efficiency: Kp: ≥60%; Kt: ≥46%
c) Dissipation factor (tgδ): ≤0.5%
d) Resonant impedance (Ro): below 2Ω
e) High mist output rate
3) Splendid practicability:
a) Temperature range: 5 ~ 60oC
b) Working voltage: 24 ~ 48V
c) Working current: 450 ~ 650mA
d) Long working time
Piezoceramic for Ultrasonic Cleaning
Part No |
Dimension |
Frequency |
Capacitance |
Resistance |
Kp |
d33 |
Dielectric loss |
P001 |
Φ50x3 |
45.4 ± 5% |
6400 ± 5% |
3.4 |
0.51 |
250 |
0.4 |
P002 |
Φ50x3 |
45.4 ± 5% |
6400 ± 5% |
3.4 |
0.51 |
250 |
0.4 |
P003 |
Φ50x3 |
45 ± 5% |
7200 ± 5% |
<3 |
0.54 |
250 |
0.6 |
P004 |
Φ45x3 |
50 ± 5% |
7000 ± 5% |
<3 |
0.62 |
280 |
0.4 |
