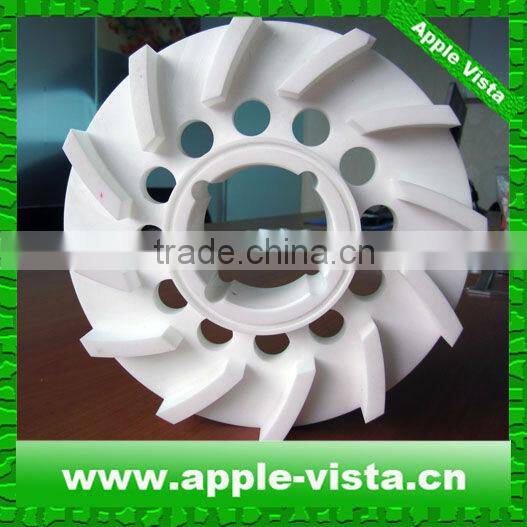

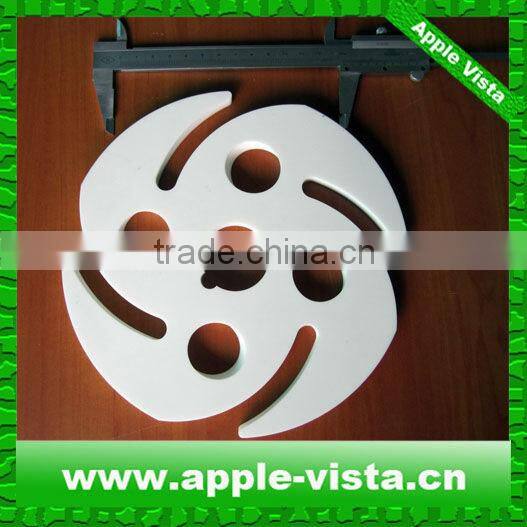

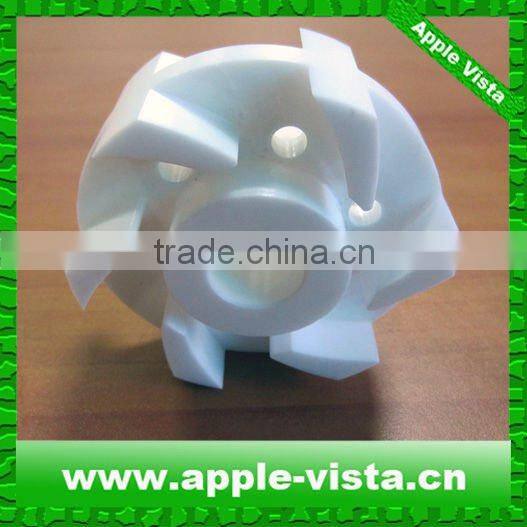

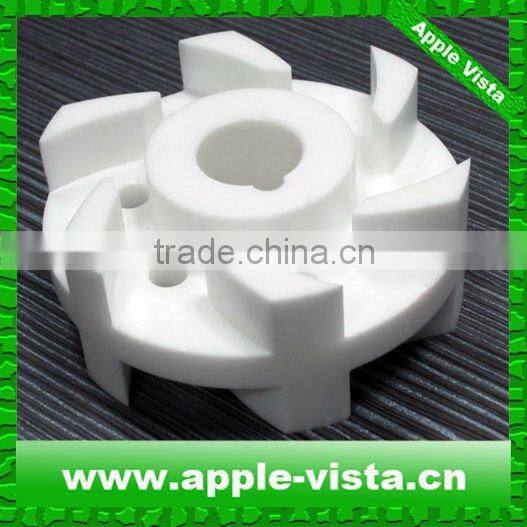

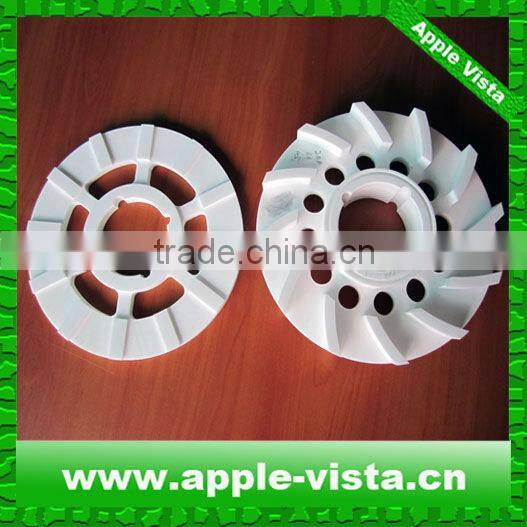

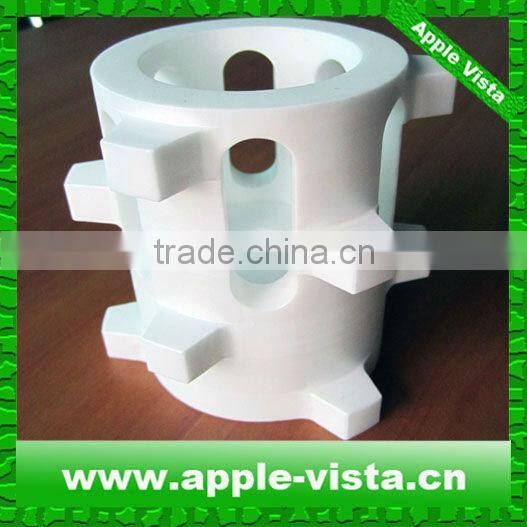

Alumina Ceramic Structure for Machinery,anticorrosion,hardness,long Servic Life

Alumina Ceramic Structure for Machinery,anticorrosion,hardness,long Servic Life thumbnail-1
Alumina Ceramic Structure for Machinery,anticorrosion,hardness,long Servic Life photo-1
US$ 500 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Type:
Ceramic Tubes
Application:
Structure Ceramic, Industrial Ceramic
Contact Supplier Request Quote Chat Now
Shenzhen Apple Vista Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Type Ceramic Tubes
Material Alumina Ceramic
Model Number AV-Alumina ceramic structure for milling
Brand Name AV

Specifications

Alumina ceramic structure
durable and efficient media
for ball milling and attrition milling
Best price with good quality

                     Alumina ceramic structure for machinery

                                99.7% Alumina ceramic

Features:

1) A variety of specifications available.

 2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) Stiffness texture

6) Used in all electric products and electric heating products

7) OEM, ODM and OBM are welcomed

 We can supply the products according to customer's drawings, samples and performance requirement.





Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc.

Material Unit Steatite ceramics 95% alumina ceramics 99.5% alumina ceramics
Density G/cm3 2.7 3.65 3.9
Highest application temperature °C 1100 1500 1800
Bending strength Mpa 150 300 340
Compressive strength Mpa 900 3400 3600
Hardness HV0.5 800 1800 2000
Insulation breakdown strength KV/mm 10 15 18
Processing technology
Process range (mm)
Outside Diameter 1---300
Inside Diameter 0.5---300
Length 0.5---1200
Accuracy of working (mm)
Perpendicularity 0.01
Concentricity 0.01
Roundness 0.005
Straightness  0.005
Parallelism 0.01
Planeness 0.005
Roughness  0.05
Fit clearance 0.005



We can design and produce as per drawings or sizes. welcome to Contact.
