2015 New Rubber Sheet Cutting Machine/rubber Cutter

2015 New Rubber Sheet Cutting Machine/rubber Cutter photo-1
2015 New Rubber Sheet Cutting Machine/rubber Cutter photo-2
2015 New Rubber Sheet Cutting Machine/rubber Cutter photo-3
2015 New Rubber Sheet Cutting Machine/rubber Cutter photo-4
2015 New Rubber Sheet Cutting Machine/rubber Cutter photo-5
2015 New Rubber Sheet Cutting Machine/rubber Cutter photo-6
US$ 2,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rubber Cutting Machine
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rubber Cutting Machine
Place of Origin Shandong, China
Brand Name Qingdao Junlin
Model Number XQL-80/XQL-160
Voltage as per order
Power(W) as per order
Dimension(L*W*H) as per order
Weight as per order
Certification CE ISO SES
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

      2015 New rubber sheet cutting machine/rubber cutter

This  Vertical Rubber cutting machine  is mainly used to cut the natural rubber, synthetic rubber, and other plastic materials into gommures/pieces,which is convenient to mix;especially it is suitable to be installed near the rubber mixer to cut small piece of rubber.

2.Features of  Vertical rubber cutter



1.This rubber bale cutter mainly consists of cutting knife,frame,cylinder,base,auxiliary table,sydraulic system and electric system.



2.The nylon plate is installed on the base under the cutting knife for protecting the edge of the cutting knife.



3.When cutting the raw rubber,put the raw rubber under the cutting knife,the press the start button,the knife can cut the rubber.



5.Two limited switches are installed on the frame to control the reversal valve to change the movement direction of the knife,at the same time,it protects the cover of the cylinder.

3.Main Technical Parameters of  Vertical rubber cutter



Model

XQL-8

XQL-16

Knife Width(mm)

660

1000

Knife Stroke(mm)

680

680

Diameter of the Piston(mm)

150

150

Time Taken by the Stroke(s)

16-25

16-25

Motor Power(KW)

5.5

5.5

Overall Dimension(mm)(L*W*H)

1900*720*2580

2240*720*2580

Machine Weight(Kgs)

1000

1600

Remarks

Can be equipped with working table according to cutomers’ requirements

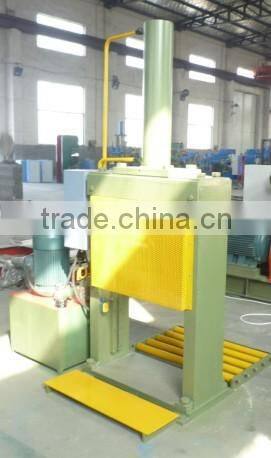

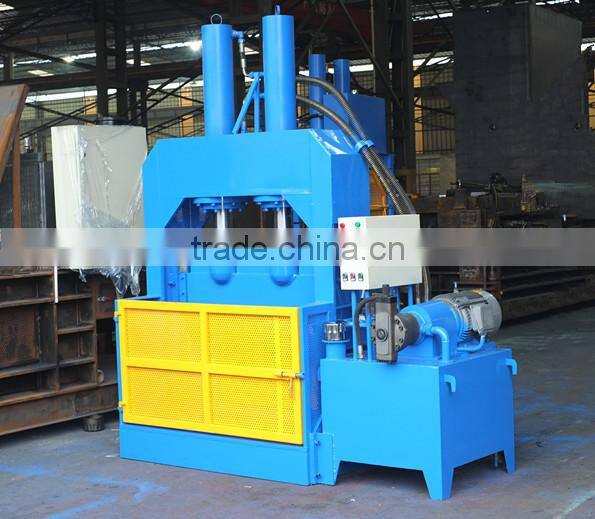

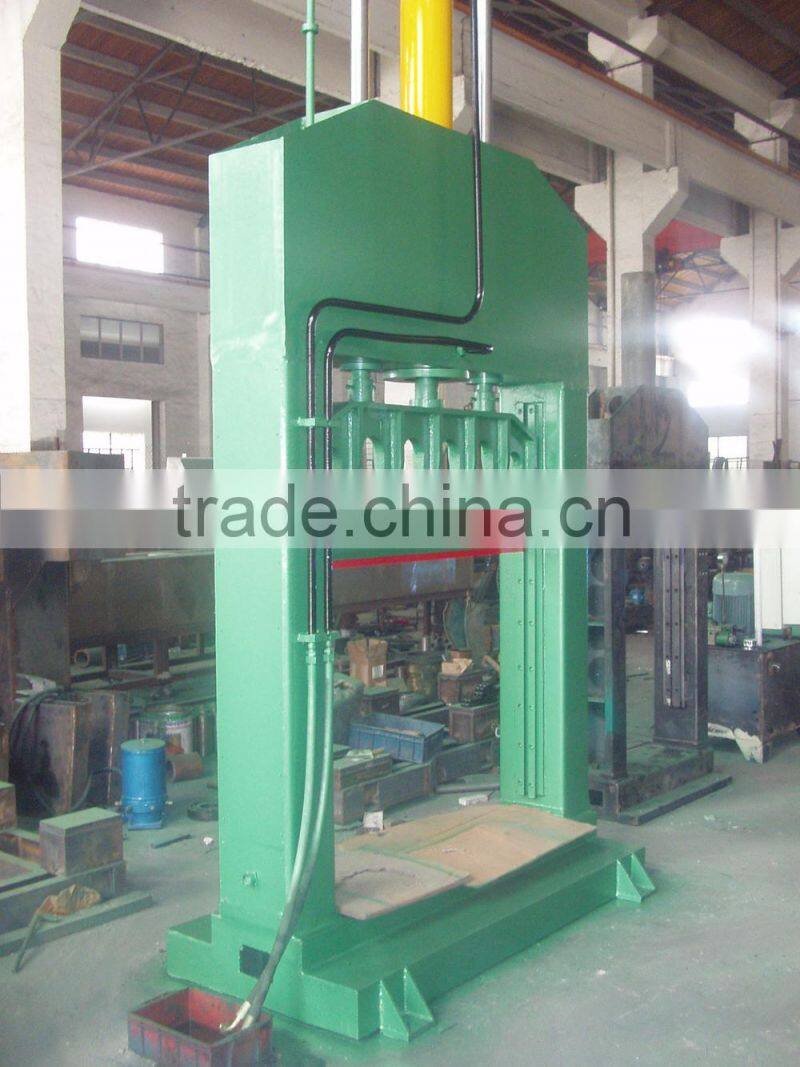

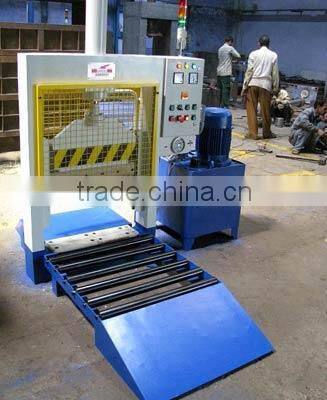

4.Picture of  Frame Type Plate Vulcanizer

2015 New rubber sheet cutting machine/rubber cutter2015 New rubber sheet cutting machine/rubber cutter2015 New rubber sheet cutting machine/rubber cutter
 2015 New rubber sheet cutting machine/rubber cutter



5.Our service



 1.One year guarantee for whole machines



 2.24 hours technical support by email



 3.Calling or door - to -door service



 4.Provide videos for each machine



 5.We will send one engineer to your factory to guide installation and test running the production line, until you can operate the machine skilled

 6.Our workshop and factory

2015 New rubber sheet cutting machine/rubber cutter

2015 New rubber sheet cutting machine/rubber cutter
2015 New rubber sheet cutting machine/rubber cutter

7.Our certificate







CE ISO9001 SGS







Welcome  to send inquiry and visit us to check the quality!
