Specifications
ceramic ferrule1.RoHS,REACH,ISO:9001
2.Low Concentricity
3.Good compatibility,reliability

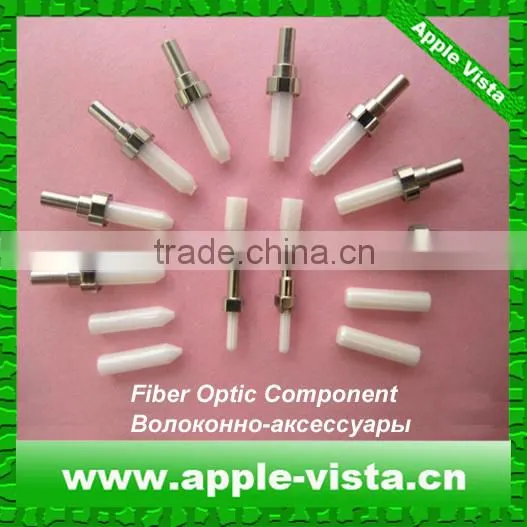

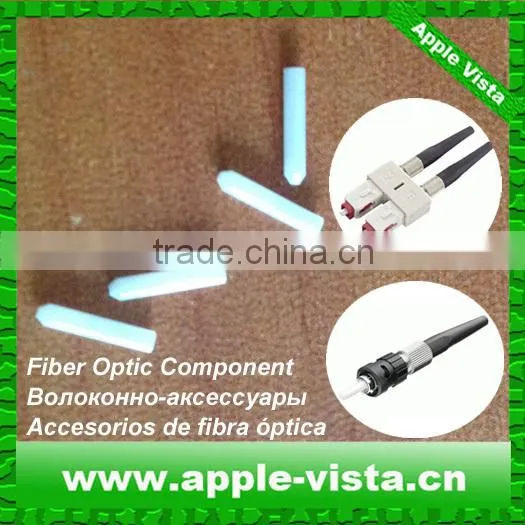

Fiber optic zirconia ceramic ferrule With or without flange
Brief Introduction
Ferrule is generally treated as the core part of the connector. Zirconia ceramic ferrules are recognized to have the best durability and reliability among various kinds of material. Ferrule is the best connection way for a fiber communication at present.
Materail
Ferrule: Zirconia Ceramic
Flange: Ni-Plated Cu
Feature
Optimized for SC, FC, ST connector
High quality and performance
High precision for concentricity, I.D., O.D.
Low insertion loss
High reliability by using zirconia
Compliant with RoHS and Telcodia-GR-326-CORE
SC ferrule SM & MM available
Application
1) SC, FC, MU, LC and other fiber optical connector;
2) Used in the active and passive components
Parameter |
Unit |
FC,LC,SC |
ST,MU |
MTRJ,MPO |
|||||||
SM |
MM |
SM |
MM |
SM |
MM |
||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
||
Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
Operating wavelength |
nm |
1310,1510 |
1310,1510 |
1310,1510 |
|||||||
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
|||||||
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
|||||||
Operating temperature |
°C |
-40~+75 |
-40~+75 |
-40~+75 |
|||||||
Storage temperature |
°C |
-45~+85 |
-45~+85 |
-45~+85 |
|||||||
Cable diameter |
mm |
Φ3.0,Φ2.0,Φ0.9 |
Φ3.0,Φ2.0,Φ0.9 |
Φ3.0,Φ2.0,Φ0.9 |
|||||||
