Rubber Processing Open Mixing Milling Machine
Function:
Mainly for rubber warming, plasticating, mixing, and sheeting.
Features:
1. Structure: two types, casting structure and fabricated structure
2. Rollers: made of alloy chilled cast iron, two kinds of construction, cored & smooth, drilled & smooth

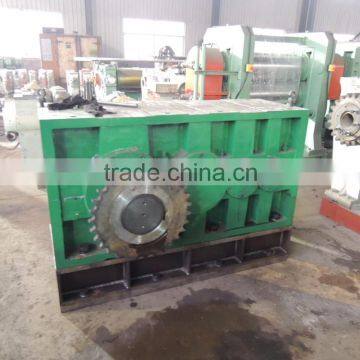

3. Reducer: Double output shaft. Noise is low, and using life is long.
4. Bush: three types, nylon, copper, and roller bearing
5. Nip adjustment: two types, manual and electric
6. Lubrication of roll: two types, oil lubrication and grease lubrication
7. Emergency stop device: with emergency button and lever, to ensure the safety of operator and equipment.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
| Model | XK-660 | |||||
| A | A1 | A2 | A3 | A4 | ||
| Working Dia. of Rolls (mm) | Φ660 (26″) | Φ660 (26″) | Φ660 (26″) | Φ660 (26″) | Φ660 (26″) | |
| Working Length of Rolls (mm) | 2130 (84″) | 2130 (84″) | 2130 (84″) | 2130 (84″) | 2130 (84″) | |
| Working Linear Speed of Front Roll (m/min) | 28.6 | 25.8 | 31.6 | 30.81 | 25 | |
| Friction Rotio of Front and Rear Roll | 1:1.24 | 1:1.09 | 1:1.06 | 1:1.09 | 1:1.08 | |
Driving Motor Power (kW) | 245 | 180 | 200 | 315 | 200 | |
| Capacity per Batch (kg) | 165 | 165 | 165 | 165 | 165 | |
| Construction of Rolls | Front Roll | Cored, Smooth | Drilled, Smooth | Drilled, Smooth | Drilled, Smooth | Drilled, Smooth |
| Rear Roll | Cored, Smooth | Drilled, Smooth | Drilled, Smooth | Drilled, Smooth | Cored, Smooth | |
| (half or full grooved) | ||||||
| Base Structure | Casting, Separated | Casting, Separated | Fabricated, Separated | Fabricated, Separated | Casting, Integrated | |
| Side Frame Material | HT250 | HT250 | ZG230-450 | ZG230-450 | ZG230-450 | |
| Bearing Type | Roller Bearing | Roller Bearing | Roller Bearing | Roller Bearing | Roller Bearing | |
| Remarks | Motorised Adjusting, | Motorised Adjusting, | Manual Adjusting, | Manual Adjusting, | Motorised Adjusting, | |
| Middle Hardness Tooth Surface, Double Output Shaft Gear Unit | Middle Hardness Tooth Surface, Double Output Shaft Gear Unit | Hardness Tooth Surface, Single Output Shaft Gear Unit | Hardness Tooth Surface, Single Output Shaft Gear Unit | Hardness Tooth Surface, Double Output Shaft Gear Unit | ||
Quality Control:
Before package, load test will be carried out, to ensure the customer can use the machine immediately after installation.
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas
3. Any demand, we will give feedback within 24hours.
Any question, please feel free to contact with me.
Warmly welcome to make a field inspection of our factory.
