          new rubber tires calender machine with high quality and high saving energy

1.Introduction of rubber calender

The machine is chiefly applied to put rubber on cord fabric, canvas or other fabrics; to rubberize fabrics; or to make rubber sheet.



The machine is driven by DC motor with a wide range of speed adjustment. Working linear speeds can be steplessly regulated within the fixed range for different applications. The rolls are equipped with lubrication failure alarm device, as well as nip display and speed display.



The rolls are made of chilled cast iron of vanadium and titanium alloy. The roll face is hard and anti-wear. For heating up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.



The rolls can be arranged in L, Γand I forms. The top roll has a camber that can eliminate bending impact on the roll in working process. Thus, it is possible to make products with same thickness along axial direction.



 The transmission system adopts hard gear speed reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.



The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment.

2.Features of Rubber Calender



1.   The rolls are made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear. To heat up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.



2. The rolls are arranged in I, and L forms. The upper rolls have roll cambers that can eliminate bending impact on rolls during working process. Thus, it is possible to make products with same thickness along axial direction



3. The transmission system adopts a hard facing gear reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.



4. The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment.

3.Main Technical Parameters of Two Roll Rubber Calender







XY-2-230

XY-2-250

XY-2-300

XY-2-360

XY-2-400

XY-2-450

Roll diameter (mm)



230



250



300



  360



 400



   450

Working length (mm)



  635



   720



  800



  1120



  1200



 1400

Friction ratio

1:1

1:1.17

1:1

1:1.17

1:1

1:1.25

1:1

1:1.33

1:1

1:1.38

1:1

1:1.32

Mid roller linear(m/min)

3-14.5



3-14

5-24

7-20

88-23

8-23

Bearings form

Rolling bearings

Rolling bearings

Rolling bearings

Rolling bearings

Rolling bearings

Rolling

Bears

Mini thickness of products

(mm)





0.2





0.2





0.2





0.2





0.2





0.2

Motor power(kw)

11

11

18.5

30

37

45





 4.Main Technical Parameters of Three Roll Rubber Calender





Model

XY- 630

XY- 630

XY-630

XY- 1120A

XY-1120A

XY-1120A

XY-1400

XY-1500

XY-1730

XY-2130

XY-2430

Roll dia

mm

230

360

400

450

610

710

810

Roll working length

mm

630

1120

1400

1500

1730

2130

2430

Roll ratio



1:1:1

1:1.42:1

1:1:1

0.733:1:1

0.733:1:0.733

1:1:1

1:1.383:1.383

1:1.383:1

1:1:1

1:1.5:1

1:1:1

1:1.4:1

1:1:1

1:1:1

1:1.5:1

Middle-roll linear speed

r/min

0.8-8

3-21.06

3-26.39

2.62-26.2

5.4-54

8-50

2-20

Adjusting nip range

mm

0-7

0-10

0-10

0-6

0-20

0-20

0.5-25

Min.Calendering product thickness

mm

0.2

0.2

0.2

0.2

0.15

0.15

0.5

Calendering product width

kg

100-500

500-

1200

1400

1400

1900

2150

Motor power

kW

7.5

45

55

75

132

185

220

Overall dimensions

mm

3168

5550

6500

7420

7010

7650

9300

mm

890

1640

1500

2200

3950

4560

3150

mm

1830

2120

2440

2900

3730

4080

5200

About weight

t

~2.6

~11

~22

~26

~52

~67

~94





 5.Main Technical Parameters of Four Roll Rubber Calender





Model

XY-3I 630

XY-3I 1120A
XY-3 1120A
XY-3l1120A

XY-3I 1400

XY-3I 1200
XY-3I 1500

XY-3I 1730

XY-3I 2130

Roll diameter (mm)

230

360

400

450

610

710

Roll working length (mm)

630

1120

1400

1200(1500)

1730

2130

Roll speed ratio

1:1:1
1:1.42:1

1:1:1
0.733:1:1
0.733:1:0.733

1:1:1
1:1.383:1.383
1:1.383:1

1:1:1
1:1.5:1

1:1:1
1:1.4:1

1:1:1
1:1.48:1

Middle-roll linear speed (m/min)

7.97

7.0-21.06

8.8-26.39

8.36-25.08

5.4-54

8-50

Adjusting nip range (mm)

0-7

0-10

0-10

0-6

0-20

0-20

Min.Calendering product thickness (mm)

0.2

0.2

0.2

0.15

0.15

0.15

Calendering product width (mm)

100-500

500-920

1200

1100(1400)

1500

1900

Motor power (kw)

7.5

40/13.3

55/18.3

75/25

132

185

Overall dimensions (mm)

2570×740×1500

5550×1640×2120

6500×1500×2440

7120(7420)×2200×2900

7010×3950×3730

7650×4560×4080

Weight (kg)





∼27000

∼52000

∼67000







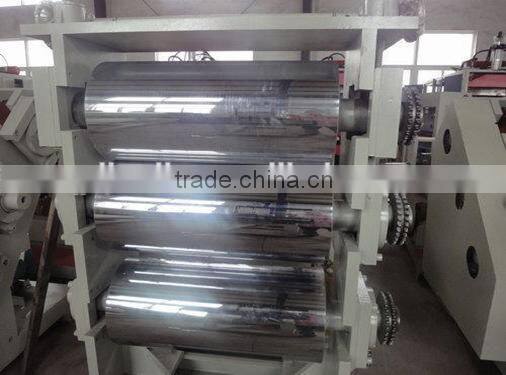

6.Picture of Frame Type Plate Vulcanizer

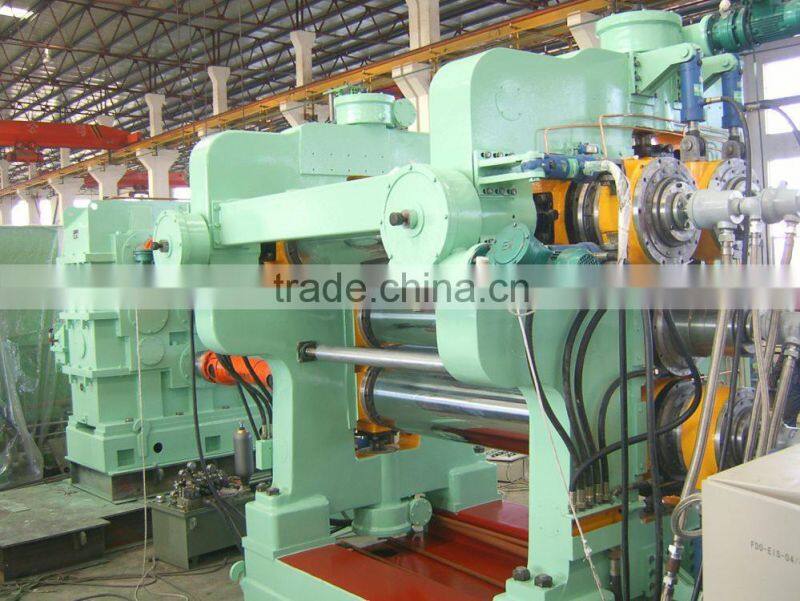

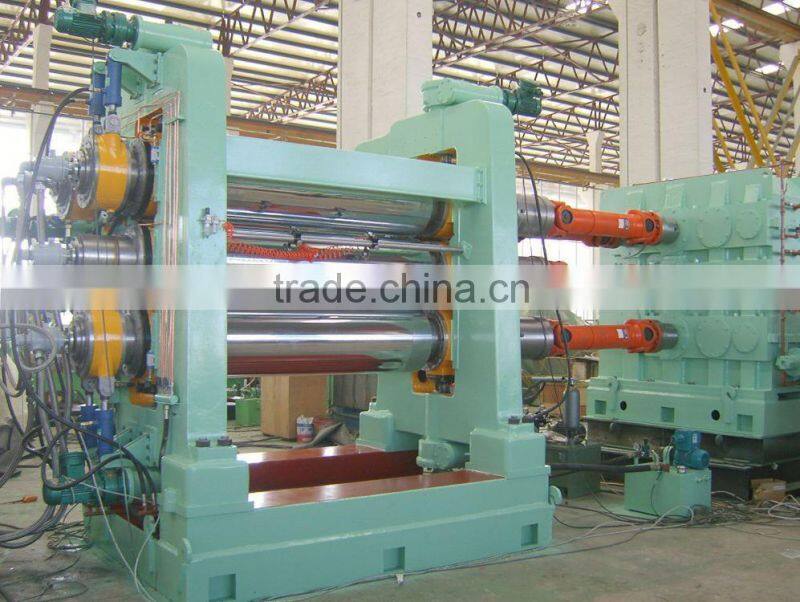

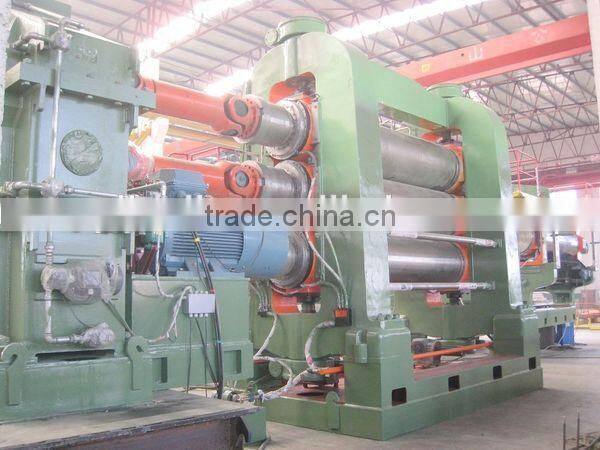

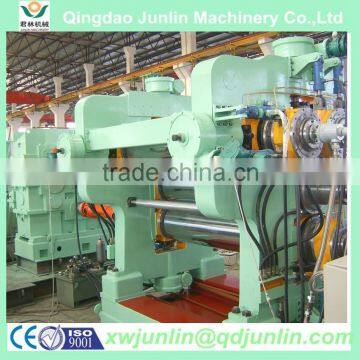

low invest high profitability new rubber tires calender machine with high quality and high saving energy

7.Our Service



1.One year guarantee for whole machines



 2.24 hours technical support by email



 3.Calling or door - to -door service



 4.Provide videos for each machine



 5.We will send one engineer to your factory to guide installation and test running the production line, until you can operate the machine skilled



8.Our workshop and factory



7.Our certificate



CE ISO9001 SGS
