Specifications

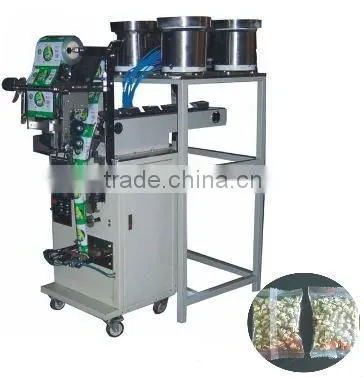

This machine can equip with multi-vibration slabs, and it can pack different materials in one bag. The user can choose the vibraAutomaticly Screw Counting Packing Machinery
The set of packing machine is apply to pack varietal screw , candy, pill etc.it is can count , make pouch, filling, sealing, print date. The machine is composed of filling tray of librate and packing machine. this machine have twelve filling tray of librate, it is albe to pack twelve material at the same time, and you can choose one or tow filling tray of librate.
1. uses the Japanese Mitsubishi PLC programmable control, and is equipped with the Chinese and English body man-machine operation contact surface, thus causes the equipment operation simply, adjustment convenient, the automaticity is high.
2. aims at the screw sample quantity body to make to order, the straight-line oscillation arrangement installment, with precise counts the control device, accurately guarantees each bag to be unmistakable.
3. warm uses the intelligence to control a meter pair of road to control horizontally, vertical seals the temperature, thus causes the seal reliably, the leak-proof quality good, the bag smooth, fine, the packing efficiency is high.
4. systems bags system uses step machine subdivides the technology, the automatic tracking, locates the sack the color code, with ease completes the system bag the operation, the adjustment, the speed quickly, the movement steady, the noise is low.
5. uses the advanced intelligence photoelectric follow-up and the automatic compensation function, guaranteed the sack two-sided printing design automatically to the version, enhances the packing material utilization ratio.
6. in fixed scope stepless adjustment packing speed, localization yawn engine off.
7. can automatically complete the system bag, the measurement, fills, seals gathers, shuts off, the register, the printing batch number and so on completely works.
8. uses the grain of type measurement, installs the material measurement regarding the density even bedding bag to be accurate, conforms to the national measurement standard.
Description of Production
This machine can equip with multi-vibration slabs, and it can pack different materials in one bag.
The user can choose the vibration slab according to his demand.
This machine is widely used in different fields, such as building trades, illimination etc.
Model |
DXD-350L |
Packaging material |
PET/AL/PE PET/PE NY/AL/PE NY/PE |
Output |
10-30bags/min |
Filling scope |
1-100pieces/bag |
Size of bag |
W:80-180mm L:80-240mm |
Packing Type |
Three-sides and four-sides, backside closure |
Total power |
1.8KW |
Electrical Source |
220V,Single-phase 50HZ |
Weight |
500Kg |
Cabinet Material |
Stainless Steel |
www echomachinery com
Main Characteristic
1. This machine is controlled by PLC (Mitsubishi).It has man machine operation interface for Chinese and English, which ensure simple operation, convenient adjustment and high automatic.
2. The vibration slabs, rectilinear vibration arrangement system, and precise counting control system are designed according to the screw sample to ensure each packing bag at high quality.
3. The heating temperature is controlled by intelligent temperature controller to ensure the seal more fastness, good leakproofness, fine packing quality and high efficiency.
4. The bag producing system adopts subdivision technique of step motor, which can automatic follow and localize the color code of packing bag, to ensure the operation simply, adjust conveniently, working stably and low noisy.
5. This machine adopts advanced intelligent photoelectricity tracking and automatic compensation function to ensure the printing pattern of both sides of packing bag in good closure, which improves the usage of the packing material.
6. The packing speed can be stepless adjusted in rated area and this machine can be stopped in location.
7. The process of bag making, measurement, filling, sealing, counting, printing are fully-automatic.
8. It adopts vibration-counting measurement to ensure the measuring of even-density material precisely,which is according with the national measuring standard.
