Specifications
Automatic Crisps Weighing Packing Machine1.high quality,good packing appearance
2.low noise
mpt shipment
4.PLC control
Automatic Crisps Weighing Packing Machine got favorable feednback from pur customers.www echomachinery com
It is suitable for automatic packing of lose nonstick, granular and thick powder production in the pharmarceeuical,the food.
Main Features:
1.Equipped with safety protection, conform to firms
safety management requires.
2.Use intelligent temperature controlling machine to
have accurate temperature control; ensure the
artistic and neat seal.
3.Use PLC control servo electrical double-pull or single
pull membrane structure, super touch screen
structure drives the control center; maximize the
whole machines control precision, reliability and
intelligentized level.
4.This machine completes the whole packing
procedure of measuring, loading materials, bagging, date printing, charging
(exhausting )and products transporting automatically as well as counting.
5.Have error indicating system, helping handle the trouble immediately.
6.Make block bags and hanging bags according to customers different requires.
Specifications and parameter
Items |
Content |
Packing speed |
70bags/min |
Bag size |
(L)60-300mm (W)90-200mm |
Bag making mode |
Pillow-type bag, standing bag, punch |
Range of measuring |
150-1300ml |
Max packaging film width |
420mm |
Thickness of film |
0.04-0.09mm |
Air consumption |
0.8Mpa 0.5cmb/min |
Main power/voltage |
2.2KW/220V 50Hz |
Dimension |
L1458×W920×H1392mm |
The weight of switchboard |
480kg |
Machine Details:
Z-Elevator Paltform

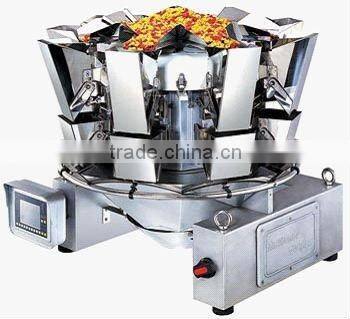

10 head computer weigher
Single weight rang |
10-1000g |
Drive |
Step motor |
Max weight |
3000g |
Pre-set style |
99 SPCS |
Average error for per bag |
0.2-0.7g |
(L W H) Dimension of machine |
1150* 950* 1129 |
Accurate range |
0.1-1.5g |
( L W H) Dimension of surface packing |
1400*1130* 1120 |
Max speed |
60 pouches/min |
Power( KW) /current(A) / net weight(kg) / gross weight(kg) |
1.5/9/300/370 |
Feeder Bucket Capacity |
1300ml |
Frequency / voltage
|
50/60HZ/200V |
Shape of feeder bucket |
Double no memory bucket |
Program screen |
5.7 inc |
