Specifications

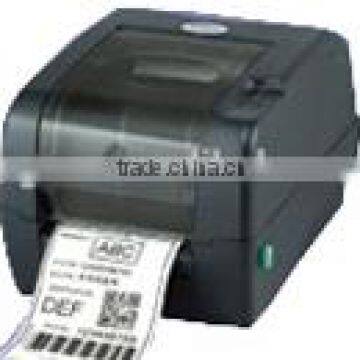

1> Thermal transfer & direct thermal Barcode Printer TSC 2472> The most popular type of barcode label printer
Thermal transfer & direct thermal Barcode Printer

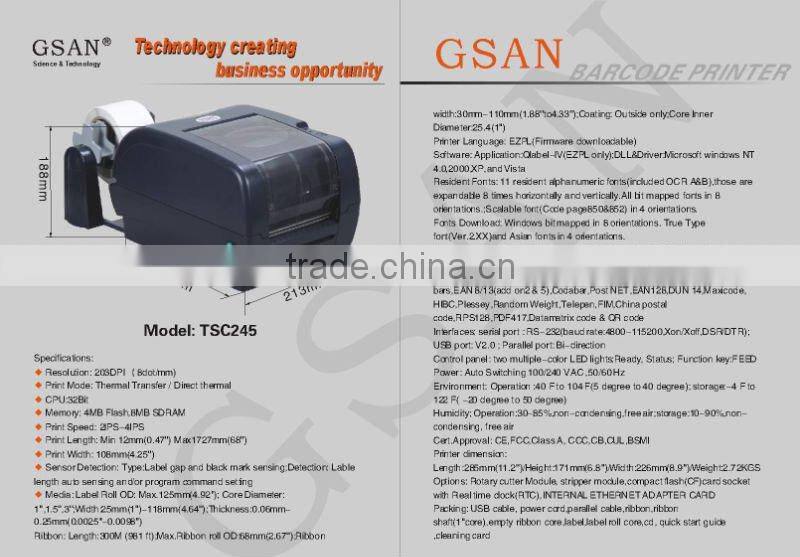

Specifications: | |
Resolution |
203DPI (8 dot/mm ) |
Print Mode |
Thermal Transfer/ Direct thermal |
CPU |
32 Bit |
Memory |
4 MB Flash, BMB SDRAM |
Print Speed |
2IPS-4IPS |
Print Length |
Min 12mm (0.47”)Max*1727mm(68”) |
Print Width |
108mm(4.25“) |
Sensor Detection |
Type: Label gap and black mark sensing, |
|
Detection: Label length auto sensing and Program command setting | |
Media |
Label Roll OD,Max,125mm(4.64”) Core Diamerer:1”,1.5”,3”. Width:25mm (1”)-118mm(4.64”). Thickness:0.06mm-0.25mm(0.0025”-0.0098”)
|
Ribbon |
Length:300M(981 ft); Max. Ribbon roll OD:68 mm(2.67”) Ribbon width:30mm-110mm(1.88” to 4.33”), Coating: outside only, Core inner |
Diameter |
25.4(1”) |
Printer language |
EZPL(Firmware downloadable) |
Software |
Application: Qlabel-IV(EZPL only),DLL& Driver: Microsoft windows NT 4.0,2000,XP and Vista |
Resident Fonts |
11 resident alphanumeric fonts (included OCR A&B),those are expandable 8 times horizontally and vertically. All bit mapped fonts 8. orientations. Scalable font (code page 850&852) in 4 orientations. |
Fonts Download |
Windows bit mapped in 8 orientations. True Type font (Ver.2XX) and Asian fonts in 4 orientations |
Image Handing |
BMP, PCX, Support ICO,WMF,JPG,EMF file Through software |
Barcodes |
Code39,code93,code128(subset A,B,C),UCC/EAN-128K-Mart,UCC/EAN-128, UPC A/E (add on 2&5),12 of 5,12of 5 with shipping bearer bars, EAN 8/13(add on 2&5),Codabar, Post NET,EAN 128,DUN 14 Maxi code, HIBC, Plessey, Random weight, Tele pen, FIM, China postal code RPS128,PDF417,Datamatrix code & QR code |
Interface serial port: |
RS-232(baud rate:4800-115200.Xon/Xoff, DSR/STR);USB port: V2.0; Parallel port: Bi-direction |
Control panel: |
Two multiple-color LED lights, Ready, Status, Function key, FEED |
Power |
Auto Switching 100/240 VAC,50/60 HZ |
Environment |
Operation:40 F to 104 F(5 to 40degree) Storage: -4 F to 122 F (-20 to 50degree) |
Humidity |
Operation:30-85%,non-condensing ,free air, Storage: 10-90%,non-condensing,free air |
Cert .Approval |
CE, FCC, Class A, CCC,CB,CUL,BSMI |

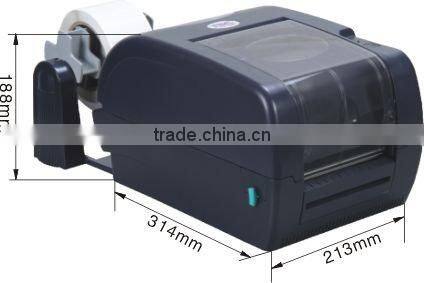

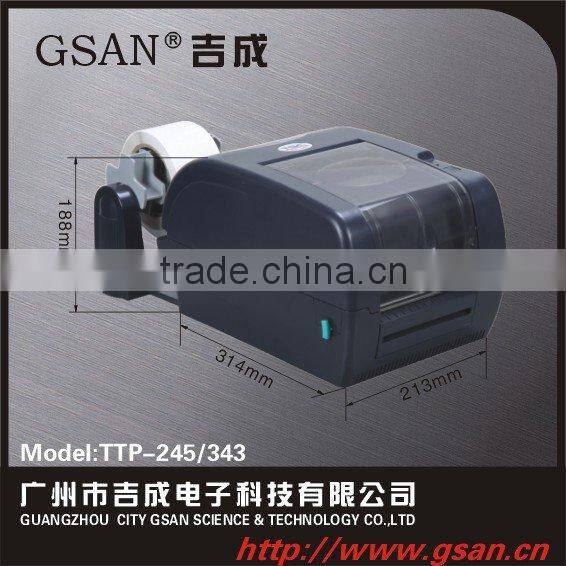

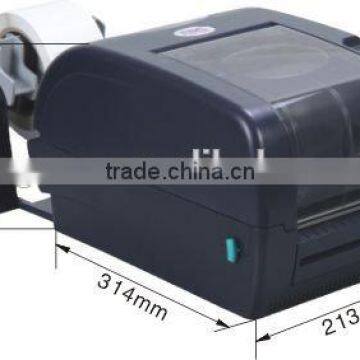

Print dimension | |
Length: |
285mm(11.2”) |
Height |
171mm(6.8”) |
Width: |
226mm(8.9”) |
Weight |
2.72kgs |
Options |
Rotary cutter module, stripper module , Compact flash (CF) card socket with real time dock (RTC), internal ethernet adapter card |
Packing |
USB cable, power card ,parallel cable, ribbon Ribbon shaft(1” core),empty ribbon core, Label, label roll core, CD, quick start guide, Cleaning card |
