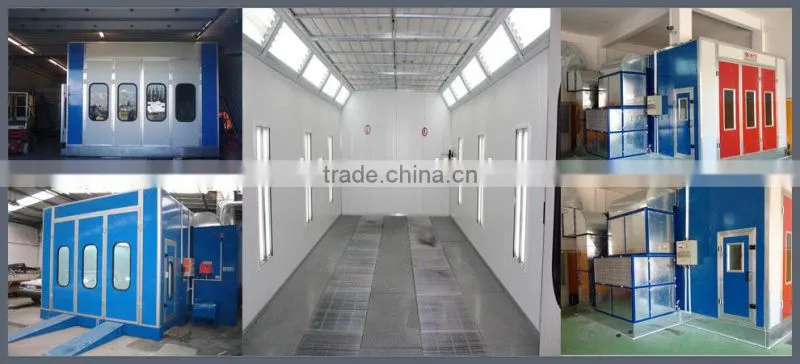

Help CenterCE Approved 2015 New Luxury Infrared(Electric) Heating Paint Spray Booth
Related Products
-
Auto Car Pre-paint Room JZJ-8400US$ 500 - 3,000MOQ: 1 Unit -
Four Pillars Hydraulic Lifting Machine Car Lift Equipment 3.5TON With CE and ISO CertificationUS$ 500 - 3,000MOQ: 1 Unit
-
Four Pillars 3.5Ton Hydraulic Lifting Machine With CE and ISO Certification Car Lift EquipmentUS$ 500 - 3,000MOQ: 1 Unit
-
Hydraulic 4Ton Two Pillar Lifting Machine Car Lift Equipment For Garage WorkshopUS$ 500 - 3,000MOQ: 1 Unit
-
Hydraulic Two Pillar 4Ton Two Column Car Lift Machine For Garage WorkshopUS$ 500 - 3,000MOQ: 1 Unit
| Outside Dimension (mm) | 7006*5350*3450(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) |
| Front Door(mm) | 3000*2600(W*H) | Service door (mm) | 1800*650(W*H) |
| Total Power | 9.5KW | ||
| Cabin system | Wall panel | 50mm EPS sandwich panel, steel sheet thickness: 0.426mm | |
| Ceiling panel | 0.8mm Galvanized steel sheet. | ||
| Basement | 300mm depth, two rows grids and three rows checkered plates. | ||
| Ramps | Two pieces 2000*600mm ramps | ||
| Glass | 4mm safety tempered glass | ||
| Windows | Rubber glass windows | ||

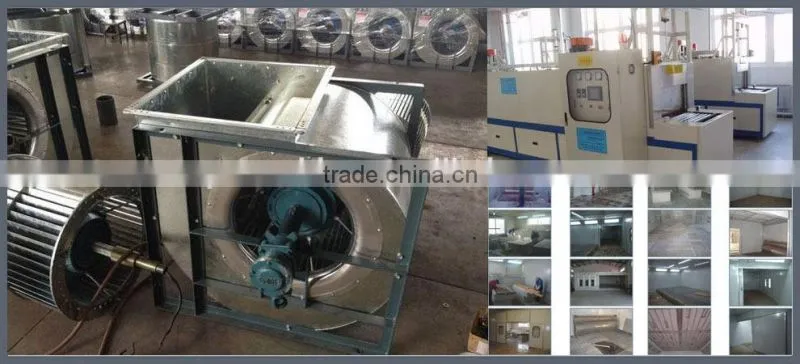

| Air Make-up System | Air Inlet fan system | 1*7.5kw turbo fan | |
| Exhausted fan system | For option | ||
| Ai capacity | 22000m3/h | ||
| Air Flowing speed | 0.25m/s in empty booth | ||
| Exhausted ducting | 4meters straight ducting, one 90°elbow and one 30°elbow. | ||
| Purification System | Pre-filter | G3 grade | |
| Ceiling filter | EU5 / F5 | ||
| Floor filter | green fiber glass filter / G3 grade | ||
| Exhausted fan Filters | fiber glass filter and active carbon | ||
| Heating System | Heat Exchanger | SUS304 material, argon arc welding. | |
| Heating burner: | BT14 diesel oil burner(gas burner for option) | ||
| Heating productivity | 140000Kcal/h | ||
| Spray to baking switch | Pneumatic air damper | ||
| Chimney ducting | 3 meters stainless ducting and one chimney elbow | ||
| Max heating temperature | 80℃ | ||
| fuel consumption | 6-8L/vehicle | ||
| Lighting System | Ceiling lights | 8 Units, each 4 * 36W Philips lamps. Total 1152 W | |
| Side lights | For option | ||
| Illumination | 900LUX | ||
| Controlling system | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge | |
Q1: What is your MOQ?
A1: Our MOQ is USD 5000.
Q2: What is your payment term?
A2: Air order: 100% T/T in advance.
Sea order: 30% T/T in advance, 70% balance before shipment; Or L/C at sight.
Q3: How long is the lead time?
A3: Air order: one week after receiving full payment;
Sea order: 3 weeks after receiving 30% down payment.
Q4: How many brands auto parts can you supply?
A4: Chinese auto brands: Chery, Geely, Great wall, SAIC;
Global auto brands: GM, VW, PSA.
Q5: Are you familiar with Russian Documentation?
A5: Yes, we are experienced.
Q6: Can you handle CIQ and legalization of documents for Egypt?
A6: Yes, we can obtain CIQ from local authority for exporting to Egypt and embassy process.
Payment Terms :
1.Payment: L/C or T/T (30% of the invoice value should be paid by T/T in advance when you confirm the order as deposit. The balance will be paid by T/T before loading) .
2.Delivry time: 1 week for air order; 3 weeks for sea order .
Practical Claim & Warranty Policy:
1. 9 months warranty(from BL date).
2. 120% FOB value for wrong parts; Cash Back.
1.On-time Delivery Guaranteed:0.1% FOB Penalty per day of delay.
2.Response: 24 hours
3.Credit payment available.
4.FFR(First Fill Ratio): >92%
5.Container Space Utility Ratio: 85%
6.Practical warranty: 5 days to settle for TT refund.
7.Quotation: 3 days(typical order of Chinese vehicle parts).
8.Documentation: world class.
