Specifications
1.CE,SGS,TUV,INTERERK2.more mounting ways,colors
3.more loading capacity
4.3 years quality warranty
5.HDPE blow mold craft

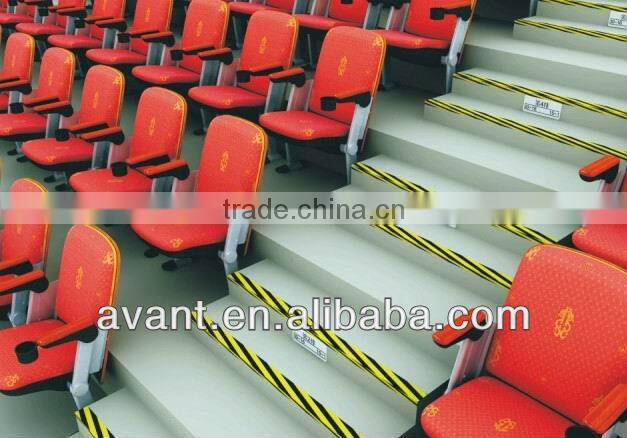

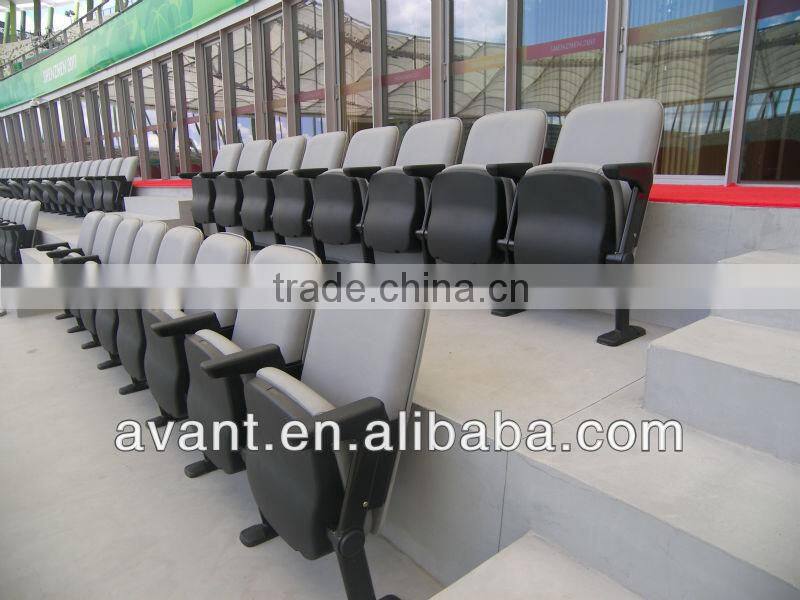

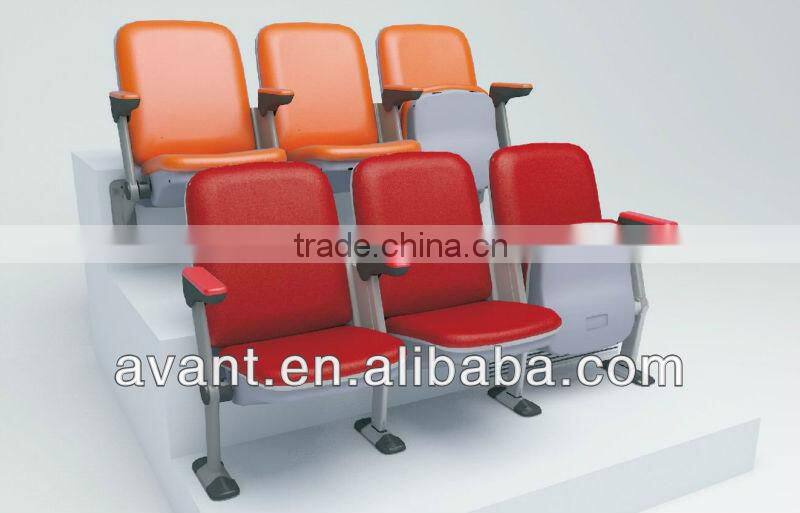

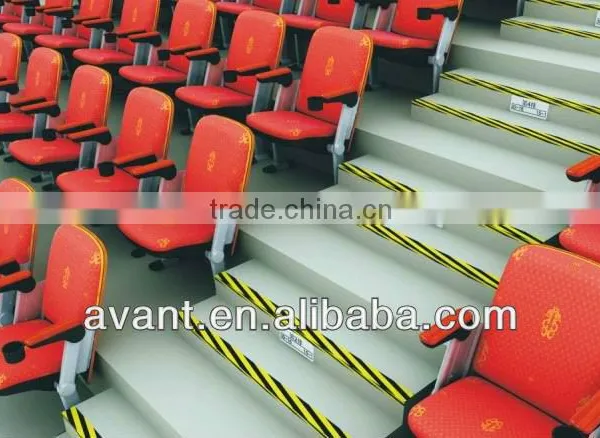

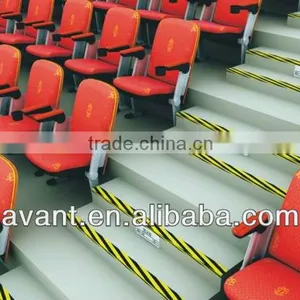

ergonomic indoor VIP stadium seat,retractable seating system,bucket seating for public sports like soccer,cricket,football
INSTRUCTIONS(HORIT)
FEATURES:
1, Base and cushion adopts high-density fire-resistant foam,The surface used soft high-density cold-pressed foam.
2, Silent folding mechanism can ensure the quickness when folding.For the spring ,we use 65MN high-quality spring to ensure the folding.
3, Ergonomic design allowing a better seating feel.
Other features:anti-punching,Resistance Acid And Alkali,water-proof,wearproof,anti-aging

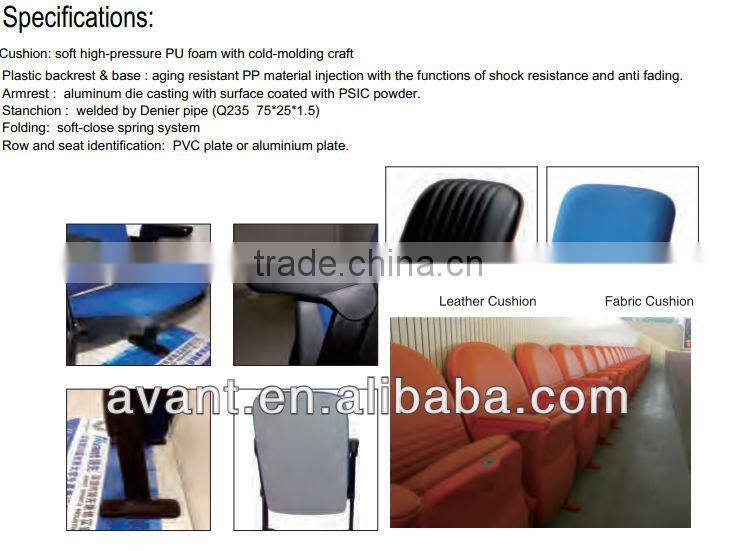

Tech Sheet:
No. |
Item |
Tech sheet |
1 |
Fabric/PU base and cushion can be your choices |
|
2 |
Size |

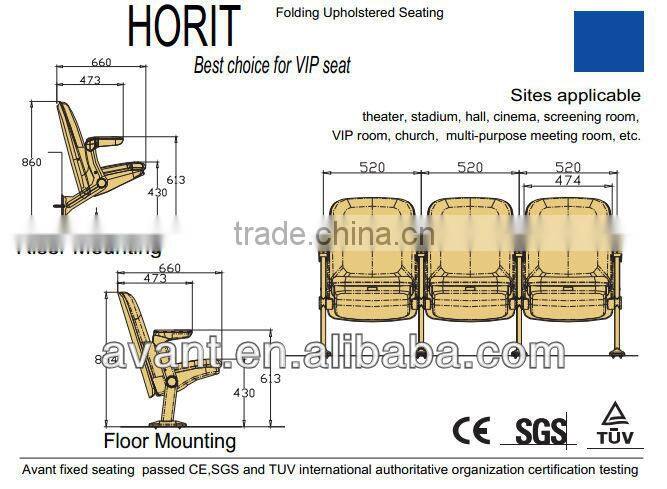

Center space: 520mm,Base width:474mm,Seat depth:660mm,Chair height :860mm, Base height:430mm |
3 |
Material Reqiurement |
Hot-pressed 10 mm environmental solid wood with the plastic part adopts PP injection craft. |
4 |
Seat Foam |
High-pressure soft polyurethane foam,Base Density ≥60Kg/m3,Base Thickness≥60mm,Back Density≥50kg/m3,Back Thickness≥50mm |
5 |
Fabric |
High-ranking Polyester fabrics |
6 |
Armrest |
Injection PP craft |
7 |
Stanchion |
Denier tube Q235(75*25*1.5) |
8 |
Folding mechanism |
Selent 65MN high-quality spring welding with Q235 steel plank |
9 |
Mounting |
Use M8×80expand bolt positioning mounting on the concret grandstand. |
Detailed Test:
(1).Seat Mechanical Property:
Reach GB2601-2003,GB/T10357 standard.
Seat Static Loading:Base loading 2000N,Back loading 760N,10 times;
Seat Durability Test :Base loading 950N×200000 times,Back loading 330N×200000times;
Seat Folding Durability test:10times/min~25times/min,200000times
Seat Surface Punching Test:Punching height 240MM ,10 TIMES
Seat Back Punching Test: Punching height 330mm,10 times
(2).Anti-aging Test:
According to GB/T16422 ,plastic tensile strength ,Breaking elongation impact strength rate.
Keep the rate is not less than 60% without the surface crazing and powdered .Besides no big change for the surface color,allochromasia is no less than level three.
Plastic tensile strength no less than 25 MPa.
Breaking elongation impact strength rate no less than 200%.
Punching strength no less than 10kJ/m2.
(3).Anti-low Temperature Strength Test(-20°C):
Tensile Strength ≥20Mpa
Breaking Elongation Impact Strength rate≥80%
Punching Strength ≥8kJ/m2
(4).Welding quality can reach up to GB/T13912-1992 international welding industrial standard.
(5).Seat service life more than 10 years.
(6).independent design for the base and back with the base folding to back.
(7).Stanchion design:High-quality material can be anti-rust,durable,no seeper and easy to clean.
(8).Ergonomic design allowing a better feeling for long time sitting.
All kinds of comprehensive performance must comply with the relevant national standards or industrial standards
Our projects including:
2008 Beijing Olympic Games
2010 China Shanghai EXPO
2010 F1 Korea
2011 Universiade Shenzhen(exclusive seating supplier)
2007-2012 F1 Singapore
2013 Myanmar Southeast Asian Games (exclusive seating supplier)
For more detail,please contact me ,we will give you full support for what you want.
