Product Name
RMT 200 Mud/slurry/sludge Desilter Desander
Product Introduction

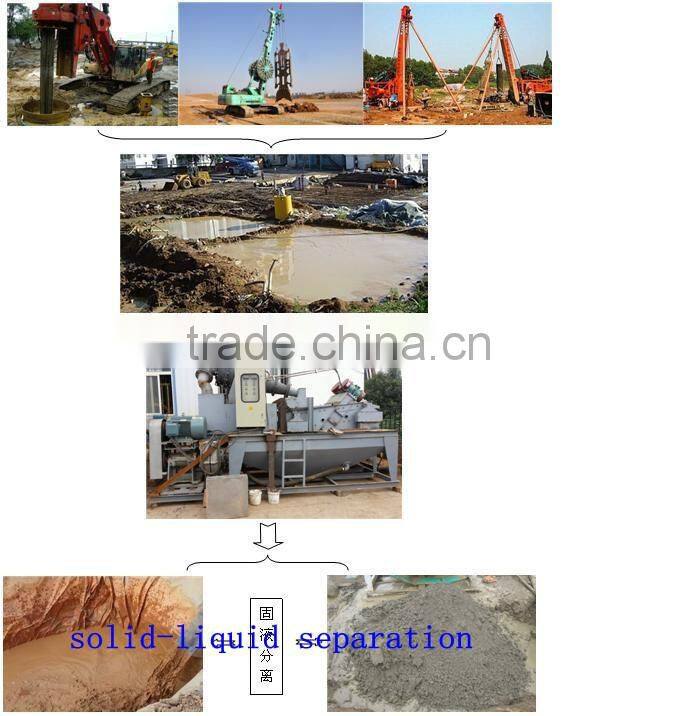

1. Our RMT series desander is mainly used in reversing or positive port in hydro-electric power,civil engineering, birdge pile foundation work and also used in tunnel shield to purify mud in cycle.
2. It can cut down construction cost and reduce enviromental pollution, increase efficiency of making hole. It is a necessary and very important equipment for civilized construction.
Product Specification
| Main technical parameters | RMT100A | RMT150 | RMT220 | RMT260 | RMT520 |
| Slurry feed capacity(m3/h) | 100 | 150 | 220 | 260 | 520 |
| Cut point (mm) | d50=0.04 | d50=0.04 | d50=0.06 | d50=0.074 | d50=0.074 |
| water content of screened slag (%) | < 30% | < 30% | < 30% | < 30% | < 30% |
| Min.sludge share(g/cm) | < 1.25 | < 1.25 | < 1.25 | < 1.25 | < 1.25 |
| Marsh funnel viscosity(s) | <40 | <40 | <40 | <40 | <40 |
| Soviet funnel viscosity(s) | <30 | <30 | <30 | <30 | <30 |
| Max. sludge share(g/cm³) | <1.4 | <1.4 | <1.5 | <1.5 | <1.5 |
| Total power(kW) | 20.7 | 24.2 | 48.6 | 58.6 | 58.6×2+3.6 |
| Main pump motor power(kW) | 18.5 | 22 | 45 | 55 | 55×2 |
| Vibration motor power(kW) | 1.1×2 | 1.1×2 | 1.8×2 | 1.8×2 | 1.8×6 |
| Transport size(L×B×H)(m) | 3.0×1.8×2.3 | 3.0×1.8×2.3 | 3.6×2.3×2.65 | 3.6×2.3×2.65 | -------------- |
| *Dimension(max)(L×B×H) (m) | 3.2×2.0×2.3 | 3.2×2.0×2.3 | 3.6×2.9×2.65 | 3.6×2.9×2.65 | 10×3.2×5.6 |
| Total weight (kg) | 2550 | 2620 | 4800 | 5000 | 13000 |
Product Advantage
1.High mud handling capacity, sand can be removed efficiently.
2.The oscillating screen has many advantages such as easy operation, low trouble rate, convenient installation and maintenance.
3.Slag charge screened by advanced straight-line oscillating system is effectively dewatered.
4.The adjustable vibrating force, angle and mesh size of the oscillating screen enable the equipment possess a high screening efficiency in all kind of strata.
5.The high screening efficiency of the machine can excellently support drillers raise bore and advance in different strata.
6.Energy saving efficiency is significant since the power consumption of the oscillating motor is low.

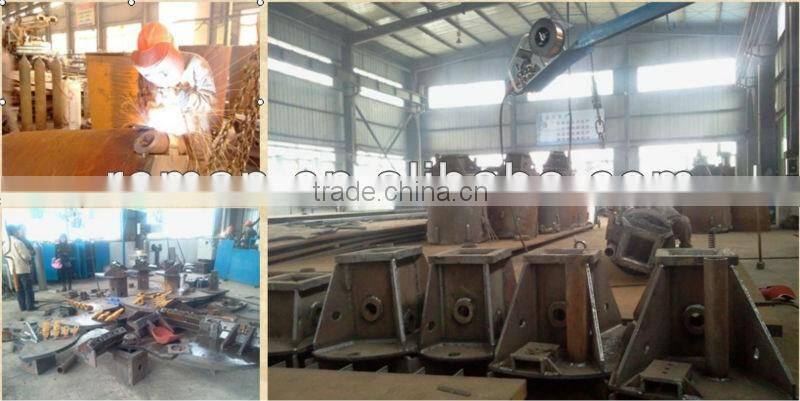

Xuzhou Reman Construction Machinery Remanufacture Co., Ltd is located in xuzhou, the earliest place to research and development, production base of rotary drilling rigs in China. The company is specialized in selling new rotary drilling rigs, full -rotary drilling rigs and other piling machine; has complete industrial chain of researching and development, manufacturing and marketing various buckets, supply spare parts; also engages in evaluating and trading second-hand rotary drilling rigs.
Xuzhou Reman Construction Machinery Remanufacture Co., Ltd has many year's technical advantages, professional and experienced maintenance team; with moving maintenance shop--special vehicle for rigs field service; and advanced testing equipment, professional repairing workshop, spare parts warehouse, perfect testing methods and management system, all of these ensure the quality of our service and woke efficiency.

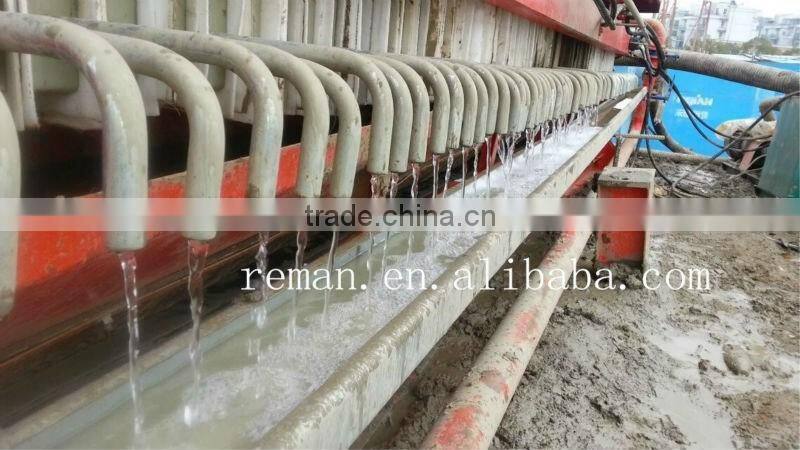

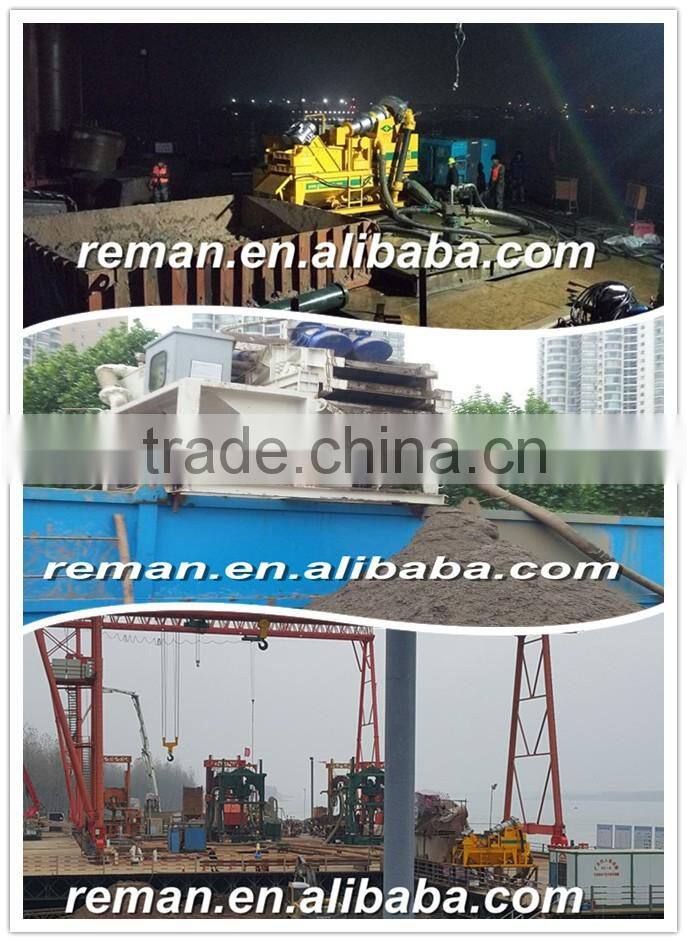

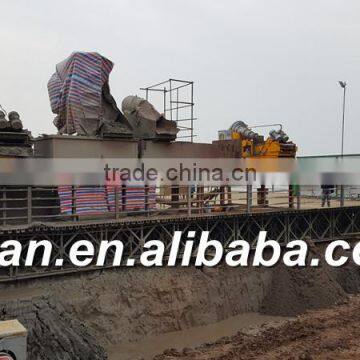

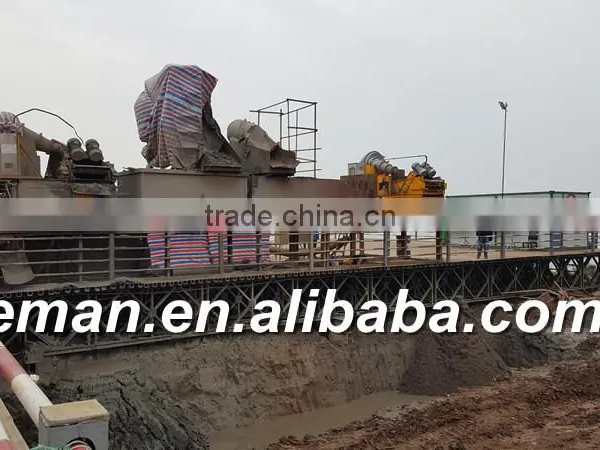

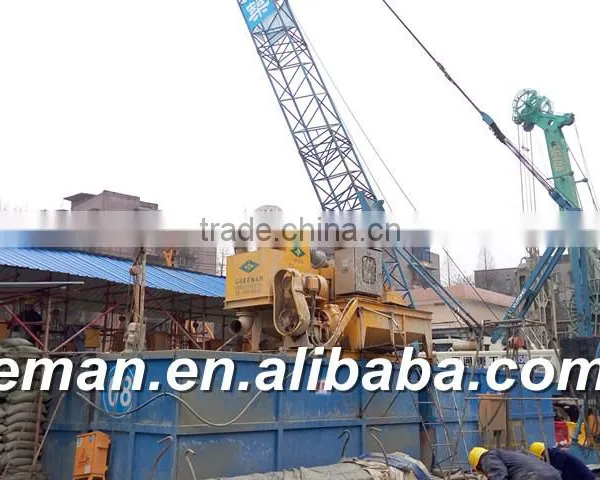

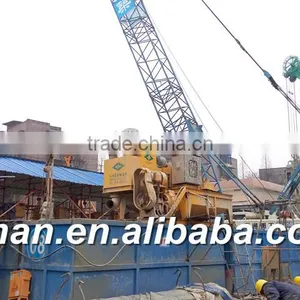

Construction Cases
Certifications

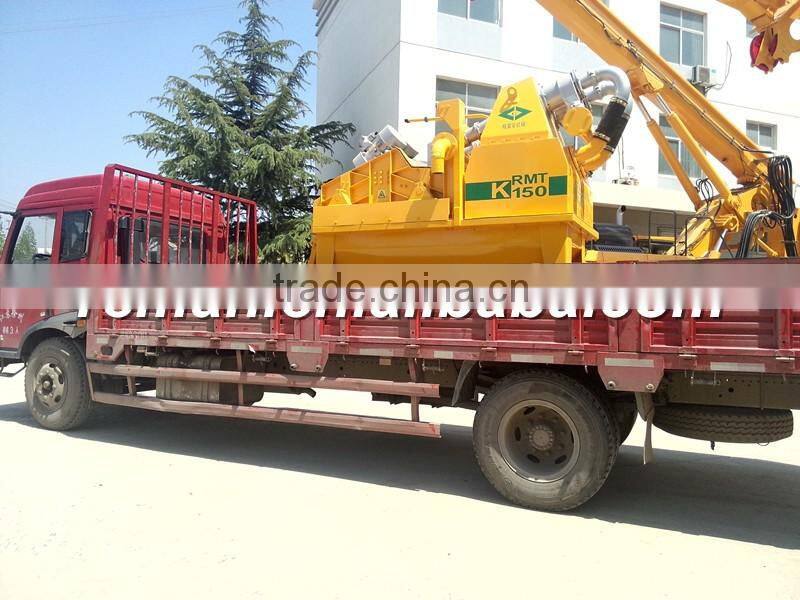

Standard exporting packing, suitable for shipment.
Weclome to visit our website:reman.en.china.cn!
