3Dexcel Scanner/3D Scanner/High Precision/High Resolution/Portable/

3Dexcel Scanner/3D Scanner/High Precision/High Resolution/Portable/ photo-1
US$ 1,599 - 1,599 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, 3D Scanner
Scan Element Type:
CCD
Colour Depth:
32 Bit
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Type Other, 3D Scanner
Scan Element Type CCD
Colour Depth 32 Bit
Brand Name 3Dexcel
Model Number S01H
Place of Origin China

Specifications

scanning tool, easy for operation;
360stereo scanning with no dead corner;

Product Name: Portable 3D Scanner



Product Model: S01H

3Dexcel Scanner/3D Scanner/High precision/High resolution/Portable/

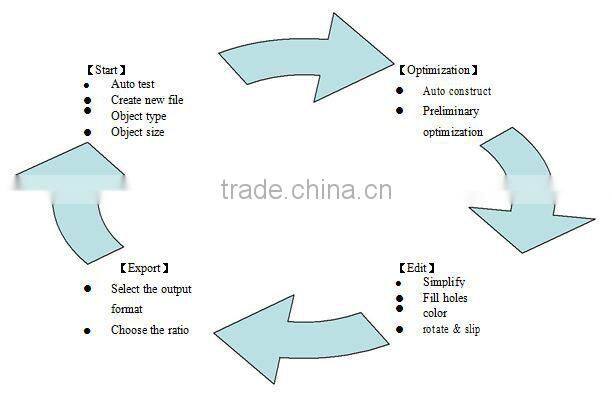

Operation chart:

3Dexcel Scanner/3D Scanner/High precision/High resolution/Portable/





Specific Introduction:







3Dexcel portable 3D scanner is an advanced 3D device. The scanner used to creating a point cloud of geometric samples on the surface of the subject. These points can then be used to extrapolate the shape of the subject (a process called reconstruction). If color information is collected at each point, then the colors on the surface of the subject can also be determined. During the scanning process, the target objects will be scanned for normally one loop, the collected data can then be used to construct digital three-dimensional models







After simple processing of the collected data by 3d scanner, we can convert the data easily into 3d modeling data for comprehensive analysis and measurement







The advantage of our products:





1.portable scanning tool, easy for operation;



2.360°stereo scanning with no dead corner;



3.Three scanning modes of portraits, objects and scenes are optional. It can automatically

   optimize the scanned data;

4.The shooting range is adjustable, and can record scanning results at 1:1ratio.



5.It can identify the target object accurately and automatically lock the scanning target;



6.The software in packing kit obtains the brilliant functions such as simplify, fill holes, coloring and    three-dimensional functions like rotation, slip, crop, export and so on;



7.Brief and intuitive user interface











 Application fields:







Due to its large scanning scope 3Dexcel portable 3D scanner is widely applied in various fields,

the main application fields are as follows







1.  household-record the wonderful moments of the family events or memory



     the scenes of the childs each growing up moments.;



2.  3D photographing center



     – Record the important events such as wedding, birthdayparty, family



        gathering in colorful 3d form.;





3.  Design – easily save and edit your creative ideas by helping the designers



     with the design solutions of clothing, architecture, advertisement,



     automobiles and household appliances;





4.  education - from “imagination” to “imaging”, train children’s imagination and



     creativity , to let them observe and feel the world more intuitively;





5.  medical healthcare- by providing accuracy scanning data to help improve



     the results of orthopedic operation and the manufacturing of artificial limbs ;





.  Industry restore the images rapidly in reversing engineering the parts in



      shorter time, meanwhile it can construct model samples for complicate



      objects too;



7.  Multimedia design3Dexcel portable scanner can also applied to the fields



     of movie or PC-games. By scanning the figures and scenes precisely, the



     designer can complete 3d modeling based on the scanned data.

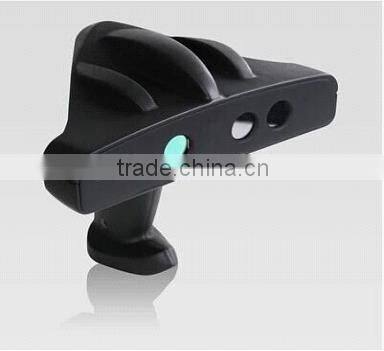

The Host and Software



 3Dexcel Scanner/3D Scanner/High precision/High resolution/Portable/









Standard accessories, spare parts and repair kit







 3Dexcel Scanner/3D Scanner/High precision/High resolution/Portable/

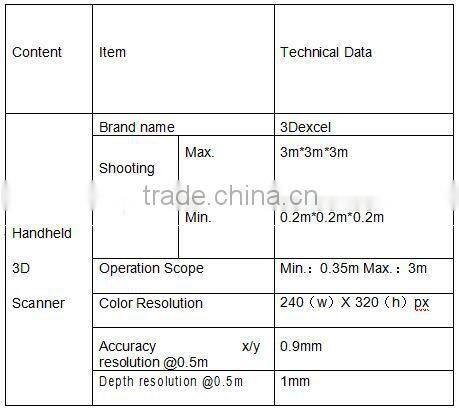

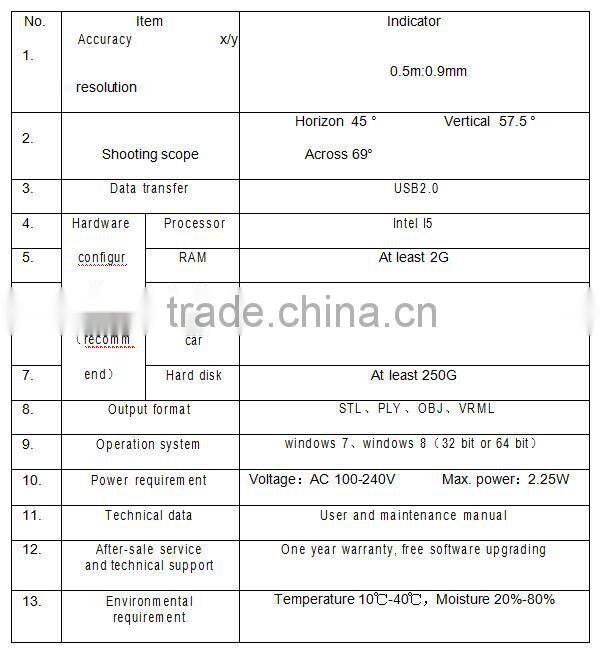

HRPS-IIA rapid prototyping machine technical performance index



 3Dexcel Scanner/3D Scanner/High precision/High resolution/Portable/











Service Guarantee







1. The scanner enjoys nationwide warranty for one year.







2. In case of any quality problems or malfunction for normal use, please submit your claim to the company repair center.







Once confirmed, the scanner can be refunded within 7 days after the purchase date, and be exchanged within 15 days upon the test proof. Above 15 days it can still enjoy the free repair services within the warranty periods







3. We support our clients for the provision of technical service on every working day.







4. Your requests about technical or maintenance problems will be responded within 24 hours.

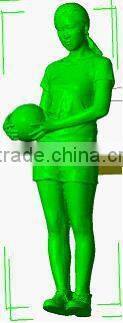

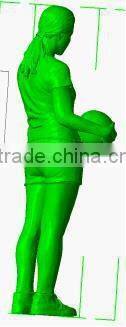

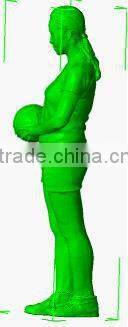

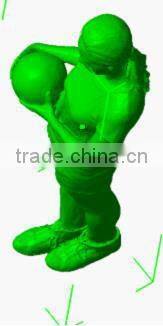

Sample:

3Dexcel Scanner/3D Scanner/High precision/High resolution/Portable/3Dexcel Scanner/3D Scanner/High precision/High resolution/Portable/3Dexcel Scanner/3D Scanner/High precision/High resolution/Portable/

3Dexcel Scanner/3D Scanner/High precision/High resolution/Portable/3Dexcel Scanner/3D Scanner/High precision/High resolution/Portable/3Dexcel Scanner/3D Scanner/High precision/High resolution/Portable/3Dexcel Scanner/3D Scanner/High precision/High resolution/Portable/
