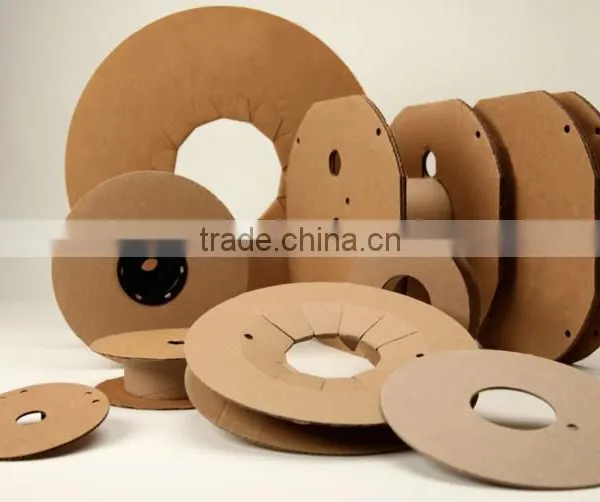

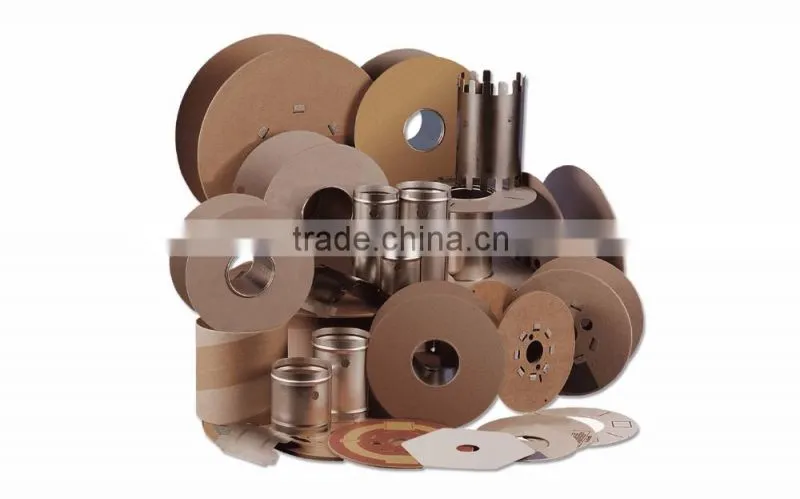

Hardboard reels are suitable for a variety of applications, such as welding wire, ground wire, terminal contact strips,
special feature of a hardboard reel is the strong, dense, smooth flange surfaces. Special flange machining can
produce custom borings, such as sight holes or slots. The flanges can be custom printed with your logo or product
information.
FLANGE MATERIALS
High-Density Materials - Thickness: 1/8", 1/4", 5/16"
Medium-Density Materials - Thickness: 3/8" and 1/2" (others as requested)

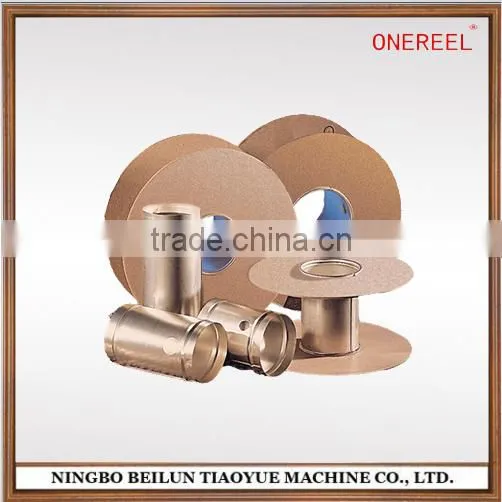

BARREL MATERIALS
Paper Tubes - Spiral wound from high-grade paper and glues. Intended for use where moisture is not a concern
Steel Barrels - Constructed of galvanized steel
FASTENERS
Rivets - Available in 3/8" and 1/2" diameter tubular steel. Ideal for lightweight applications
Screws - Available in 1/4" in both flat head and round head in lengths of up to 3" for "pancake"-type reels
Hexhead Bolts - For longer traverse lengths, 1/4" bolts are used
STANDARD WELDING WIRE SIZES
• 8 x 1 3/4 x 3 7/8 weight capacity of 10 lbs
• 11 13/16 x 3 3/8 x 8 1/4 weight capacity of 25 lbs
• 11 13/16 x 3 3/8 x 6 3/8 weight capacity of 44 lbs
• 14 x 3 3/8 x 8 1/4 weight capacity of 60 lbs
Fastening options for Carris hardboard reels include rivets, screws or hexhead bolts and t-nuts and steel tabs.
