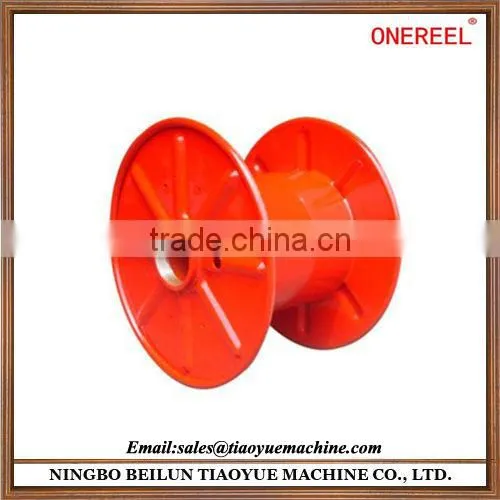

Heavy Duty And High Quality Empty Spool for Wire and Cable

Heavy Duty And High Quality Empty Spool for Wire and Cable thumbnail-1
Heavy Duty And High Quality Empty Spool for Wire and Cable photo-1
US$ 10 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TIAOYUE ONEREEL
Model Number:
PND315-1000
Contact Supplier Request Quote Chat Now
Ningbo Beilun Tiaoyue Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name TIAOYUE ONEREEL
Model Number PND315-1000
Usage Multifunctional

Main Technical Parameters Data of Heavy Duty And High Quality Empty Spool for Wire and Cable.

Serial Number
Specification Model
Lateral Plate Diameter D1
Major Diameter D2
Axle Hole Diameter D4
Carrying Hole Diameter D5
Center Distance E of Axle Hole and Carrying Hole
External Width L1
Internal Width L2
1
315
315
120
33.5
16
86
238
200
2
400
400
160/200
56
16
71-112
300
250
3
440
440
220
80
16-28
180
316
292
4
450
450
180/224
56
16-28
71-112
335
280
5
500
500
250
56
16-28
142
335
315
6
560
560
224/280
56
16-28
71-112
425
355
7
600
600
250/300
56/60
16-28
71-112
340/3
85
300/3
50
8
630
630
335
80
16-32
140
495
450
9
710
710
355/400
80
28-40
71-112
530
450
10
760
760
355
32.5/54
21-35
64-115
95-126.5
345
315
295
280
11
762
762
355/400
60
25-40
135
360
280
12
787
787
450
127
25.4
120
560
485
13
800
800
450
200
28-40
135
600
500
14
900
900
380
80
28-40
400
764
720
15
1000
1000
500
200
28-40
320
780
660

In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards, the product is formed by pressing and welding common carbon steel Q235 (A3) thin steel plate. The periphery of lateral plate adopts a hemming structure. The product has the characteristics of not only strengthening the strength of lateral plate, but also having higher rigidity and toughness, light weight and fastness, which can be used for drawing-wire machine, buncher, stranding machine, extruder, cabling machine and armouring machine.

 Heavy Duty And High Quality Empty Spool for Wire and CableHeavy Duty And High Quality Empty Spool for Wire and CableHeavy Duty And High Quality Empty Spool for Wire and Cable
