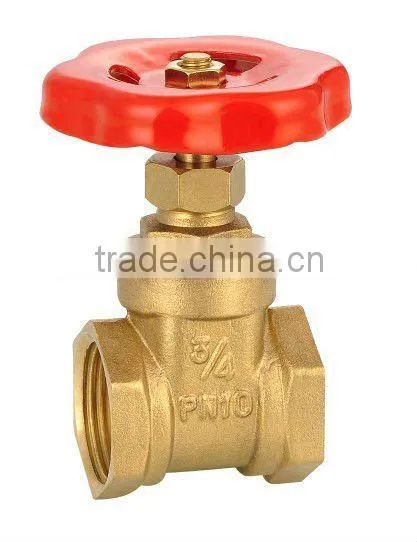

JD-1002 Brass Gate Vavle

JD-1002 Brass Gate Vavle thumbnail-1
JD-1002 Brass Gate Vavle photo-1
US$ 0.6 - 40 MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Yuhuan Jida Brass Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Gate
Pressure Medium Pressure
Power Manual
Material Brass
Temperature of Media Medium Temperature
Media Water
Place of Origin Zhejiang, China
Model Number JD-1002
Brand Name JD

Specifications

1. brass gate vavle
2. all brass except iron handle
3. size: 1/2"- 4"
4. ISO9001: 2000 CE
5. good quality and cheap price



Brass gate vavle



COMPONENT:



NO.
Component
Material
1
Body
Brass
2
Bonnet
Brass
3
Wedge Disc
Brass
4
Stem
Brass
5
Seal Gasket
Teflon
6
Lockwasher
Brass
7
Packing Ring
Teflon
8
Packing Gland washer
Brass
9
Packing Gland Nut
Brass
10
Handle Wheel
Cast Iron
11
Nameplate
Aluminium
12
Nut
Brass





TECHNOQUE PARAMETER ;




/m
/g

FOB/CNF
G
DN
L
L1
H
D
APPROX.W
BOX/CTN
Price
1/2"
14
41
11
74
53.5
245
10/100

3/4"
19
45
12
87.5
53.5
355
12/72

1"
23
50
14
97.5
57.5
450
10/60

11/4"
28
60
16
111.5
71.5
775
4/32

11/2"
35
64.5
18
127.5
71.5
940
4/32

2"
43
69.5
19
152.5
77.5
1455
2/16

21/2"
54
78.5
20
186.5
100
2480
2/10

3"
68
83
18.5
210.5
116
3420
2/8

4"
87
95.5
24
250.5
143
5920
0/4






FATURES:

Max pressure: 25bar


Working Temperatu: -10< t <100
Thread: ISO228/1:2000
Suitable medium:water&non-causticity liquid&saturated stem
Bote-GATE VALVE have a screwed bonnet,non-rising stem,solid wedge disc,and integral seats
Recommended for Non-steam use in residential and light commercial applicaions
Each valve is tested twice in air or under water in the open and closed positions
May be repacked while in service under pressure







Yuhuan Jida Brass Co.,Ltd.
Add: Pengzai Industrial Area
Chumen, Yuhuan ,Zhejiang, China
Tel:+86-576-87417598
mobil: 13732301820

Fax:+86-576-87413320
Web:

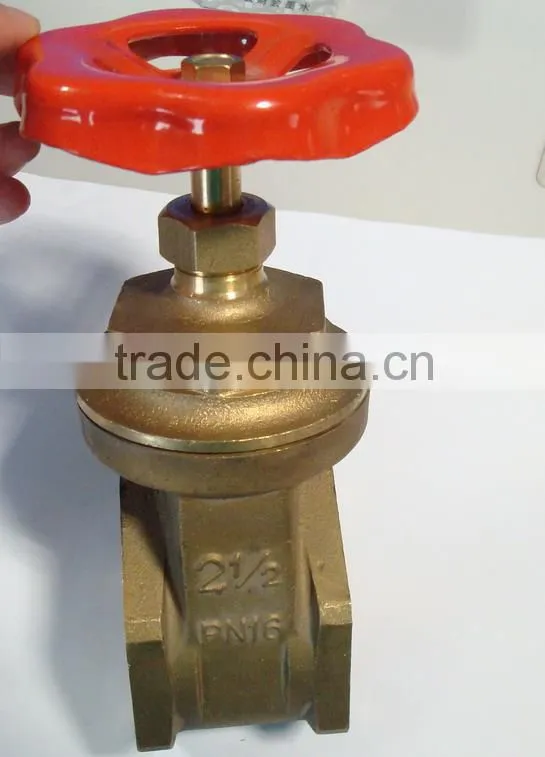

JD-1002 brass gate vavle





JD-1002 brass gate vavle

  JD-1002 brass gate vavle
