Home > Electrical & Electronics > Connector & Terminals > Terminals > Led Terminal Block

Led Terminal Block

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

TB1-X

Contact Supplier Request Quote Chat Now

Zhangjiagang City Dongdu Electronic Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai&Ningbo&Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name DD

Model Number TB1-X

Type Screw Terminal

Specifications

led terminal block
U / H / F type, Wire range: 2.5mm2- 40mm2
250V - 450V / 3A - 100A
-40 to 110C

Led terminal block

1.Product features
Material:Plastic have PA, PP, PE.Brass insert and Steel screw

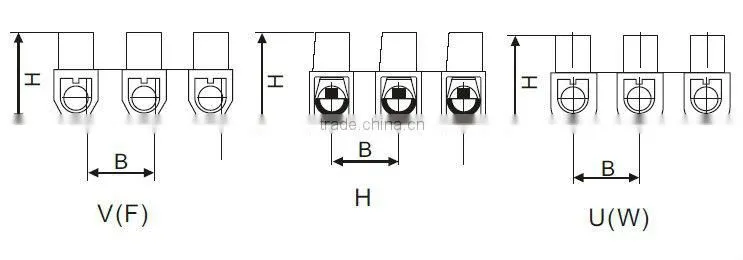

Type:U / H / F type
Voltage: 250- 400V
Current : 3A - 100A
Cable wire : 2.5mm2 - 40mm2
Working Temperature : - 40°C to 110°C
Color: Natural color,optional

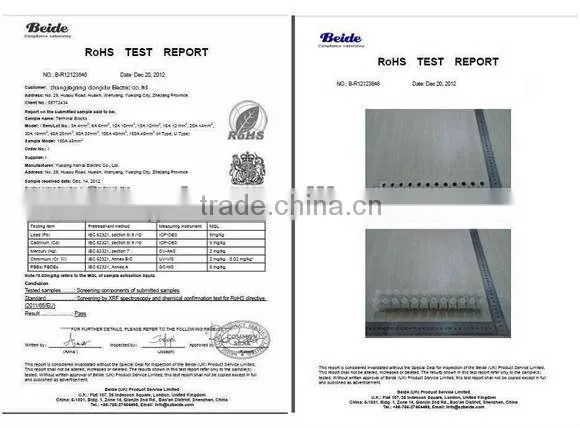

CE ROHS certificated

2.Product data sheet

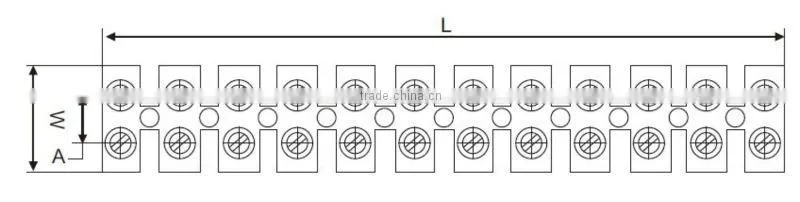

Item NO.	Wire Range	Rated Current	Rated Voltage	Length	Width	High	Brass Hole Diameter	Plastic Pole Width	Screw size	Material
Item NO.	Wire Range	Rated Current	Rated Voltage	Length	Width	High	Brass Hole Diameter	Plastic Pole Width	Screw size	Material
DDTB1-01	2.5-4.0MM²	3A	380V	92.3	16.8	12.3	3	7.8	M2.5 x 4	PE PP PA
DDTB1-02	4.0-6.0MM²	6A	380V	115.4	18.8	15.4	3.3	9.6	M3.0 x 5
DDTB1-03	6.0-10.0MM²	10A	380V	129.3	20.7	16.5	4.2	11	M3.0 x 6
DDTB1-04	10-12MM²	15A	380V	137.8	22.5	18.6	4.5	11.7	M3.5 x 7
DDTB1-05	12-14MM²	20A	380V	138	22.5	19	4.7	12	M4.0 x 6.5
DDTB1-06	16MM²	30A	380V	164	25.5	20	5.5	13.7	M4.0 x 7
DDTB1-07	25MM²	60A	380V	186	29.2	25.3	6.6	15.7	M4.0 x 9
DDTB1-08	35MM²	80A	400V	226.8	36.1	29	7.8	19.2	M5.0 x 12
DDTB1-09	40MM²	100A	450V	254.6	45	34.7	9	20.5	M6.0 x 12
