Specifications
Hot Sale Full Digital Technology Ultrasound Scanner/ Echographe With Ce And Iso1.15inch LCD Screen
2. 3D imaging optional
Hot Sale Full Digital Technology Ultrasound Scanner/ Echographe With Ce And Iso
PC based Ultrasound System and Support multi languages,3D function optional.
Features of Konted C8
-15 inch LED screen
-Pretty, thin, and light
-2 probe connector
-Full digital imaging technology, crystal-clear Image
-3D Image function
-PC based, abundant functions
-Detail report edit function
-Powerful image management
-Large volume storage image and cine-loop
-Not only can save image but also can save video
-DICOM display and transfer
-Compatible with laser/inkjet printers
-Abundant calculation functions and can select different calculate formula
-Can save and select some groups inspect parameter so save time to adjust per time
-Built-in battery(Work 5 hours)
-Good aluminum trunk packing
-Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.
Technical Specification of Konted C8
| Maximum Scanning Depth: | max 250mm |
| Multifrequency: | 5 segment frequencies |
| Cine Loop: | Max 1024 frames |
| Scanning mode: | B,2B,B/M,M,4B,9B,ZOOM |
| Real-time Zoom on B mode: | |
| Image gray scale | 256 level gray scale |
| Image processing: |
Preprocessing, after-processing, dynamic range, frame rate, line average, edge, enhancement, black/white inversion, gray scale adjustment, contrast ,brightness, y revision |
| Gain: | 0-100dB |
| Time gain control(TGC) | 8 segment adjustment, B,M adjustment separately |
|
Measurement and calculation(human): |
B mode: distance, circumstance ,area, volume, angle, ratio, stenos is, profile, histogram |
| M mode: heart rate, time, distance, slope and stenos is | |
| Gynecology measurement: uterus, cervix, endometrial, L/R ovary | |
| Obstetric: gestation age, fetal weight, AFI | |
| Cardiology: LV,LV function, LVPW, RVAWT | |
| Urology: transition zone volume, bladder volume, RUV, prostate, kidney | |
| Small parts: optic, thyroid, jaw and face | |
| Veterinary: Cattle: BPD,CRL,TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD | |
| Supported output apparatus: | U Disk, Laser/ink printer, video printer, VGA |
| Zoom: | 10 ratio, 1.5,2.0,2.5,3.0,3.5,4.0,4.5,5.0,5.5,6.0 |
| Image store: | By hard-disk or USB disk, can save image and also video(avi or swf format) |
| 3D image function(optional): | Can get rebuilt 3D image by any probe |
| Work time by built-in battery: | About 5 hours |
| Monitor: | 15inch color LED touch screen |
| Probe connector: |
2 |
Application Package of Konted C8
Abdominal,Obstetrics,Gynecology, Urinary System, Cardiology, Radiology, and Organs/Small parts, Musculoskeletal, Pediatrics and Vascular, etc.
Advanced Imaging Technologies and clinical image
Machine show for Konted C8
Standard Configuration of Konted C8
One main host
one convex probe(3.5MHz)
one power adapter

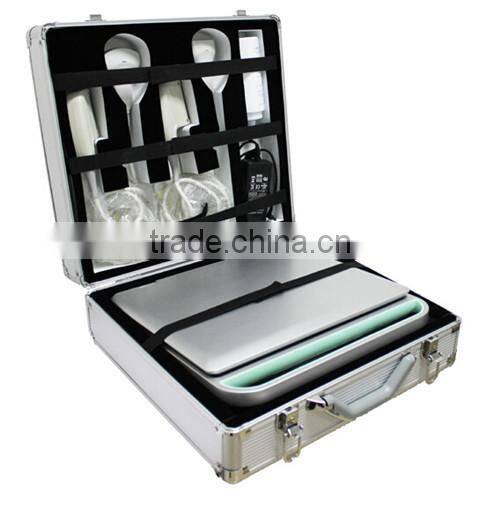

one aluminum case
Option of konted C8

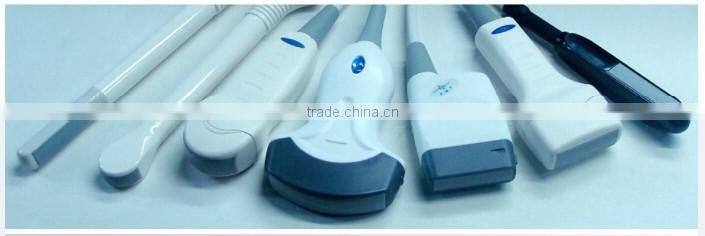

Linear, Trans-vaginal, Micro-convex, Rectal probe;
Bag;
Trolley;
Laser Printer;
Video Printer
Packing and Delivery
Packing : bag &carton.
Shipping : DHL, TNT, UPS, Fedex, ARAMEX, etc
Konted Best service for you
1. Performance assurance through preventative regular maintenance
2. Software upgrades for new features and diagnostics through Internet-based services
3. Up-to-date training materials for the operation and maintenance of equipments
4. Prompt responses to urgent questions by email, phone, or fax.
5. Reasonable annual maintenance charges for services after warranty period is over
6. Updates or upgrades, wherever feasible, to equipment with the latest design improvements
Any questions pls feel free to let me know !Thanks!
