Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe thumbnail-1
Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe thumbnail-2
Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe thumbnail-3
Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe thumbnail-4
Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe thumbnail-5

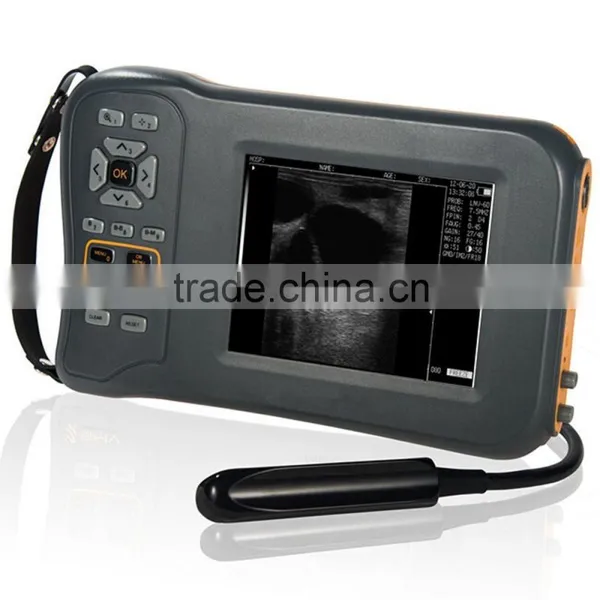

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe photo-1

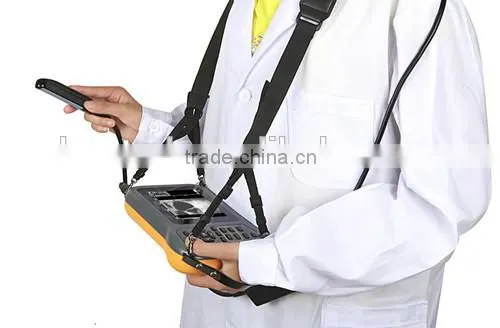

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe photo-2
Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe photo-3

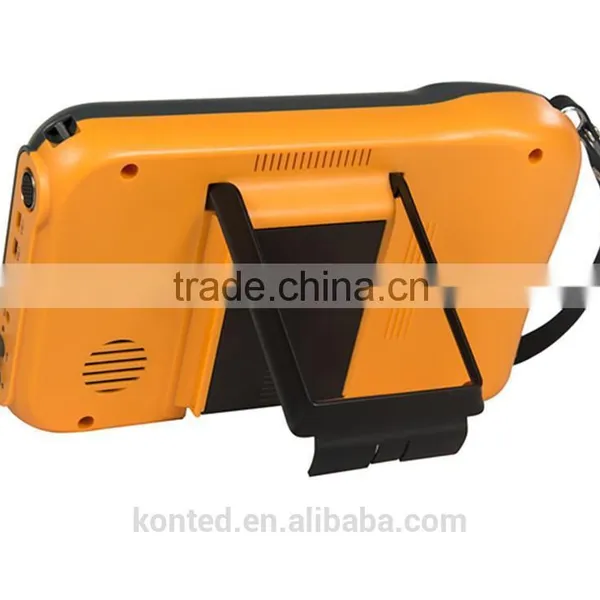

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe photo-4
Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe photo-5
US$ 800 - 2,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
KONTED
Model Number:
V5plus
Contact Supplier Request Quote Chat Now
Beijing Konted Medical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name KONTED
Model Number V5plus
Properties Obstetric Appliances

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe



Features

 V5plus can perform all veterinary applications more easily. It outstands for featuring premium image quality,
considerate design for comfortable, quick and reliable pregnancy detection,even under difficult field
conditions on a daily basis.





Specifications



Technical Specifications



Specification

Imaging Mode

B,B+B,B+M,M,4B

Probe Type

Abdominal convex/
micro convex/
High frequency Linear/
Rectal convex/
 Rectal linear probes

available

Probe Frequency

Muti-frequency Depends
 on probe type

Penetration Depth

 Adjustable from 12cm

to 22cm

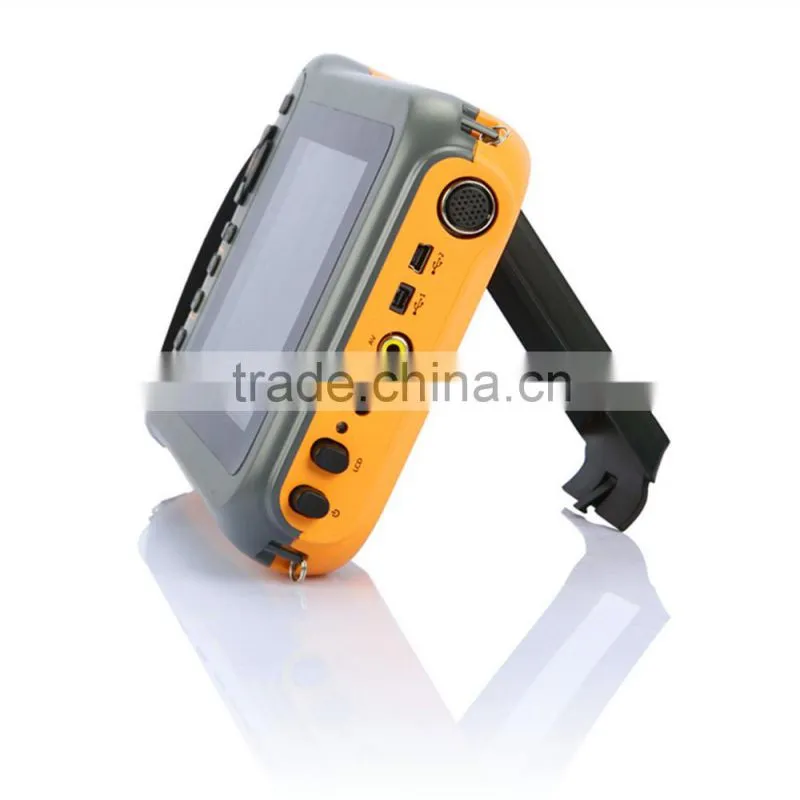

External Connection
Support

USB

2.0/Video glass/Mouse

Display

5.8 inches High-resolution Screen

Scanner Weight

625g

Battery

Li-ion battery,11.2V,

2600mAh

Operating Time

Up to 5

continuous working
hours

Charging time

Less than 1.5 hs

Cine-loop

420 frames

Size (LxWxH)

25x12x4 cm

Configuration

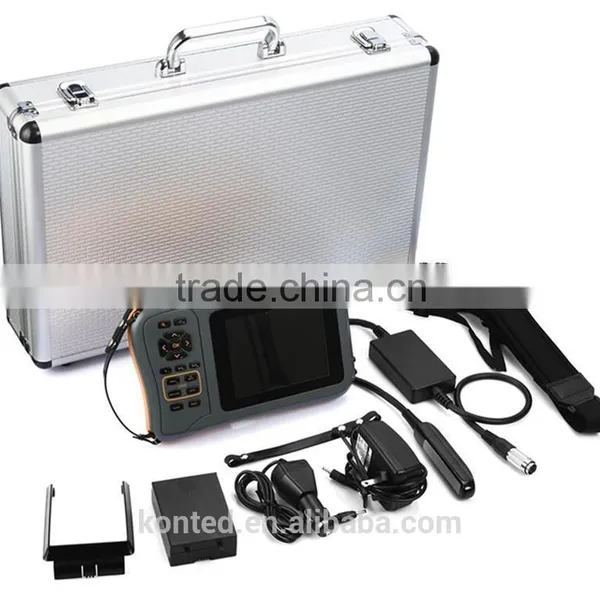

Standard Configuration

Options

 Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

1*V5 machine;
1*Abdominal Convex probe;
1*Li-ion high-power-capacity battery;
1*Battery charger (AC110V~250V,50/60Hz);

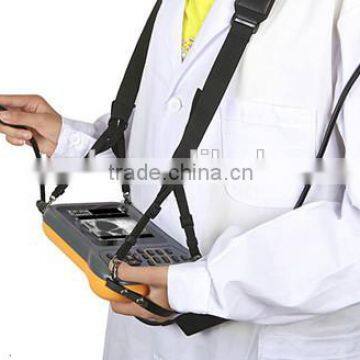

1*Neck strap and hand strap;
1*Aluminum alloy carry case;
1*User guide;


Abdominal convex/micro convex/ High-frequency Linear/
Rectal convex/ Rectal linear probes;
I.F.R Introducer;
Li-ion high-power capacity battery;
Car Charger;
Video glass;
Leather protector;

Used On

Used on

Used for

Bovine/equine/ovine/swine/dog/cat/llama/
camel&small ruminants

Pregnancy /Fetal sex detection /
ovarian examination/
post pactum diagnosis/Musculoskeletal scan



  Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

Probes and other optional



Name

Type No.


Description&Specification

Note

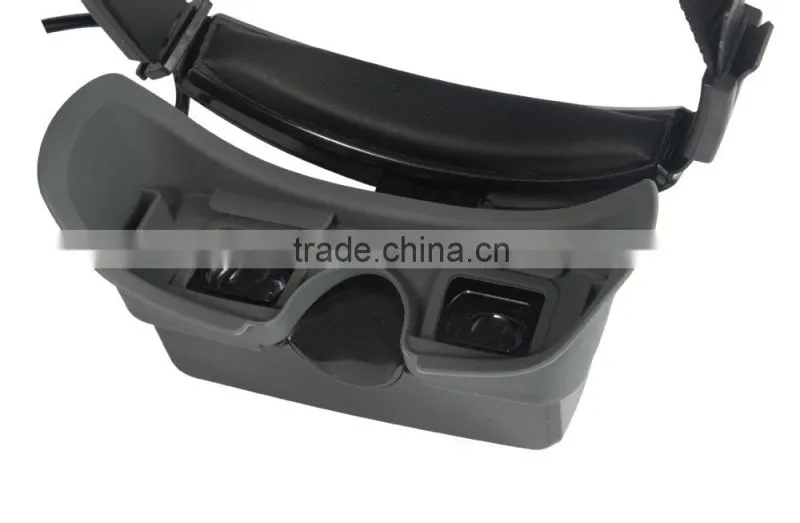

Video Goggle

 VG2

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

Up to 7 continuous working hours,
High resolution
16:9 wide screen.

For veterinary,used
on V5&V5plus

Rectal Linear Probe

LR-65V

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

Central frequency: 6.5 MHZ
Frequency range: 5~8 MHz
Elements:80
Applications: OB/GYN; Fetal sexing,
Ovarian diagnosis,
 Follicles Visualization

For veterinary

Convex probe

C350P

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

Central Frequency : 3.5 MHz
Frequency range: 2~5MHz
Elements: 128

For veterinary&human

Micro-convex probe

C520P

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

Central Frequency : 6.5 MHz
Frequency range: 5.0,6.5,7.5 MHz
Elements: 128

For veterinary&human

HF Linear probe

LH75P

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

Central frequency :7.5 MHz
Frequency range:5~8 MHz
Number of elements:128

For veterinary&human

I.F.R Introducer

IFR-85L

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

85cm length, weight 600g, combined use
with Rectal linear probe

For veterinary,used on
Rectal linear probe

IFR-85R

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

85cm length, weight 600g, combined use
with Rectal convex probe

For veterinary,used on
Rectal convex probe



Product Show

 Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe



Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

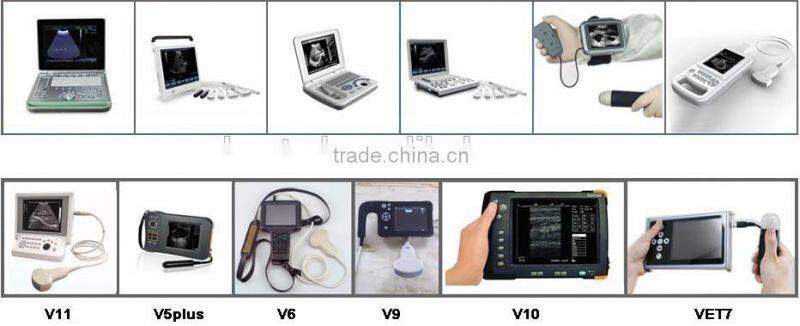

Product Line

 Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe



  Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

Certifications

  Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

Related Products

 Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe

Konted Professional Veterinary Equipment/ Animal Instrument/ Animal Equipment V5plus With Rectal Linear Probe





why choose us



Our Service and team:



1. Performance assurance through preventative regular maintenance

2. Software upgrades for new features and diagnostics through Internet-based services

3. Up-to-date training materials for the operation and maintenance of equipments

4. Prompt responses to urgent questions by email, phone, or fax

5. Reasonable annual maintenance charges for services after warranty period is over

6. Updates or upgrades, wherever feasible, to equipment with the latest design improvements
