Portable Echography Machine/4D Laptop Ultrasound Scanner

Portable Echography Machine/4D Laptop Ultrasound Scanner thumbnail-1
Portable Echography Machine/4D Laptop Ultrasound Scanner thumbnail-2
Portable Echography Machine/4D Laptop Ultrasound Scanner thumbnail-3
Portable Echography Machine/4D Laptop Ultrasound Scanner photo-1
Portable Echography Machine/4D Laptop Ultrasound Scanner photo-2
Portable Echography Machine/4D Laptop Ultrasound Scanner photo-3
US$ 1 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Doppler Ultrasound Equipment
Brand Name:
Konted
Model Number:
C6
Contact Supplier Request Quote Chat Now
Beijing Konted Medical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Doppler Ultrasound Equipment
Brand Name Konted
Model Number C6
Place of Origin Beijing, China



Product Description

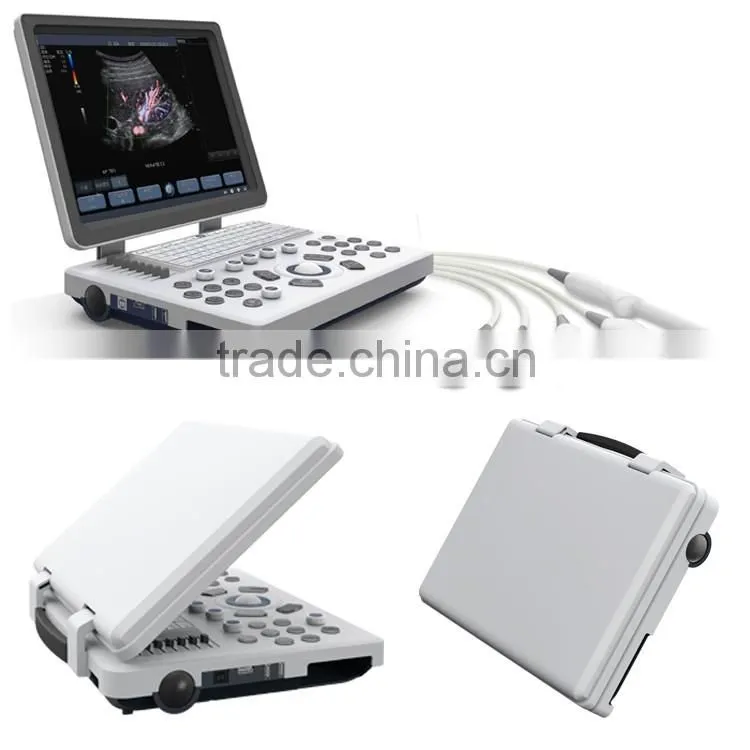

Portable echography machine/4D laptop ultrasound scanner



Imaging Processing

Pre-processing :

1 Cloud processing technology

2 Fine blood flow imaging, high sensitive

3 Gain

4 8-segment TGC

5 Dynamic range

6 Persistence

7 M soften

8 Noise suppression





Post-processing:

1 Image enhancement

2 Gray-scale map

3 Pseudo color map

4 Interface to turn 180°

5 Left/right reverse

6 Up/down reverse



Application Package



Abdominal,Obstetrics,Gynecology, Urinary System, Cardiology, Radiology, and Organs/Small parts, Musculoskeletal, Pediatrics and Vascular, etc.



Function:

Smart touch- screen design:

Supported

Cine loop:

334 frames movie playback stored

Amplification:

10 times

Qopt:

One-key optimize

Multi language:

Supported

Lithium battery supply:

Supported

Built in probe:

Supported

DICOM:

DICOM 3.0

Print:

Report print for text&graph&image

Technical Specification:

Modes:

B,M,2B,B/M,4B,C,PW, Power,DirPower,THI

Gray Level:

256

Display:

15”LCD monitor

Transducer Frequency:

2-11Mhz

Digital Technology:

Wide-angle imaging

Panoramic focusing technology

Compatible with high and low speed blood

Panoramic imaging

Frequency composite

Space compound

Rolling M technology

Real-time Dynamic Aperture

Tissue Harmonic Imaging

Scanning Depth:

220mm

Probe ports:

3 active transducer connector ports

Peripheral ports:

2 USB ports, serial port, LAN Ethernet, S-video

Power supply:

AC:100-240V   50/60Hz≤90VA

Measurement and Calculation

B mode:

Distance, angle, area, volume, trace length, length ratio, area ratio, histogram

M mode:

Distance, time, slope, heart rate

Color and PW mode:

D velocity, D trace, PS/ED

Application package:

Abdomen, Obstetric, Gynecology, Cardiac, Neural and Small parts.



Standard Configuration



Main unit

15 inch high resolution LCD display:1024*768

Touchscreen

Two USB ports

One s-video out port

One networking port

One power inlet

3.5 MHz Large convex probe

Three transducer connectors

Abundant measurement&calculation software package.

Main unit warranty time 18 months

Probe warranty time 12 months

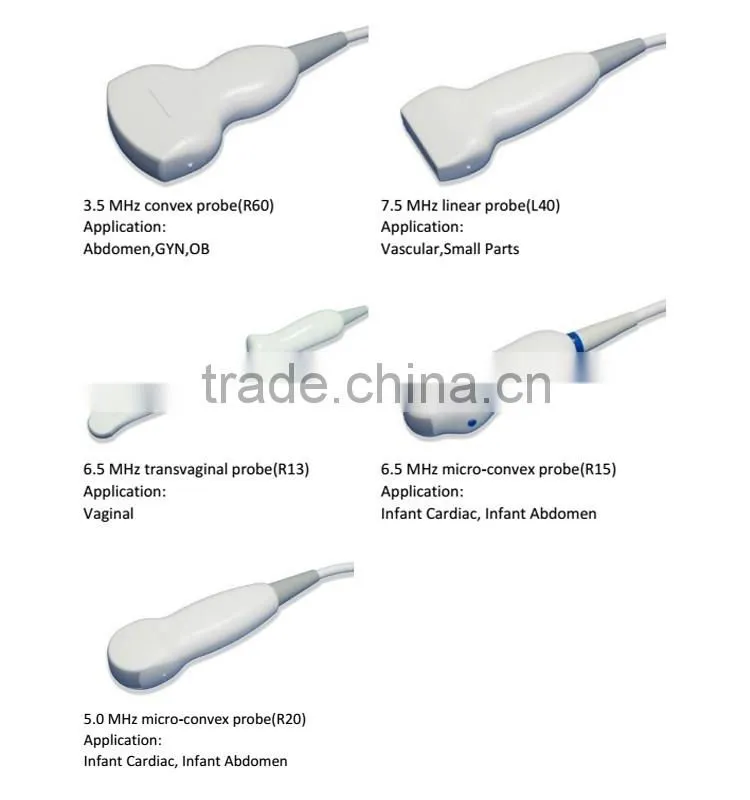

Probe Option (support 2~14MHz wideband probe,80 and 128 elements)



Portable echography machine/4D laptop ultrasound scanner

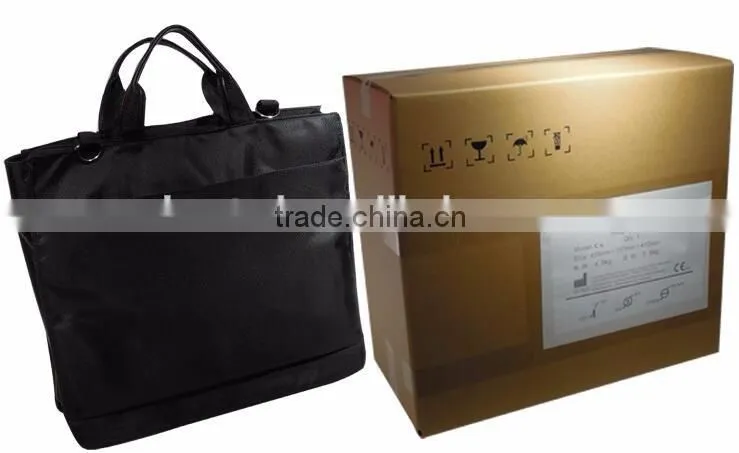

Packaging & Shipping



Packing: bag &carton.

Shipping: DHL, TNT, UPS, Fedex, ARAMEX, etc

Portable echography machine/4D laptop ultrasound scanner



Our Services



1. Performance assurance through preventative regular maintenance

2. Software upgrades for new features and diagnostics through Internet-based services

3. Up-to-date training materials for the operation and maintenance of equipments

4. Prompt responses to urgent questions by email, phone, or fax

5. Reasonable annual maintenance charges for services after warranty period is over

6. Updates or upgrades, wherever feasible, to equipment with the latest design improvements



Related Products



FAQ



• Why choose us:
we got production and business certification from Beijing food and Drug Administration
we got business license from Beijing City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of "Support Healthy Life”, and our company spirits are quality, service,trust,thanksgiving;
