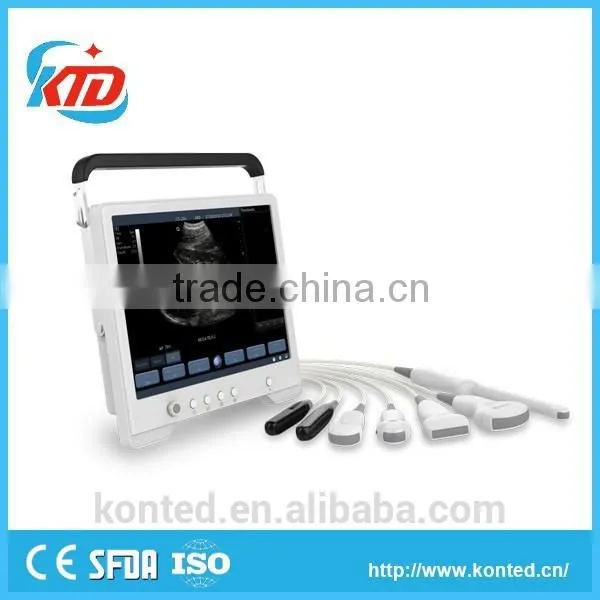

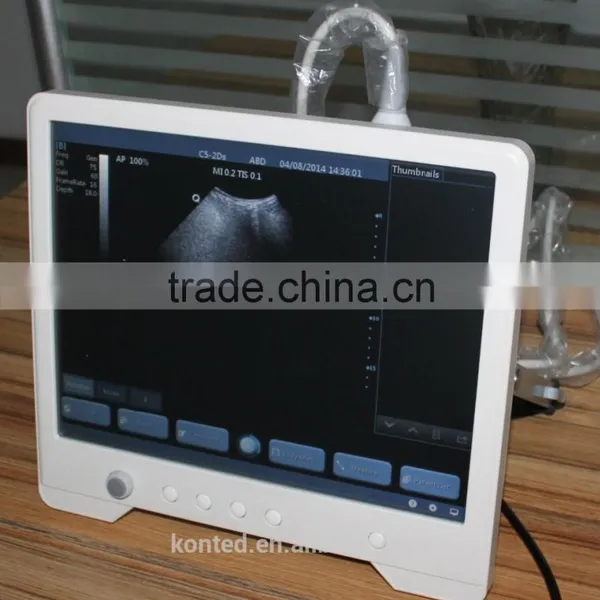

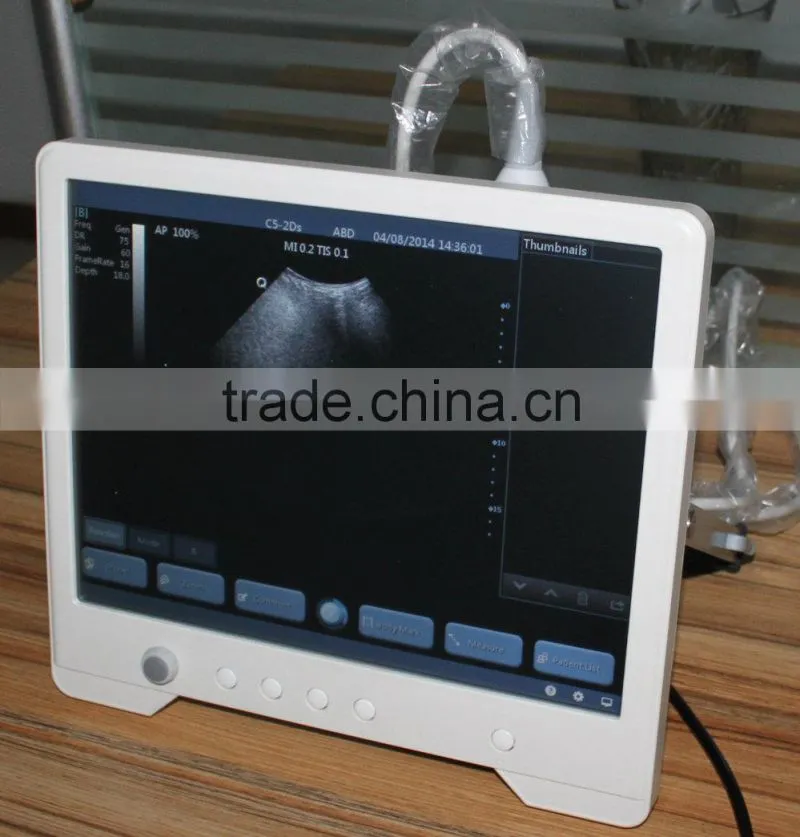

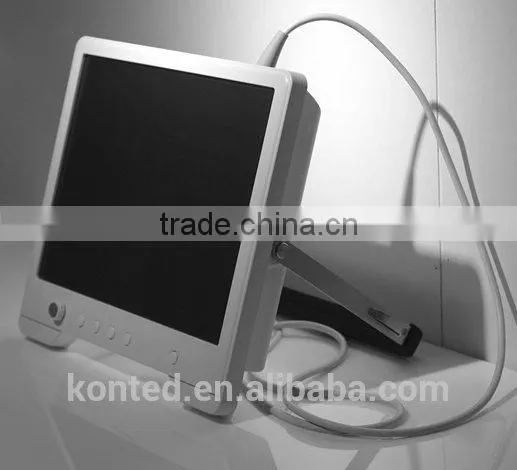

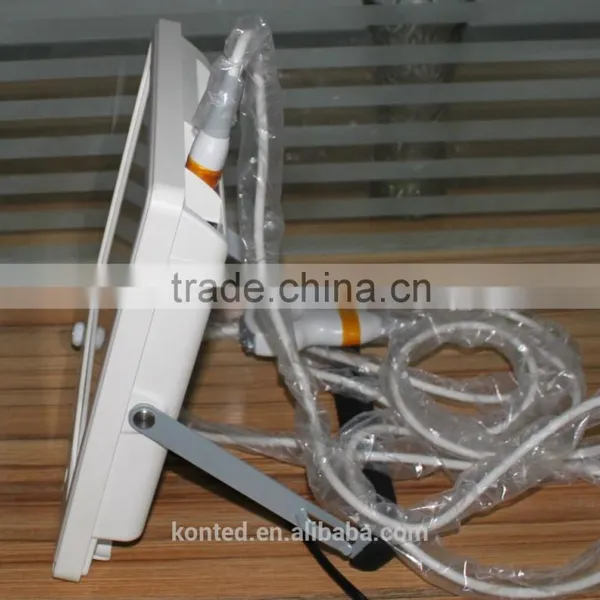

Full Digital Medical Ultrasound Scanner With Ce Marked
Imaging Processing of ther full touch medical device C5
Pre-processing :
- Cloud processing technology
- Fine blood flow imaging, high sensitive
- Gain
- 8-segment TGC
- Dynamic range
- Persistence
- M soften
- Noise suppression
- Image enhancement
- Gray-scale map
- Pseudo color map
- Interface to turn 180°
- Left/right reverse
- Up/down reverse
Application Package of the full touch medical device C5
Abdominal,Obstetrics,Gynecology, Cardiology, Neural and Small parts
Technical Specifications of the full touch medical device c5
| Technical Specification | |
| Modes: | B,M,2B,B/M,4B |
| Gray Level: | 256 |
| Display: | 15”LCD monitor |
| Touchscreen: | Full Touchscreen |
| Transducer Frequency: | 2-11Mhz |
| Digital Technology: | Wide-angle imaging |
| Panoramic focusing technology | |
| Rolling M technology | |
| Scanning Depth: | 220mm |

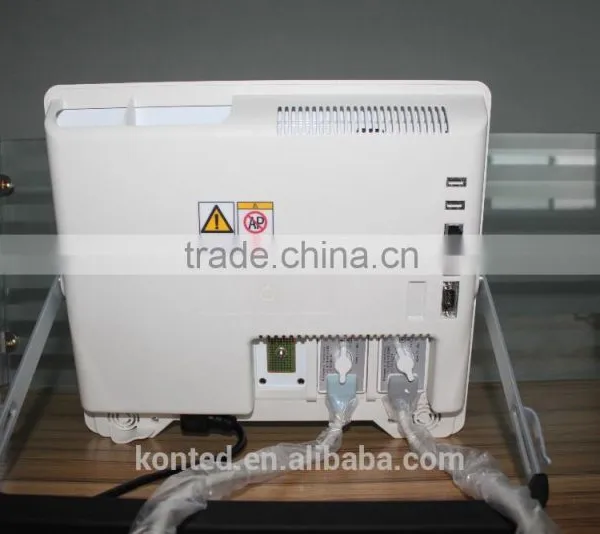

| Probe ports: | 3 active transducer connector ports |

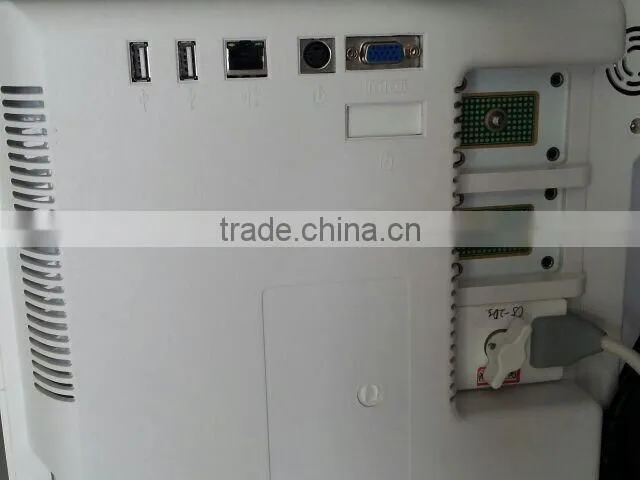

| Peripheral ports: | 2 USB ports, 1 networking port, 1power inlet,video |
| Power supply: | 100-240V~ 50/60Hz <100VA |
| Measurement and Calculation | |
| B mode: | Distance, angle, area, volume, trace length,distance ratio |
| M mode: | Distance, time, slope, heart rate |
| Application package: | Abdomen, OB, Gynecology, Cardiac, Small parts |
| Function | |
| Cine loop: | 334 frames movie playback stored |
| Zoom: | Pan zoom for the active imaging |
| Qopt: | One-key optimize |
| THI: | Tissue harmonic imaging |
| DICOM: | Supported |
| Print: | Report print for text&graph&image |

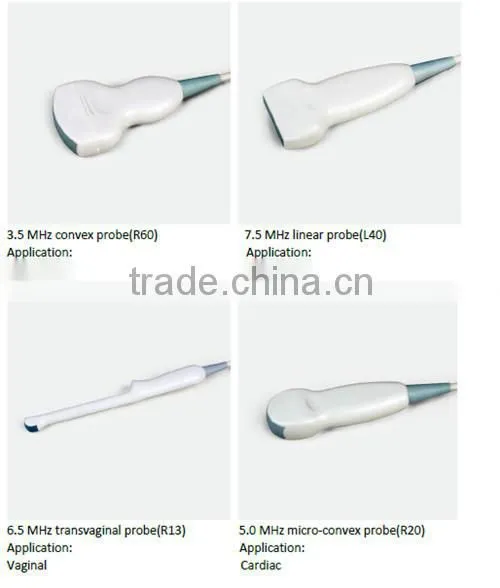

Probe Option (support 2~14MHz wideband probe
Packing : bag &carton.
Shipping :DHL, TNT, UPS, Fedex, ARAMEX, etc
Best service for you
1. Performance assurance through preventative regular maintenance
2. Software upgrades for new features and diagnostics through Internet-based services
3. Up-to-date training materials for the operation and maintenance of equipments
4. Prompt responses to urgent questions by email, phone, or fax
5. Reasonable annual maintenance charges for services after warranty period is over
6. Updates or upgrades, wherever feasible, to equipment with the latest design improvements
