Specifications
High frequency chest wall oscillation(HFCWO) for aiway clearance
Why Need the Coughvest Airway Clearance System
Many people with chronic respiratory conditions struggle each day to adequately remove secretions from their lungs. This can be due to the volume or thickness of secretions, muscle weakness leading to an ineffective cough or even the reliance on others to assist with airway clearance. Retained secretions may lead to increased rates of respiratory infection, hospitalisation and reduced lung function.
In order to assist you in improving mucus clearance , Konted developed the Coughvest Airway Clearance System to deliver High Frequency Chest Wall Oscillation (HFCWO).
What HFCWO is
High frequency chest wall oscillation (HFCWO) draws its effectiveness from the science of fluid mechanics,
the study of fluids and the forces which act upon them. Because mucus is a viscous fluid, it tends to resist movement. But sufficient and sustained airflow creates what physicists call “shear force,” which can cause even high-viscosity fluids to shift and flow.
How the CoughVest Airway Clearance Work?

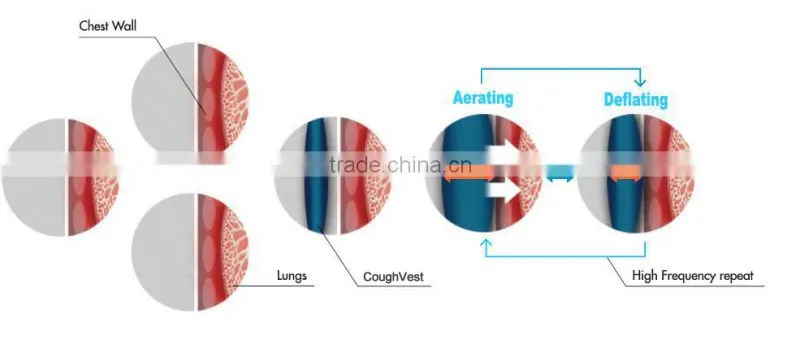

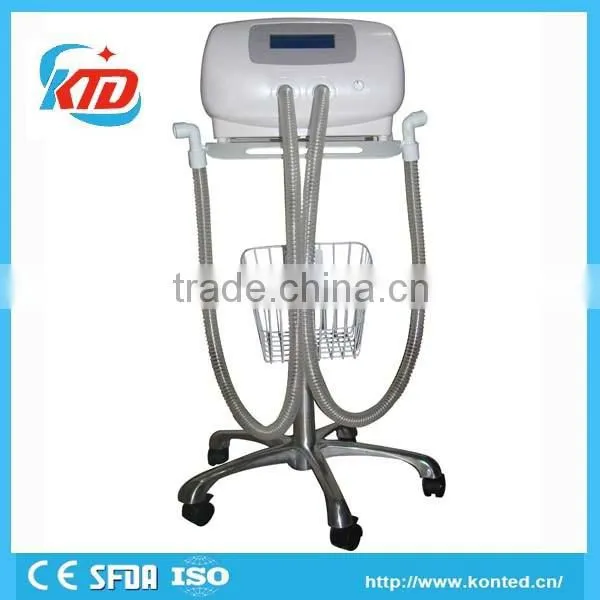

The Coughvest Airway Clearance System consists of an inflatable vest connected by tubes to an air-pulse generator. The generator rapidly inflates and deflates the coughvest, compressing and releasing the coughvest wall up to 25times per second. This technology is called High Frequency Chest Wall Oscillation (HFCWO).
The rapid chest movement minics”mini-cough” that dislodge and thin the mucus, moving it along to the central airways. The coughvest therapy treats all lobes of the lungs simultaneously and it technique indepent. It can be beneficial to patients across the continuum of care, including acute and post-acute facilities, as well as at home
- Reduce pulmonary infection
- Stable,comfortable and effective therapy treatment
- Easy to use and Lightweight to transport
- Multiple sizes available as patient grows
- Allows concurrent administer of aerosol treatment
- Mobilizes secretions at least as well as CPT
- As safe as conventional chest physiotherapy
The CoughVest® Airway clearance system is widely accepted and prescribed to treat secretion-related pulmonary complications in more than 350 diseases and conditions, including the following:
- Atelectasis, Pulmonary Infiltrates
- Acute Lung Injury (ALI) or Pneumonia
- Acute Respiratory Failure (ARF)
- Aspiration Lung Injury
- Pulmonary Insufficiency following Trauma
- Mechanical Ventilation or Surgery
- Acute Respiratory Distress Syndrome (ARDS)
- Cardiac Failure
- Cerebral Palsy
- Motor Neuron Disease
- Quadriplegia and/or Quadriparesis
- Muscular Dystrophies and other myopathies
- Dyspnea or other respiratory abnormalities
- Emphysema
- Asthma
- Chronic Bronchitis
- Bronchiectasis
- Cystic Fibrosis
- Chronic Obstructive Pulmonary Disease (COPD)
Item |
Dimension |
Air Pulse Generator weight |
8.5kg |
Air Pulse Generator height |
37cm |
Air Pulse Generator width |
20.3cm |
Air Pulse Generator depth |
24.1cm |
Inflatable vest material-Reusable Chest Vest |
Polyvinyl chloride (PVC)-coated polyester with polyurethane-coated nylon |
Inflatable vest material—Reusable Full Vest |
Polyurethane-coated nylon |
Inflatable vest material—Disposable Wrap Vest |
PVC-coated, thermally-bonded nylon |
Electrical requirements |
100 V AC to 230 V AC, 50 Hz to 60 Hz, 2.9 A at 100 V, 2.0 A at 230 V |
Fuse requirement |
2 each 4 A, 5 x 20 mm (Littelfuse part number F4AL250V) |
Item |
Control |
Description |
A |
ON/OFF |
start or pause the Air Pulse Generator |
B and C |
Frequency Up and Down |
Press to adjust the Frequency setting until the prescribed treatment session Frequency shows on the display |
D and E |
Pressure Up and Down |
Press to adjust the Pressure setting until the prescribed treatment session Pressure shows on the display |
F and G |
Treatment Time Up and Down |
Press to adjust the treatment Time until the prescribed treatment session Time shows on the dispaly |
H |
Treatment Mode |
Press to adjust the treatment mode until the prescribe treatment mode suitable for the patients |
- Performance assurance through preventative regular maintenance
- Software upgrades for new features and diagnostics through Internet-based services
- Up-to-date training materials for the operation and maintenance of equipments
- Prompt responses to urgent questions by email, phone, or fax
- Reasonable annual maintenance charges for services after warranty period is over
- Updates or upgrades, wherever feasible, to equipment with the latest design improvements
Why Choose Us:
- We got production and business certification from Beijing food and Drug Administration.
- We got business license from Beijing City Administration of industry and commerce.
- We got products certificate of registration and have checked in the website of SFDA.
- We have accepted the onsite check from SFDA every quarter.
- We finished the training of laws and regulations in medical equipments field.
- We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
- We adheres the beliefs of "Support Healthy Life”, and our company spirits are quality, service,trust,thanksgiving.
