Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Machinery Parts > Combination Drill Bit/oil Well Reamer/Reamer Bit/reamer Drills Rock Bit for Water Well

Combination Drill Bit/oil Well Reamer/Reamer Bit/reamer Drills Rock Bit for Water Well

Name: Combination Drill Bit/oil Well Reamer/Reamer Bit/reamer Drills Rock Bit for Water Well
Brand: chuanda
SKU: 120167631
Availability: InStock

Combination Drill Bit/oil Well Reamer/Reamer Bit/reamer Drills Rock Bit for Water Well thumbnail-1

Combination Drill Bit/oil Well Reamer/Reamer Bit/reamer Drills Rock Bit for Water Well photo-1

US$ 1,000 - 9,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

chuanda

Model Number:

800

Contact Supplier Request Quote Chat Now

Cangzhou Creator Drill Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name chuanda

Model Number 800

Type Drill Bit

Machine Type Drilling Tool

Certification Other, API, API&ISO

Material High Manganese Steel

Processing Type Forging

Use Well Drilling

Specifications

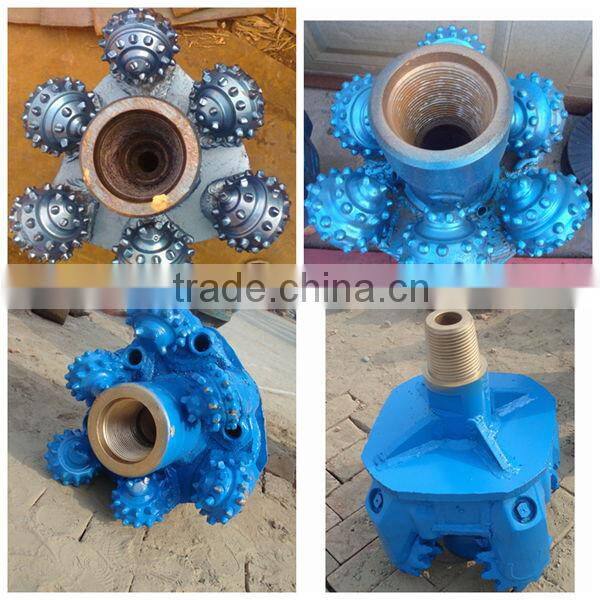

Reamer bit
1.free size and specification
2.High quality&Long working life
3.Timely delivery&Favorable price

Product Description

Product Application

Rock formation		Bit type	Bit size		Drilling weight	Rotary speed
Rock formation		Bit type	mm	inch	kN/mm	r/min
Very soft	Soft Marl, Clays, Sands, Salts etc.	1	187.3~346.1	7 3/8~13 5/8	441~735	120~50
soft	Clays, Soft Shale, Marl, Sands, Salts etc.	2	95.2~174.6	3 3/4-6 7/8	245-490	100-50
soft	Clays, Soft Shale, Marl, Sands, Salts etc.	2	187.3~346.1	7 3/8-13 5/8	490-784	90-40
Medium soft	Shale, Marl, Sandstone, Soft Limestone etc.	3	95.2~174.6	3 3/4-6 7/8	245-490	80-40
Medium soft	Shale, Marl, Sandstone, Soft Limestone etc.	3	187.3~311.1	7 3/8- 12 1/4	490-784	80-40
medium	Hard Shale, Limestone, Medium/Hard Sandstone etc.	4	95.2~174.6	3 3/4-6 7/8	294-539	80-60
medium	Hard Shale, Limestone, Medium/Hard Sandstone etc.	4	187.3~241.3	7 3/8-9 1/2	539-833	60-40
medium hard	Hard Dolomite, Limestone, Hard Sandy, Rock etc.	5	95.2~174.6	3 3/4-6 7/8	294-539	80-60
medium hard	Hard Dolomite, Limestone, Hard Sandy, Rock etc.	5	187.3~241.3	7 3/8-9 1/2	539-833	60-40
hard	Sandy, Shale, Quartzite, Hard Dolomite, Hard Sandstone etc.	6	95.~-174.6	3 3/4-6 7/8	294-539	80-40
hard	Sandy, Shale, Quartzite, Hard Dolomite, Hard Sandstone etc.	6	187.3-215.9	7 3/8-8 1/2	580-882	60-40
Very hard	Quartzite, Chert, Basalt Granites, Pyrites etc.	7	95.2-174.6	3 3/4-6 7/8	294-539	80-40

Product introduction: structure characteristics:

1.Using floating bearing structure, the floating element made of new materials with high strength, high elasticity, high temperature resistance, high wear resistance characteristics and surface bear solid lubricants treatment. While lower side relative linear velocity bearing, reduce the friction surface temperature rise, thus can effectively improve the high pressure or high speed drill bearing life and reliability of bearing hole conditions.

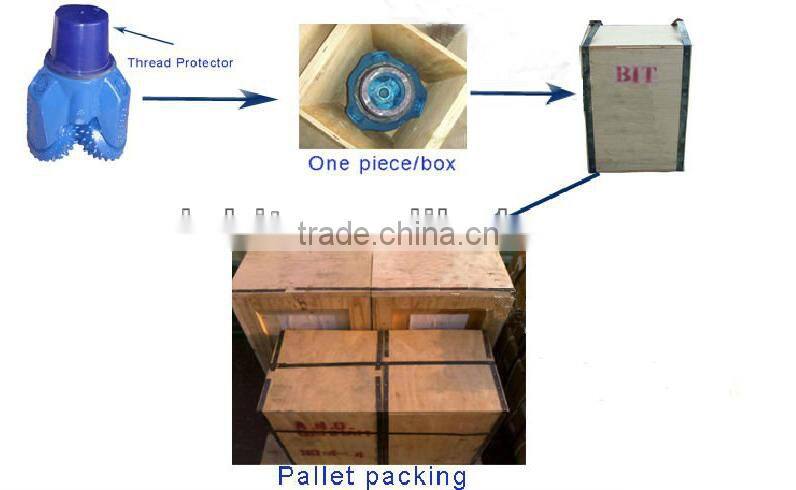

Packaging & Shipping

Panment:T/T

Company Information

About Company

Hebei Guangtong oil drilling Machinery Co., Ltd. is located in China's capital, Beijing.We are a professional supplier of new and used (rebuilt) drill bits used for oil fields and water wells, including tricone bits, PDC bits and drill pipes. Various models and dimensions are available.

Here, our experienced staff to assist you all the options bit, and shipped around the world.

We focus on improving the quality of products at the same time, reduce total cost to satisfy every customer's demand and purchasing target. With many years of experience, products, contact, sustained excellence in customer service and technology, will provide the best quality products and services in the world all customers. To establish a long-term relations of cooperation, the world of the customers is our eternal goal

We also import junk tricone bits and pdc bits. Please feel free to contact us for further communication.

FAQ

FAQ(Frequently Asked Questions)

1.About lead time and transportation?
The lead time depend on the quantity of the order. Usually ship by sea/ocean, small or urgent order we can deliver by air.
According to the distance from china to your port/destination, It takes usually from northern China to European about 30 days to Hamburg 35 days to UK and France, 38 days to Italy. To West of North America is about 20 days, Eastern North America is about 32 days, Eastern Africa is about 30 days, South Africa is 35 days, Western Africa 60 days. To Western South America is about 30 ~ 35 days, to Western South America 40 days. To Australia is about 30 days. To Japan is about 7 days, to East-south Asia is always less than 15 days.

2. Can I expect quality products?

Answer :
Yes. All our activities are certificated by ISO and API, we have many regular customers in many countries and regions who are trading or drilling contractors. We have very good reputation in drilling field.
