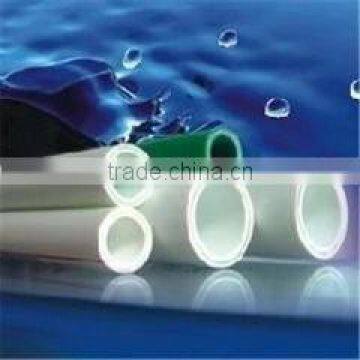

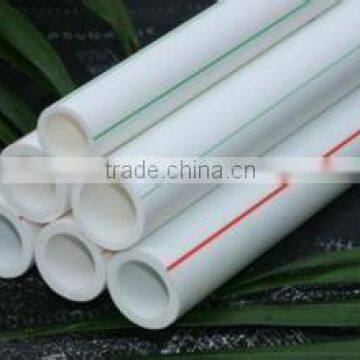

Help CenterHigh Quality PPR Pipes
Related Products
-
2014 China Wholesale Aluminium Plastic TubeUS$ 1.5 - 8.5MOQ: 3000 Meters -
PPR PIPES PPR-C PIPES PP-R PIPES ISO15874 & DIN8077/8US$ 1.2 - 10MOQ: 2000 Meters
-
2015 Hot Sell No. 1 Brand Less Group PPR PipeUS$ 0.5 - 5MOQ: 3000 Meters
-
Adjustable Aluminum Tube/plastic Coated Aluminum PipeUS$ 1.4 - 15MOQ: 3000 Meters
-
PVC DOUBLE-WALL DESIGN OF WATERUS$ 3.5 - 40MOQ: 100 Square Meters
Specifications
1. Material: Random Polypropylene (Type 3)
2.Size: 20MM - 160MM
3.Pressure: 1.0Mpa / 1.25MPa / 1.6MPa / 2.0MPa / 2.5MPa
Material: Random Polypropylene (Type 3)
Size: 20MM - 160MM
Pressure: 1.0Mpa / 1.25MPa / 1.6MPa / 2.0MPa / 2.5MPa
Colors: Green / Grey / White / Other
Connection: Thermofusion
Standard: ISO15874/DIN8077/8078
Applications: Cold or hot water supply, heating system including
flooring heating, wall heating and radiating system, Central air
conditioning system, industrial liquids transportation
Advantages
*High Temperature Resistance: the maximum sustained working
temperature is up to 70 Degrees Celsius, the maximum transient
temperature is up to 95 Degrees Celsius
*Heat Preservation: low thermal conductivity which is only
1/1500 of brass pipe, and 1/250 of steel pipe
*Non-toxic: no heavy metal additives, would not be covered
with dirt or contaminated by bacterium
*Resistant: resist chemical matters or electron chemical corrosion
*Lower Installation Costs: light weight and ease of installation
can reduce costs by as much as 50% over metal piping system
*Higher Flow Capacity: smooth interior walls result in lower
pressure loss and higher volume than metal pipes
*Long Life: more than 50 years under normal conditions
*Recycled and Environment-friendly
| PN10 | PN16 | PN20 | PN25 | ||||
| D | T | D | T | D | T | D | T |
| 20 | 2.0 | 20.0 | 2.3 | 20.0 | 2.8 | 20.0 | 3.4 |
| 25 | 2.3 | 25.0 | 2.8 | 25.0 | 3.5 | 25.0 | 4.2 |
| 32 | 2.9 | 32.0 | 3.6 | 32.0 | 4.4 | 32.0 | 5.4 |
| 40 | 3.7 | 40.0 | 4.5 | 40.0 | 5.5 | 40.0 | 6.7 |
| 50 | 4.6 | 50.0 | 5.6 | 50.0 | 6.9 | 50.0 | 8.3 |
| 63 | 5.8 | 63.0 | 7.1 | 63.0 | 8.6 | 63.0 | 10.5 |
| 75 | 6.8 | 75.0 | 8.4 | 75.0 | 10.1 | 75.0 | 12.5 |
| 90 | 8.2 | 90.0 | 10.1 | 90.0 | 12.3 | 90.0 | 15.0 |
| 110 | 10.0 | 110.0 | 12.3 | 110.0 | 15.1 | 110.0 | 18.3 |
| 160 | 14.6 | 160.0 | 17.9 | 160.0 | 21.9 | 160.0 | 26.6 |
Shan metal pipes
*Long Life: more than 50 years under normal conditions
*Recycled and Environment-friendly
