Portable IGBT Inverter TIG Welding Machine TIG Welder TIG-160
Top Features:
1. Advanced IGBT Inverter Technolog and Imported IGBT Components;
2. High-frequency TIG starting makes it easy to establish an arc under a variety of conditions;
3. Smooth arc - Makes it easy to weld;
4. Small, light and easy to use;
5. TIG Welding Performance over a wide range of material thicknesses ;
6. It can work on many different materials of metal such as stainless steel, carbon steel, alloy steel, cooper, silver, titanium and so on.
Specifications: Portable IGBT Inverter TIG Welding Machine TIG Welder TIG-160
Model No. |
TIG-160 |
Power voltage (V) |
AC 220V 50/60Hz |
Rated input power (KVA) |
10 KVA |
Rated welding current (A) |
160 A |
Output current (A) |
10-160 A |
No-load voltage (V) |
65 V |
Rated duty cycle (%) |
40% |
Insulation class |
F |
Cooling way |
Air-cooled |
Size: L*W*H (MM) |
375×155×232 MM |
Weight (KGS) |
9 KGS |
Quality control start from every components!

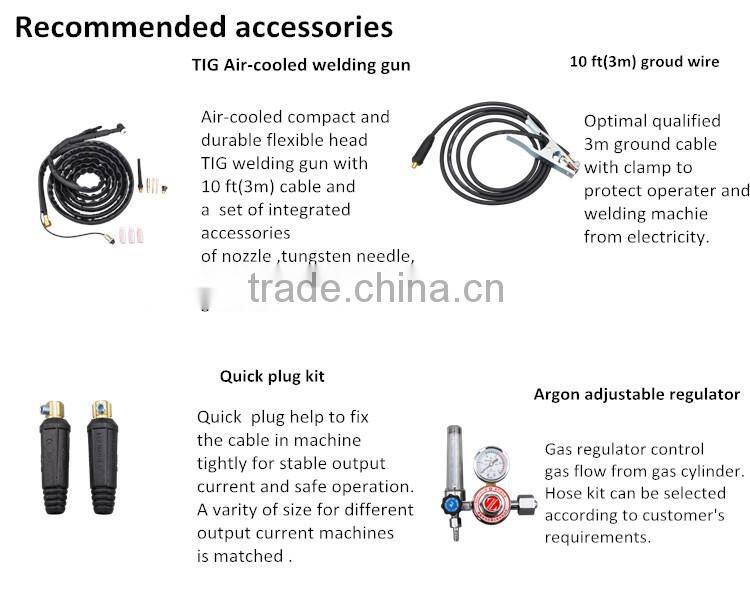

Standard Accessories: Welding gun, Ground wire(3m), 1 quick plug.
Optional accessories:

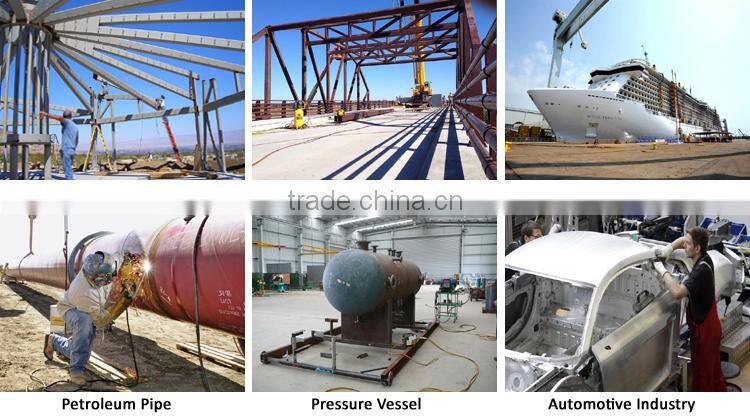

Application industries: Suit for welding all kinds of basic welding rod
Portable IGBT Inverter TIG Welding Machine TIG Welder TIG-160 use strong carton with foam packing. Pallet packing is available.
1. Warranty: Free 1 year warranty for all EXPERT welding machine;
2. Quick response: Experianced professional sales support in-24hours response for your questions and product inquiry;
3. Spare parts: 1 set of free spare parts(in our standards) will be provided for replacement for every 20pcs machines;
4. Technical Support online: Maintenance manual or video service, We provide online support according to your picture or video feedback. Customized after-sales service according to different conditions;
5. Training: Free onsite Product training is available at our factory if client request.
Factory and Workshop
Production process
Welding effect picture
Why choose EXPERT brand welding machine?
1. We are PROFESSIONAL welding machine MANUFACTURER, so we can offer better price and shorter delivery date;
2. We use IMPORTED COMPONENTS for mostly of our welders, so it can provide an realiable quality with our TECHNOLOGY and INNOVATION;
3. We adopt IGBT Technology to decrease failure rate and it is convenient to repair the machine and reduce the cost of repairing;
4. We can provide customer with the High Quality and Perfect Service.
Wish to cooperate with you and your company very soon!
