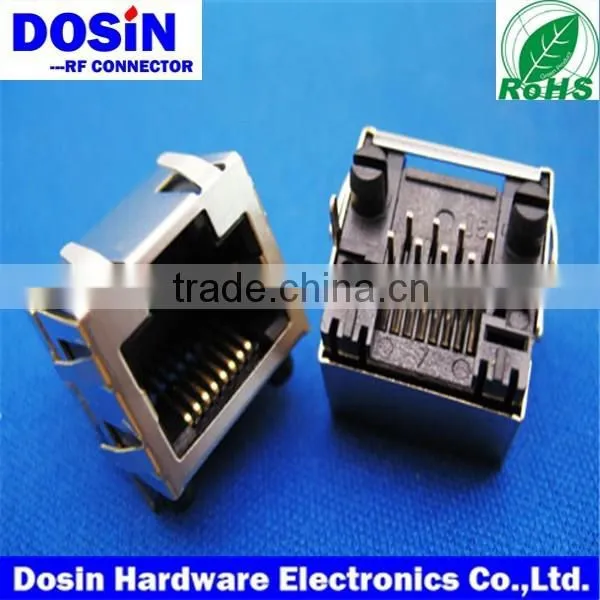

Help CenterRJ45 Connectors, Network Plug PCB Mount 8p8c Connector for Modular Jack
Related Products
-
Professional RJ45 Connectors, Network RJ45 Plug for PCB Mount Connector, 8p8c Modular JackUS$ 0.3 - 1MOQ: 500 Pieces -
Best Price RJ45 Connectors, Network PCB Mount Keystone Connector for Modular JackUS$ 0.3 - 1MOQ: 500 Pieces
-
RJ45 Unshielded Connectors, RJ45 Jack Pcb Mount 8p8c ConnectorUS$ 0.3 - 1MOQ: 500 Pieces
-
China Made RJ45 Connectors, Side Entry RJ45 Pcb Mount Jack Connector, 8p8c Modlar PlugUS$ 0.3 - 1MOQ: 500 Pieces
-
Side Entry RJ45 Connectors, Network RJ45 Plug Connector for Pcb Mount , Modular JackUS$ 0.3 - 1MOQ: 500 Pieces
Connector Type | RJ45 |
Number of Ports | 12 |
Number of Rows | 2 |
Applications | 10/100/1000 Base-T |
Mounting Type | Through Hole |
Orientation | 90° Angle (Right) |
Termination | Solder |
LED Color | Green - Green |
Number of Cores per Jack | 8 |
Shielding | Shielded, EMI Finger |
Features | Board Guide |
Tab Direction | Up and Down |
Contact Finish | Gold |
Shield Material | Copper Alloy |
Housing Material | Polybutylene Terephthalate (PBT) |
| Connector Type | 6 8 Pin Shield Unshield LED Female RJ45 Connector |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Shield | 0.20~0.25mm thickness brass with tin plated |
| Contact Material | Copper Alloy |
| Contact Finish Thickness | flash |
| Housing Material | Thermoplastic |
| Temperature | -30-70°C | Withstand Voltage | AC1000V(50Hz)/min |
| Rated voltage: | 125VAC | Actuating Force | 5~15N |
| Contact Resistance | ≤0.03Ω | Life | 750 times |
| Insulation Resistance | ≥1000MΩ | |
Note: We can provide other materials and plating specifications according to customers′requirements
1: Broadest product Stocked selection:150,000 plus, There are new products added every day.
2: Good quality :80% of products have UL CE ROHS certificate. ISO9001:2008.
3: Low price: we can help you reduce purchase 15% cost in the future 3 month.
4: Delivery time 2~15 days, On-Time delivery.
5: Help customers find the non-standard products.
6: OEM/ODM services.
7: Free samples will be sent for your evaluation.
8: DOSIN experienced overseas sales team, They have professional product knowledge and enthusiastic service
9: 7 years' industry experience with over $10 million in annual exports.
10: RENHOTEC Corporation of DOSIN is one of the fastest growing distributors of electronic components in the world.
