IGBT MMA 200 welder arc welding machine
- 10000 Set / Sets per Month
- Shanghai Chongqing Guangzhou Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Sichuan, China | Brand Name: | EP welding |
Model Number: | EP ARC-2000 | Arc Current: | 10-200 | Pulse Frequency: | no |
Pilot Arc Current: | 10-200 | Rated Duty Cycle: | 60% | Motor Type: | DC Motor |
Dimensions: | 330*132*270mm | Usage: | welding stainless steel, alloy and so on | Voltage: | 220V±10% |
Power(W): | 7.2KVA | Certification: | CCC CE ISO90001 | Warranty: | One Year |
After-sales Service Provided: | Overseas third-party support available |
Product Description

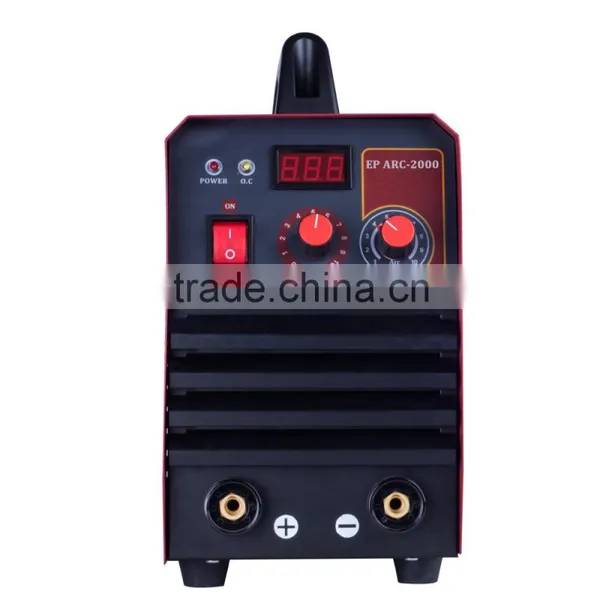

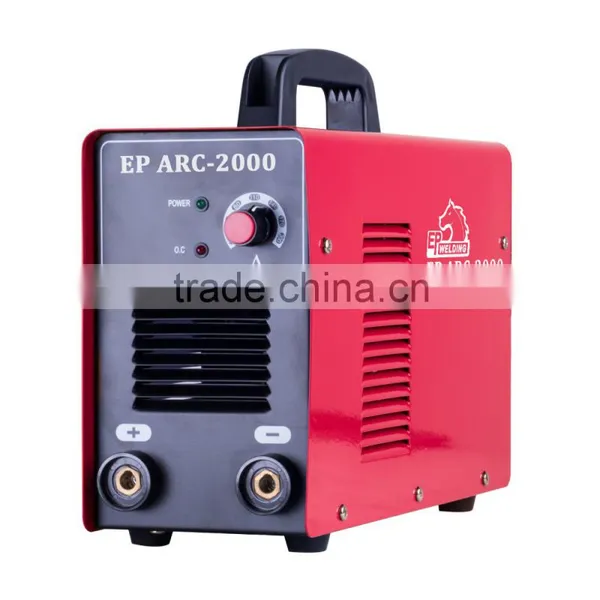

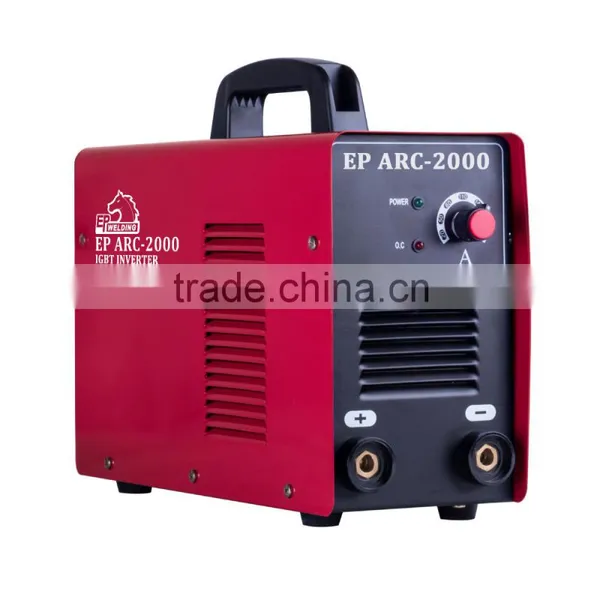

IGBT MMA 200 welder arc welding machine
1.High duty cycle 60% which can nearly satisfy the welder work intensity.
2.Compact and portable are applicable to the spring loaded ,repair or field
operation .
3.Excellent arc properties and solution droplet transfer.
4.Overheating protection function.
5. Power network compensation capacity of not less than ±15%, with the decrease
of welding current and the increase of compensation capacity.Strong anti-interference
capability of Control system.Less than 1ms to respond to the changesof power network,workpiece,electrode and maintain the stable current output.
6. Convenient connection function.All the connectors in the form of external
connection with the advantages of quickness,safety,simplicity,stability.
Specification
Model | ARC1200 | ARC1400 | ARC1600 | ARC1800 | ARC2000 |
Input Voltage(V) | AC230V,50HZ | ||||
Rated input current(A) | 18 | 20 | 22 | 24 | 26 |
Maximum input current(A) | 26 | 32 | 36 | 40 | 43 |
No load output voltage(V) | 85 | 85 | 85 | 85 | 85 |
Output voltage with load(V) | 20.4-24.8 | 20.4-25.6 | 20.4-26.4 | 20.4-27.2 | 20.4-28 |
Current Range(A) | 10-120A | 10-140A | 10-160A | 10-180A | 10-200A |
N W., kg | 3.5 | 4.5 | 5.0 | 5.5 | 6.0 |
Duty cycle | 35% | 35% | 35% | 35% | 35% |
Insulation class | H | H | H | H | H |
Accessories included | Complete accessories per piece: welding holder with cable and (+) quick plug,earth clamp with cable and (-) quick plug,brochure, carton | ||||
Useable electrodes | 1.6-3.2mm | 1.6-3.2mm | 1.6-4mm | 1.6-4mm | 1.6-5mm |
Standard
A. Quick plug 2 pcs
B. Earth Clamp 2m, 16mm ² 300A
C. Electrode Holder 3m, 16mm ², 200A
1. Packing : One pc arc 200 welder in one colorful carton with foam.
2. Shipping: One 20' container load about 700 pcs dc inverter arc/mma Welding machine
