PL-259 Cables Uhf Connector Male and Female Plugs
US$ 2 - 3
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DOSIN
Model Number:
dosin-pl 259
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen or hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF CABLE PL259 UHF CONNECTOR 50 OHM FACTORYUS$ 2 - 3MOQ: 500 Pieces -
PL-259 for RG-214 Coaxial CablesUS$ 2 - 3MOQ: 500 Pieces
-
RF Cable Assembly IPEX / U.fl to RP-SMA Female Connector Pigtail Cable IPEX1.13US$ 0.4 - 0.8MOQ: 500 Pieces
-
RF Pigtail Coaxial Cable RP SMA Female to IPEX/U.FL 0.81mm 1.13mm 1.32mm 1.37mmUS$ 0.4 - 0.8MOQ: 500 Pieces
-
Ipex U.fl Connector Mini 0.81mm 1.13mm 1.32mm 1.37mm rf Pigtail CablesUS$ 0.4 - 0.8MOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
DOSIN
Model Number
dosin-pl 259
Usage
Multifunctional
Specifications

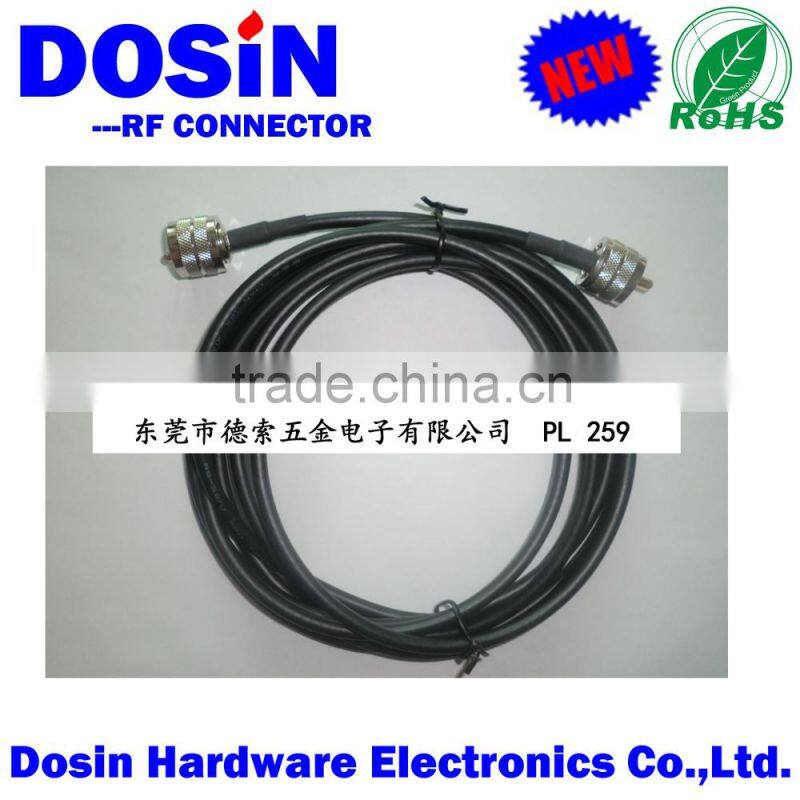

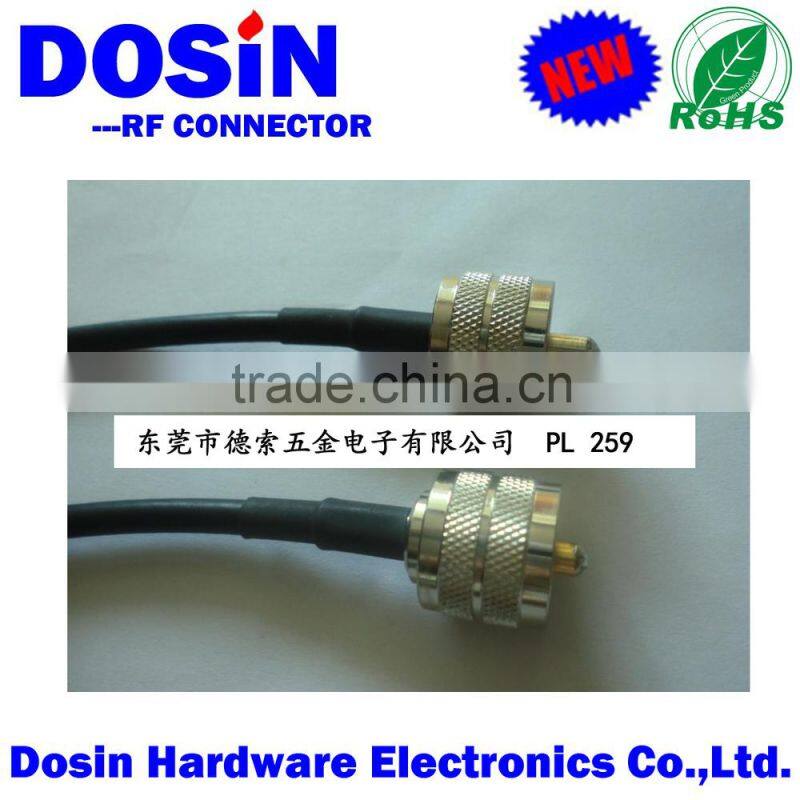

PL-259 cable1. brass uhf connector
2. the cable rg6 lmr 195
3.the cables low vsws
4. good price, ROHS
Hot sell PL259 connetors for electronic:
The development of type N connector by the Unite States Army/Navy ran directly parallel to the escalation of U.S. involvement in WWII.It was finally released in 1942.shortly after the U.S. officially entered the war,and since that time it has been a staple in RF and microwave applications all over the world.Due to N type connectors joins by one whorl,it has the characteristic of reliable and strong anti-vibration nature.Machinery and electric performance finaly.it is used in vibratioin and environment aborninable radio equipment of terms and instrument and ground launch system join the coaxial cable of the radio frequency extensively.
PL259 Connector Applications:
| Antennas | Base stations | Broadcast |
| Cable assemblies | Cellular | Components |
| Instrumentation | Microwave Radio | Mil-Aero |
| PCS | Radar | Radios |
| Satcom | Surge Protection | WLAN |
PL259 Connector Features and Benefits:
| Accommodates a wide range of medium to miniature-sized RG coaxial cables in a rugged medium-sized design |
| Broad line of Military (M39012), Industrial (UG) and Commercial (RFX) grade products available, giving customers choices in weighing cost versus performance benefits |
| Meets many customer application demands with plug styles available in straight and right angle and jack styles available in panel mount, bulkhead mount, and receptacle |
PL259 Connector 50 Ω Specifications:
| Electrical | |
| Impedance | 50 Ω |
| Frequency Range | 0 - 11 GHz |
| Voltage Rating | 1,500 volts peak |
| VSWR | MIL-C-39012 straight connectors: 1.3 max 0-11 GHz MIL-C-39012 right angle connectors: 1.35 max 0-11 GHz |
| Dielectric Withstanding Voltage | 2,500 volts rms |
| Insulation Resistance | 5,000 MΩ minimum |
| Center Contact Resistance | 1.0 mΩ |
| Outer Contact Resistance | 0.2 mΩ |
| RF Leakage | -90 dB minimum at 3 GHz |
| Insertion Loss | .15 dB maximum at 10 GHz |
| Mechanical | |
| Mating | 5/8-24 threaded coupling |
| Braid or Jacket Cable Affixment | All crimps: hex braid crimp Clamps: screw-thread nut and braid clamp |
| Center Conductor Cable Affixment | Crimp: crimp or solder All others: solder only |
| Captivated Contact | All crimps unless specified otherwise |
| Cable Retention | Crimps: 60-120 lbs Clamps: 30-70 lbs |
| Material | |
| Male Contacts | Brass, silver or gold plated |
| Female Contacts | Phosphorous bronze or beryllium copper, silver or gold plated |
| Other Metal Parts | Brass with ASTROplate® finish; M39012 has silver finish |
| Insulators | TFE, copolymer of styrene or glass-TFE (hermetic seal) |
| Weatherproof Gaskets | Silicone rubber of synthetic rubber |
| Crimp Ferrule | Copper |
| Environmental | |
| Temperature Range | TFE: -65°C to +165°C |
| Weatherproof | All series N with gaskets are weatherproof |
| Hermetic Seals | Pass helium leak test of 2x10-8 cc/sec |
| Pressurized Shock | Compression seal MIL-STD-202, method 213 |
| Vibration | MIL-STD-202, method 204, test condition B |
| Moisture Resistance | MIL-STD-202, method 106 |
| Corrosion | MIL-STD-202, method 101, test condition B |
| Temperature Cycling | MIL-STD-202, method 102, test condition C |
| Altitude | MIL-STD-202, method 105, test condition C |
| Military | |
| MIL-C-39012 MIL-A-55339 |
Where applicable |
Quality: Quality is the most important thing in our company.We use only the best quality(original) components to ensure the standard of our product range is of the highest caliber.All products we sold out are strictly selected and tested by our QC department.
Warranty: We provide comprehensive after-sales service,including quality service,guidance services,We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Payment: We accept payment via TT,Western Union, Paypal and so on.
Shipping: We offer as many shipping options as possible.including DHL,UPS.TNT,Fedex and EMS.
